12

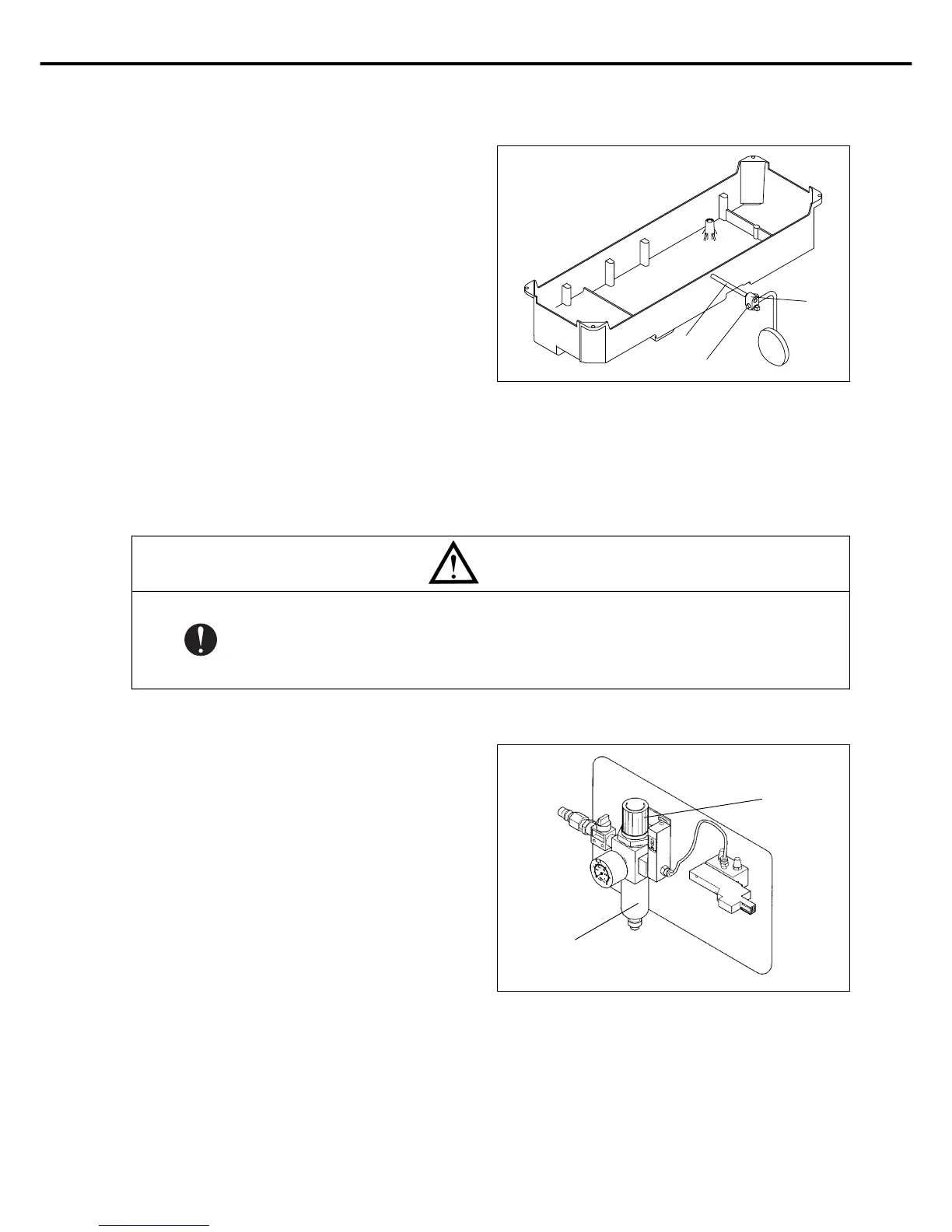

8) Installation of knee lifting pad
A. Find the lap lifting pad (ass'y) ① in the accessory box
and insert it into the shaft of the oil pan's control body
②.
B. Loosen bolt ③ and maintain knee-lifting pad in vertical
position to tighten it.
[Figure 8]
9) Installation of air pressure related parts and checking their functions (optional)
(1) Installation
As shown in the figure, after fixing the air pressure filter
on the bracket, use the neck screw to fix the bracket on
the lower side of the table.
(2) Air pressure adjustment
a) Adjust the pressure by taking out and lifting the air
pressure filter① knob ② .
b) After adjusting the air pressure to. 0.49㎫(5㎏f/㎠)
turn the knob ② to its original position and the
adjustment is over.
[Figure 9]
①
②
Caution
▶In need of regulating the machine with the switch on or with the air injected, please pay special
attention to your safety.
▶Please adjust air pressure to 0.5Mpa.
①
②
③
