1) Inserting the needle

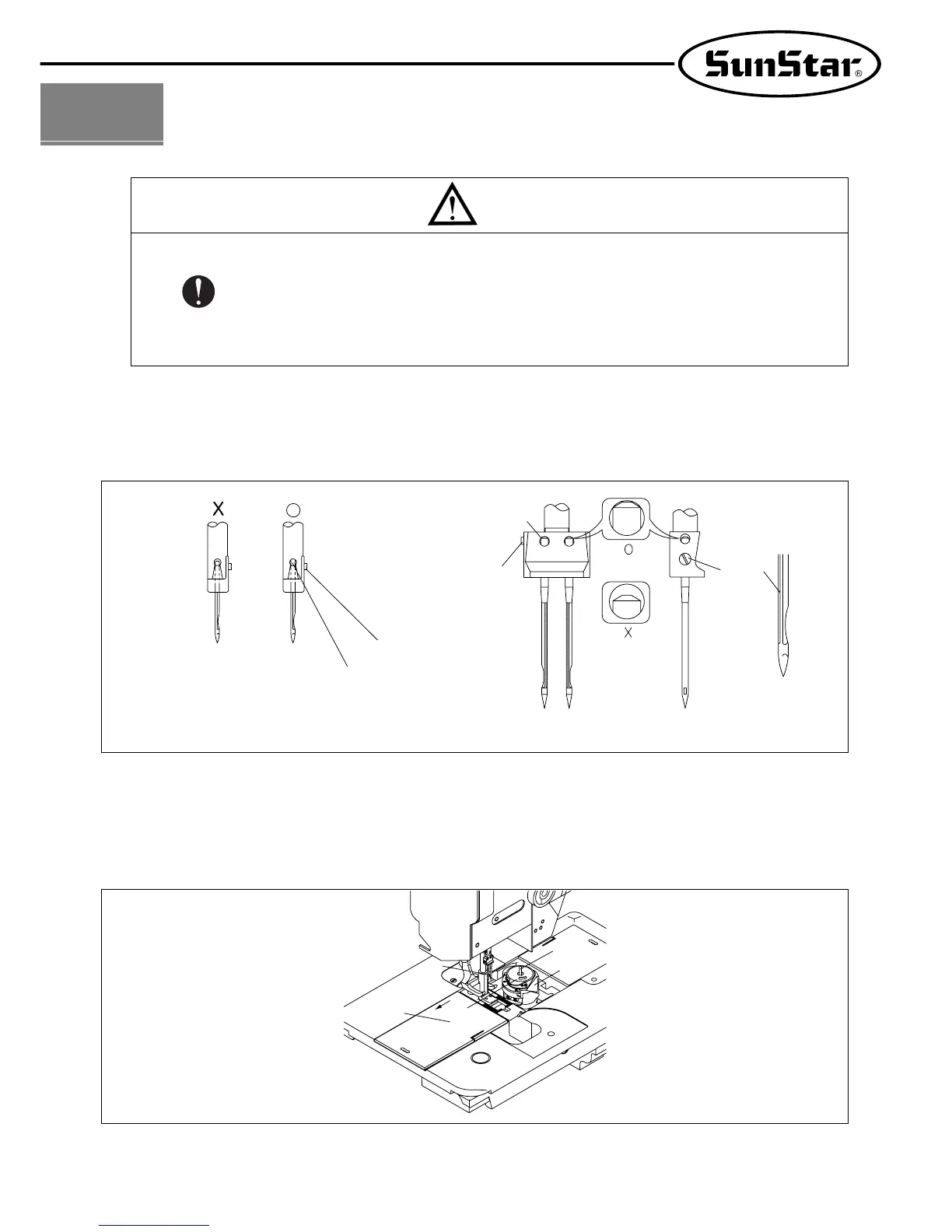

As in Figure 10, while the needle groove① is headed inward, place the upper end of the needle to closely contact the upper
stopper hole②, and then fix the needle by using the fixing screw③.
2) Removing bobbin
Place the needle ① in the highest position.
As in Figure 11, open the sliding plate② and erect the hook③ and the bobbin holder④ to separate the bobbin⑤ (see Figure
11).
3
Adjustment of the Machine
[Figure 11]
[Figure 10]
Caution
▶In case of setting the needle, be sure to switch off the power supply. In case the user press on the
step by mistake, the machine runs automatically. By doing so, it can cause the physical injuries.
▶In case of using the clutch motor, the motor revolves because of inertia for a while even after switching
off the power supply. Be sure to start to work only after the motor comes to a complete stop.
[ KM-570 BL ][ KM-572 BL ]
②
②
③
③
①
③
④
③
①
②
⑤
