12 • Questions? Call or Text +1-801-658-0015
Zapp
™
User Manual

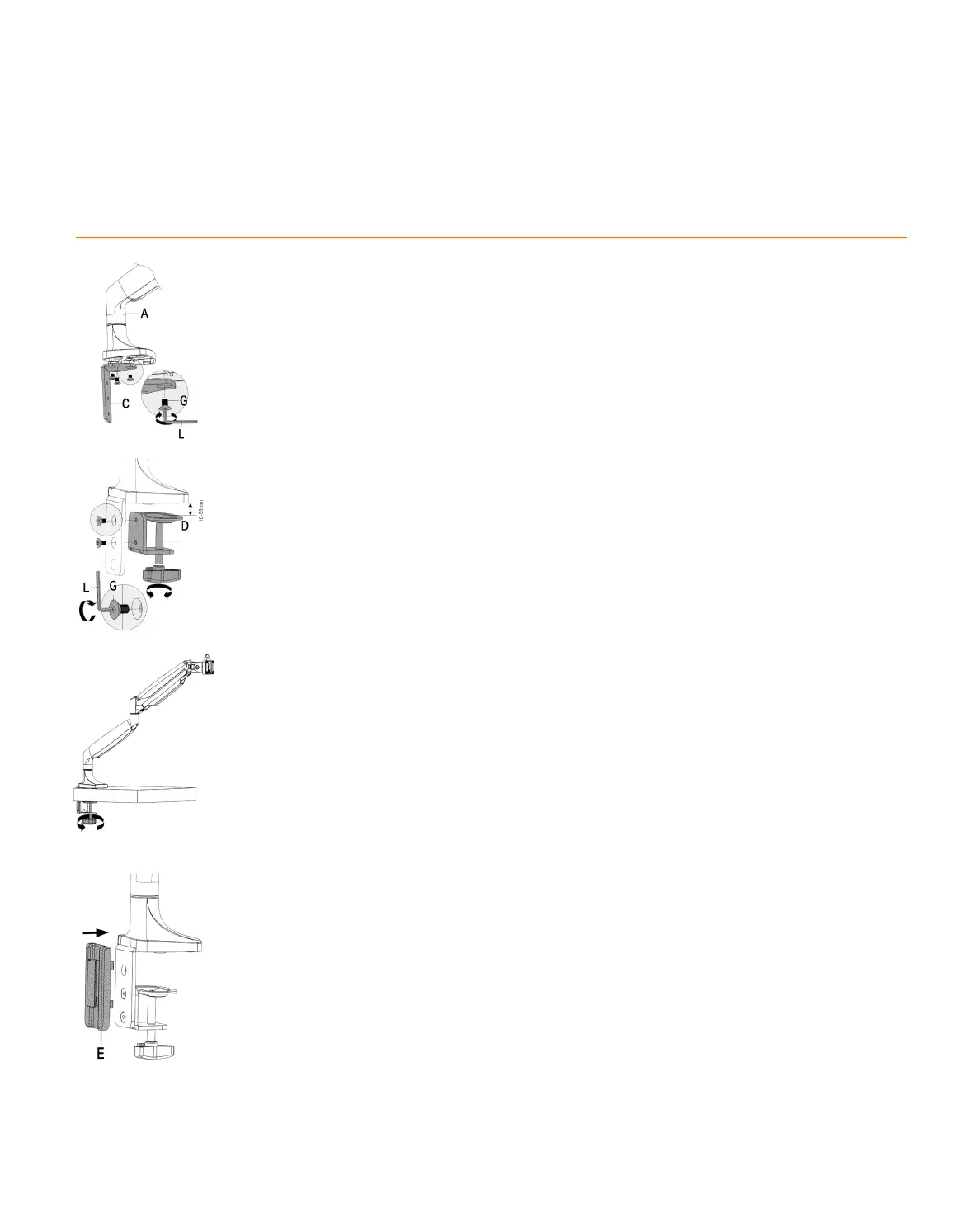

Figure 12.1. Attach Angled
Bracket (C) to Microscope
Arm Assembly (A).
Figure 12.2. Attach Clamp
Mechanism (D) to Angled
Bracket (C).
Figure 12.3.
Figure 12.4. Place the cable
guide cover onto the angled
bracket.
Microscope Arm Mounting Options
If you purchased the Zapp Plus with an arm-mounted
microscope, carefully follow these instructions.
Mounting Option 1 - Clamp to Table
This option is best for tables with accessible edges and
for mounting without drilling holes in the table.
Hardware required from Box 2:
(1) Angled Bracket (C)
(1) Sunstone Microscope Arm Assembly (A)
(1) Clamp Mechanism (D)
(5) Flat Head Hex Screws (G)
•
• As shown in Figure 12.1, attach the Angled
Bracket (C) to the bottom of the Microscope
Arm Assembly using three (3) of the included
Allen wrench (L).
• Attach the Clamp Mechanism (D) to the Angled
head hex screws. See Figure 12.2. For thicker
tables, attach the clamp mechanism (D) to the
two lower holes in the Angled Bracket (C).
• Adjust the knob on the Clamp Mechanism (D)
your tabletop.
• Lift the Microscope Arm Assembly (A) up, slide
the arm onto the table as shown in Figure 12.3.
• Lock the arm into place by turning the knob
on the Clamp Mechanism (D) until the clamp is
Appendix B
