WELD MODES 1
30 J
1-30 J
ENERGY SETTINGS 8
WELDS/SECOND 1
WELD SPOT DIAMETER 0.5 - 2.0mm
INPUT POWER 100/230 VAC (Auto Detect)
14.60 x 17 x 9.44 cm
WEIGHT 1.9 lbs (0.86kg)
EYE PROTECTION Auto Darkening Lens, Microscope, or Glasses
Download the Safety Guide by scanning this QR code.
Carefully read the Safety Guide & Pulse Arc Welding Workbook to more fully understand the
together with this user manual. If the workbook is missing, call Sunstone for a complimentary
replacement copy at +1 801-658-0015.
• Plug the other end of the Shutter Cable into the
Shutter port on the back of the welder.
Note: Connecting other RJ45 compatible devices to the
Orion PJ shutter RJ45 port may damage the welder and/or
the other devices.

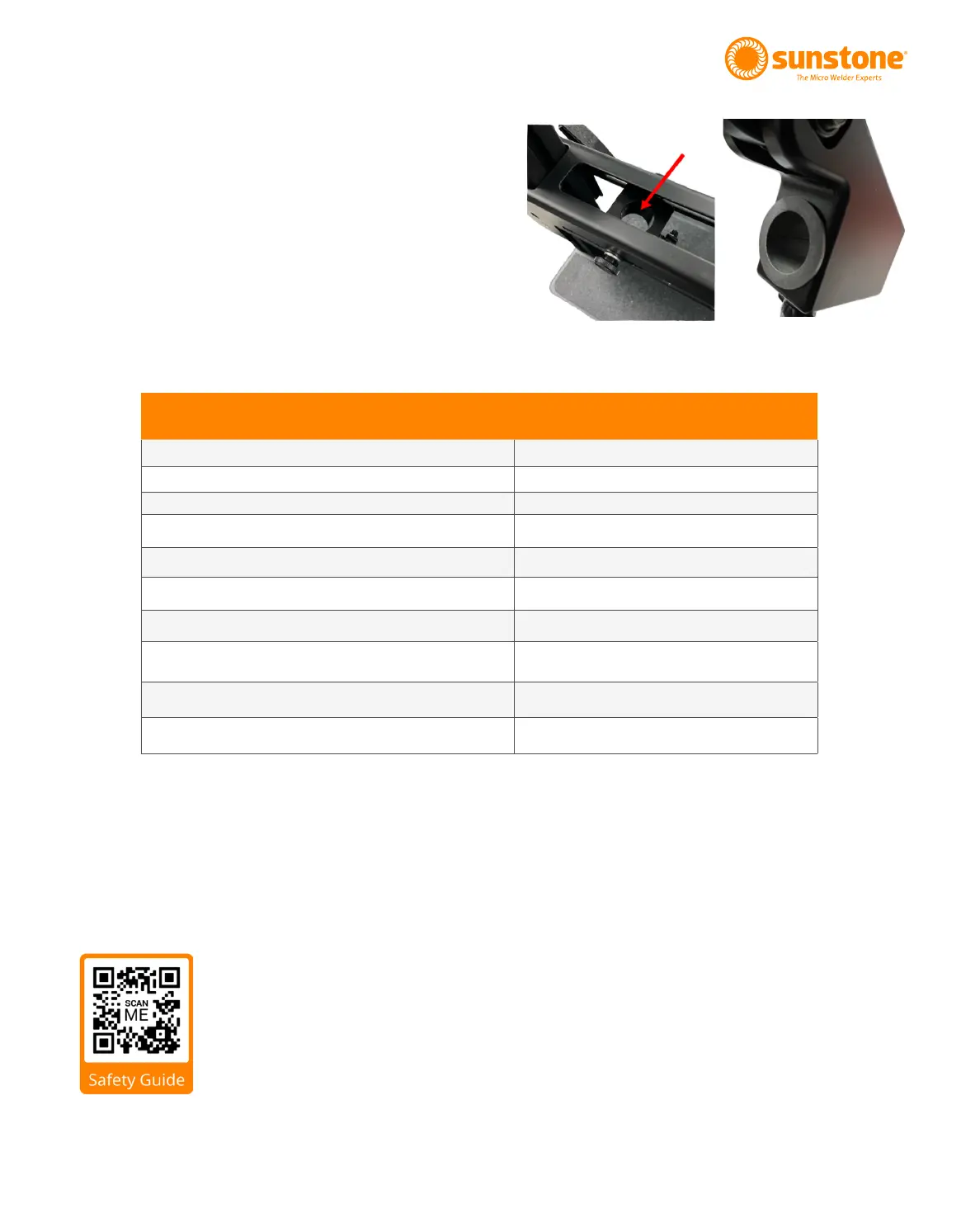

Figure 17.1. Bottom of microscope
head.
Figure 17.2. Grey spacer.
