Please ensure you use suitable protection devices. Switchgear and fuses must be following the local

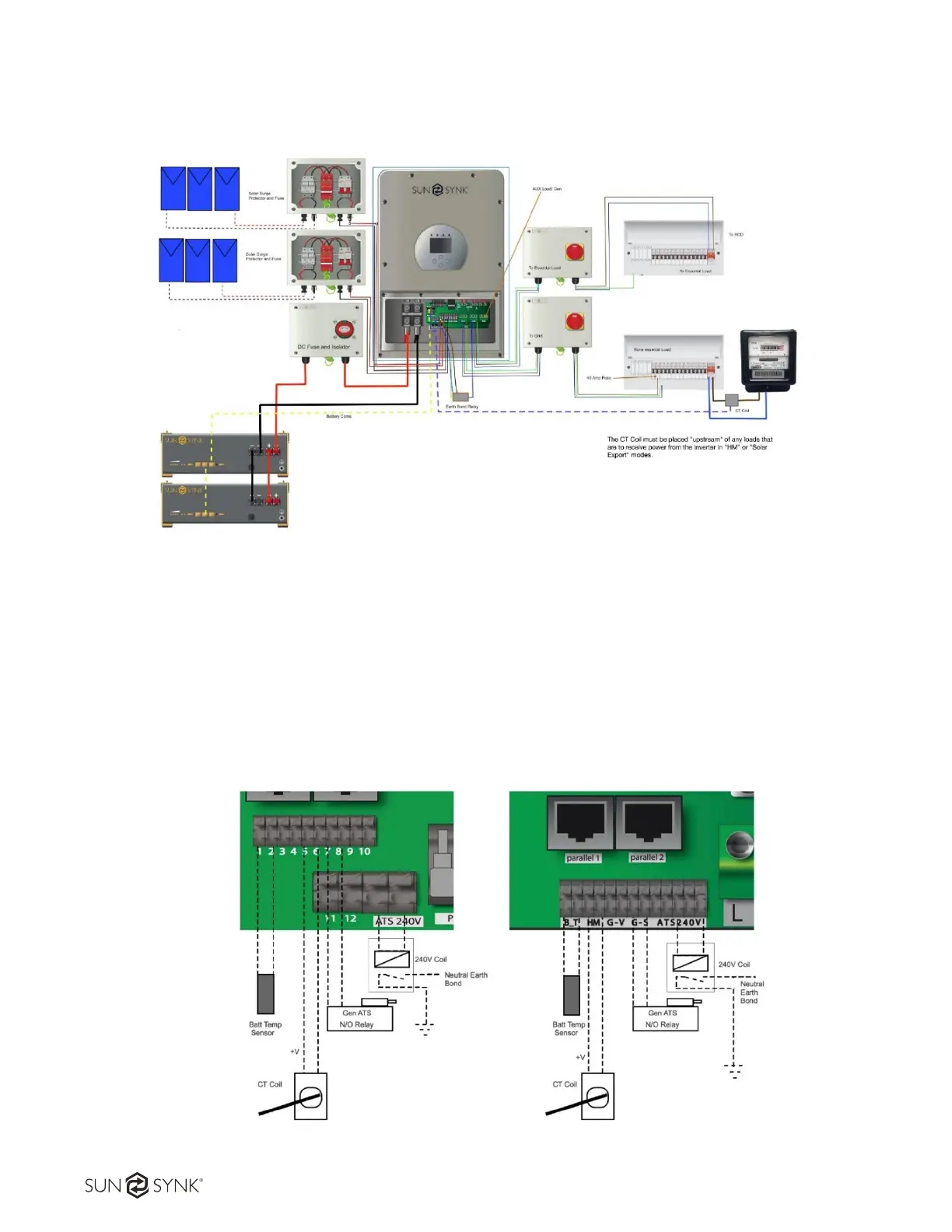

wiring standards. A figure of the complete system is presented bellow.
3.4.1. Installing the CT Coil
The CT coil is one of the most important parts of the Sunsynk Parity inverter. This device reduces the
power of the inverter to prevent feeding power to the grid. This feature is also known as "Zero Export".
Fit the coil (sensor) around the live cable on the main fuse feeding the building and run the cable back
to the inverter. This cable can be extended up to an extra 10m using a similar cable.
Connect the other end of the CT coil into the inverter terminals marked as CT coil
