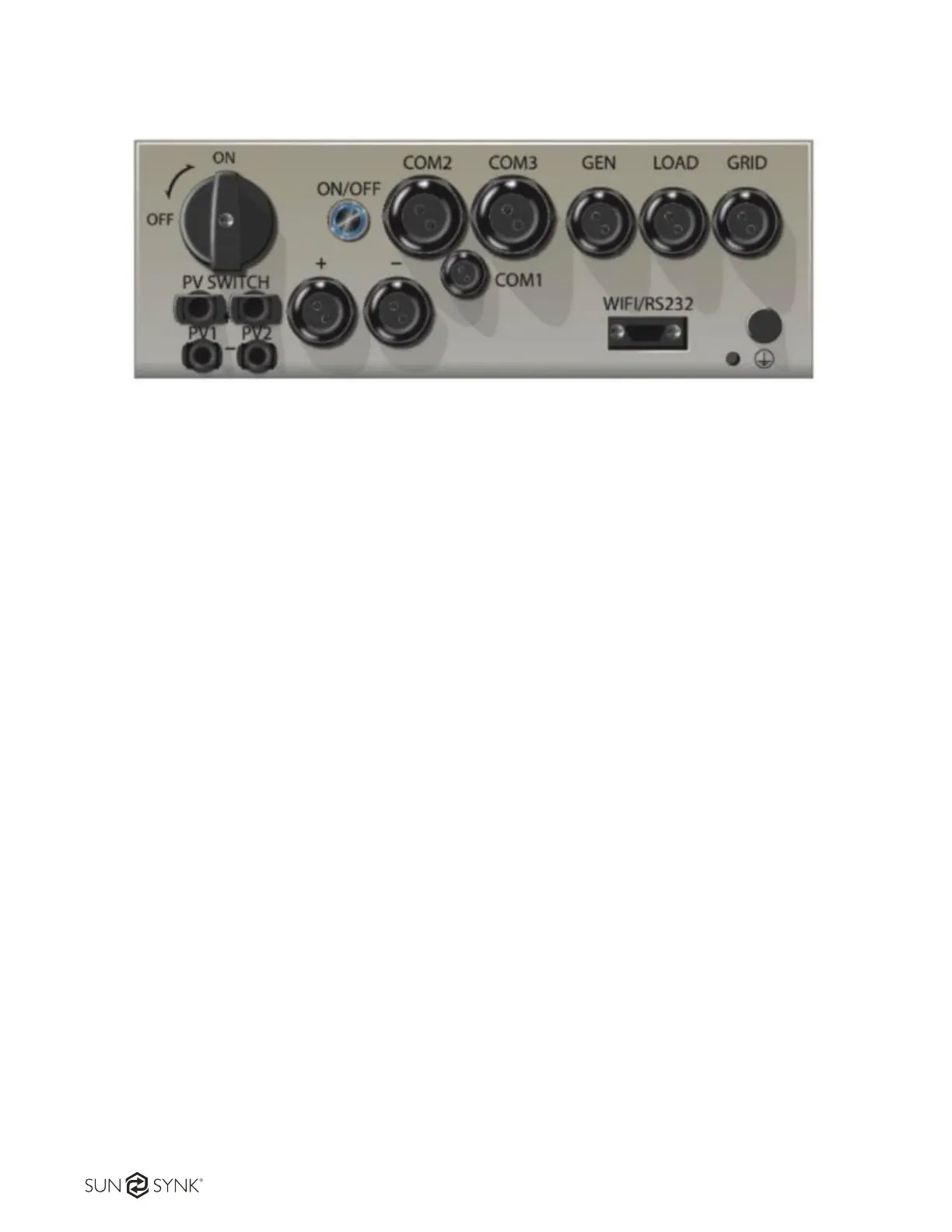

5.5 KW PV panels are connected via the MC4 connectors located at the bottom of the inverter
Before connecting to PV modules, install a separate DC circuit breaker between the inverter and PV
modules.
To avoid any malfunction, do not connect any PV modules with possible current leakage to the inverter.
For example, grounded PV modules will cause current leakage to the inverter. Open-circuit voltage
(Voc) of PV modules does not exceed max. PV array open-circuit voltage open-circuit voltage (Voc)
of PV modules should be higher than min. start voltage.
