2.2. Basic System Architecture

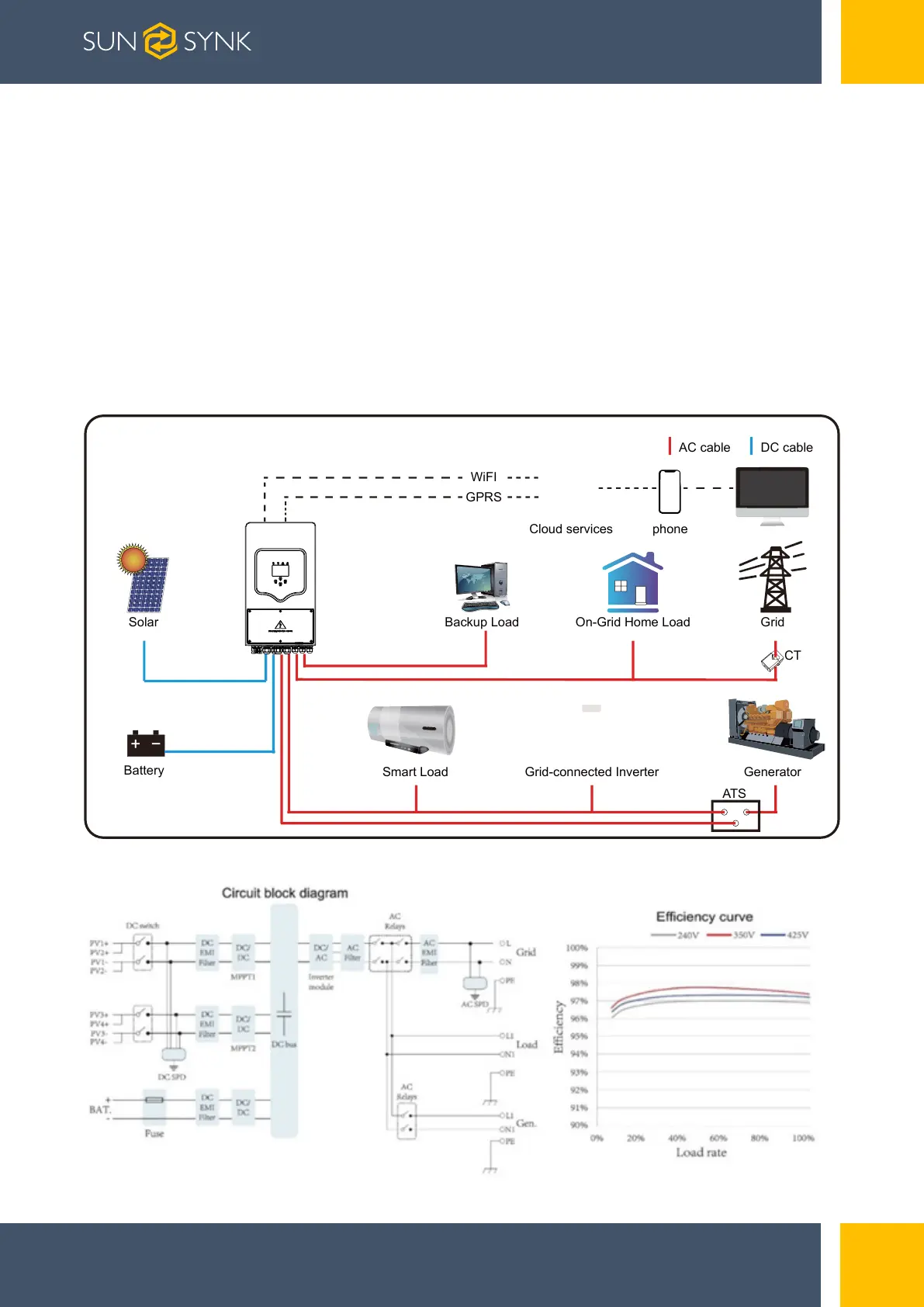

The following illustraton shows basic applicaton of this inverter.
It also includes following devices to have a Complete running system.
Generator or Utlity
PV modules
Consult with your system integrator for other possible system architectures depending on
your requirements.
This inverter can power all kinds of appliances in home or once environment, including mo-
tor type appliances such as refrigerator and air conditioner.
GridBackup Load
WiFI
GPRS
phoneCloud services
On-Grid Home Load
Generator
ATS
Grid-connected InverterSmart Load
Battery
Solar
CT
AC cable DC cable
Page | 10Hybrid Inverter | Installer Manual
