All wiring/connecting must be performed by qualified personnel. Before making
the final DC connection or closing the DC Breaker/disconnection device, ensure
the inverter unit is wired correctly. A reverse-polarity connection on the battery will
damage the inverter.

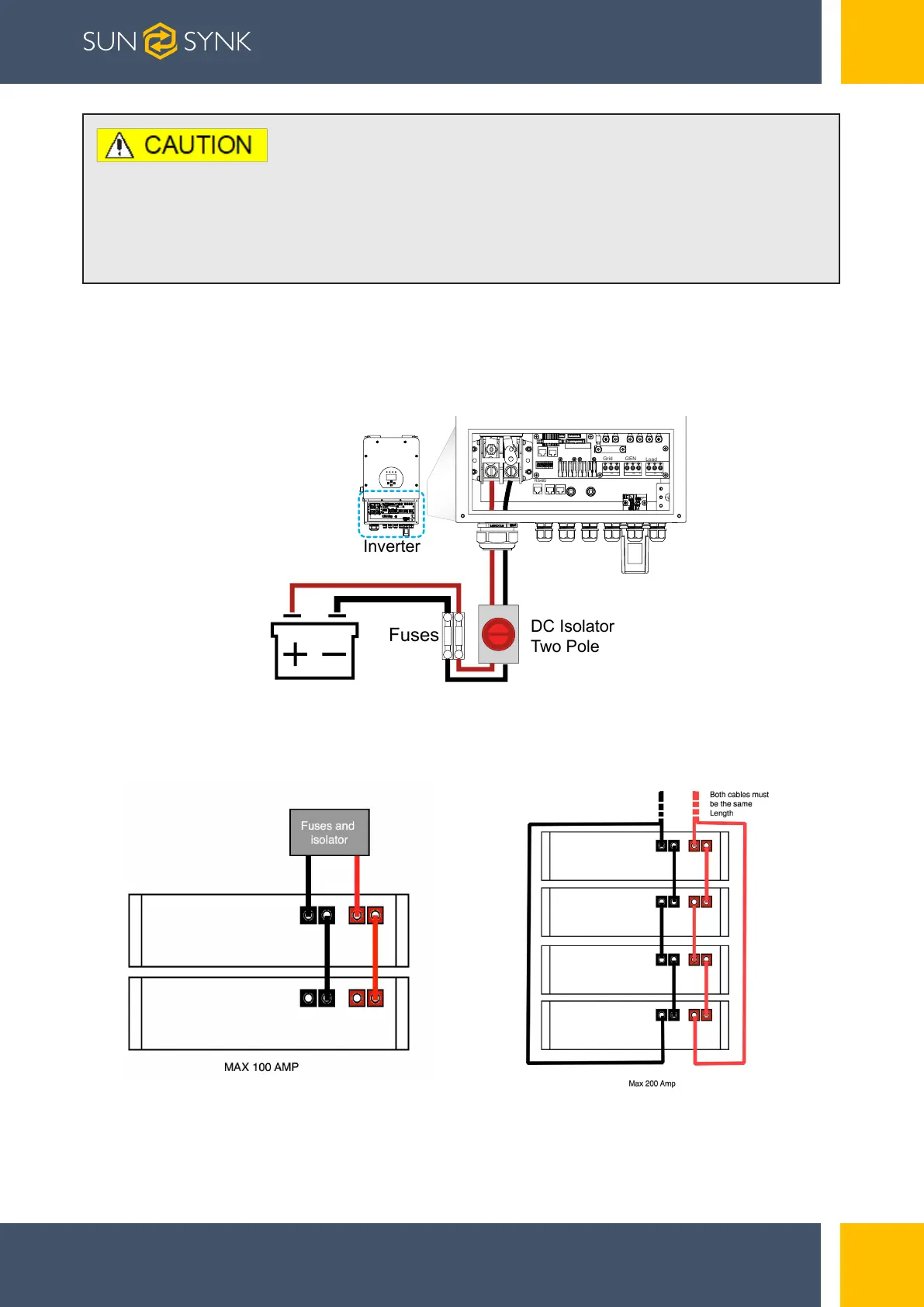

4.6.1. Recommended DC Battery Protection
Page | 18Hybrid Inverter | Installer Manual
Inverter
N L N L N L
Load
GEN
Grid
RS485
DC Isolator
Two Pole
Fuses
To Next Page
