SunTech ST3310 - Event Cable Pinout and Functions

ST3310 User Manual
28

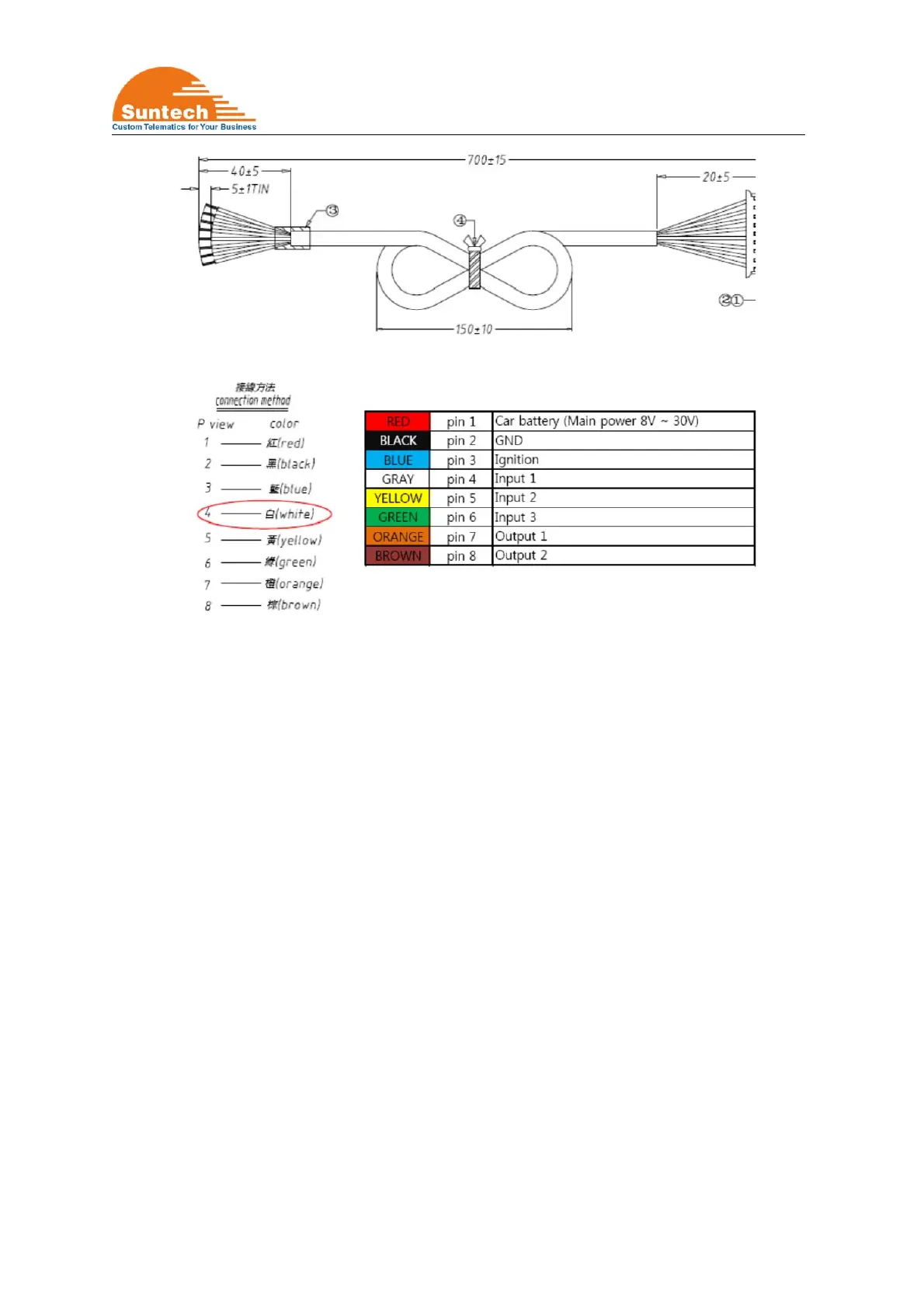

Event Cable Color pin Description
Red: VCC (12V)
Black: Ground
Blue: Ignition (12V)
Connect to Ignition signal line of vehicle.
White: Input1. Panic Button
When Input1 goes to GND, then ST3310 change Emergency mode.
It reports emergency string by mode 1 in Emergency mode such that
SA200EMG;850000;20081017;07:41:56;00100;+37.478519;+126.886819;000.012;000.00;9;1;0;15.30;
110000;1
Yellow: Input2.
When Input2 goes to GND, then ST3310 reports event string such that
SA200EVT;850000;20081017;07:41:56;00100;+37.478519;+126.886819;000.012;000.00;9;1;0;15.30;
001100;3
Green: Input3. Similar as Input2
Orange: Output1.
Brown: Output2.
Function of Outputs is selectable according to OUT_IMMOB and OUT_PULSE parameter in
Service Parameter.
If OUT_IMMOB is “1” and OUT_PULSE is “2” , Outpu1 operates as Immobilizer and Output2
