Supermicro X13SCL-IF User Manual

45
Chapter 2: Installation
DESIGNED IN USA
X13SCL-IF
REV:1.01
BAR CODE
BIOS LICENSE
JL1
JSMB1
JTPM1
I-SATA4
I-SATA5
BT1
JSLIM2
JSLIM1
C262
JPCIE1
JCPLD1
JD1
LED3
LEDM1
JPI2C1
JMD1_SRW1
JPW2
FANA
FAN3
FAN2
FAN1
JF1
JPW1
JMD1
JBT1
JPME2
JNS1
JRF1
JPL1
JPL2
JWD1
JPG1
JVRM1
MH4
MH3
MH2
MH1
JUIDB1
LED1
LED2
PCIe 4.0 x4
PCIe 4.0 x4 / SATA x4
CMOS CLEAR
2-3: NVMe
1-2: SATAJNS1:
LEDPWR
LEDBMC
USB4/5 (3.2(5Gb))
USB2/3 (3.2(5Gb))
COM1
PCIe 4.0 x4
JMD1:M.2-C
VGA
LAN1/2
JL1: CHASSIS INTRUSION
BMC_LAN
USB0/1
:SMBus1
:PWR I2C
1-4:SPEAKER
1-2:ENABLE
2-3:DISABLE
JPL2:LAN2
2-3:DISABLE
1-2:ENABLE
JPL1:LAN1
ON
PWR
RST
JF1:
NIC2
FF OH
X
NIC1
LED PWR
LED HDD
CPU SLOT7 PCIe 5.0 x16 (IN x16)
DIMMA1
DIMMB1
2-3:ME MANUFACTURING MODE
JWD1:WATCH DOG
1-2:RST
2-3:NMI
1-2:ENABLE
2-3:DISABLE
JPG1:VGA
JPME2:
1-2:NORMAL
CPU
JTPM1:TPM/PORT80
BMC
Controller
1

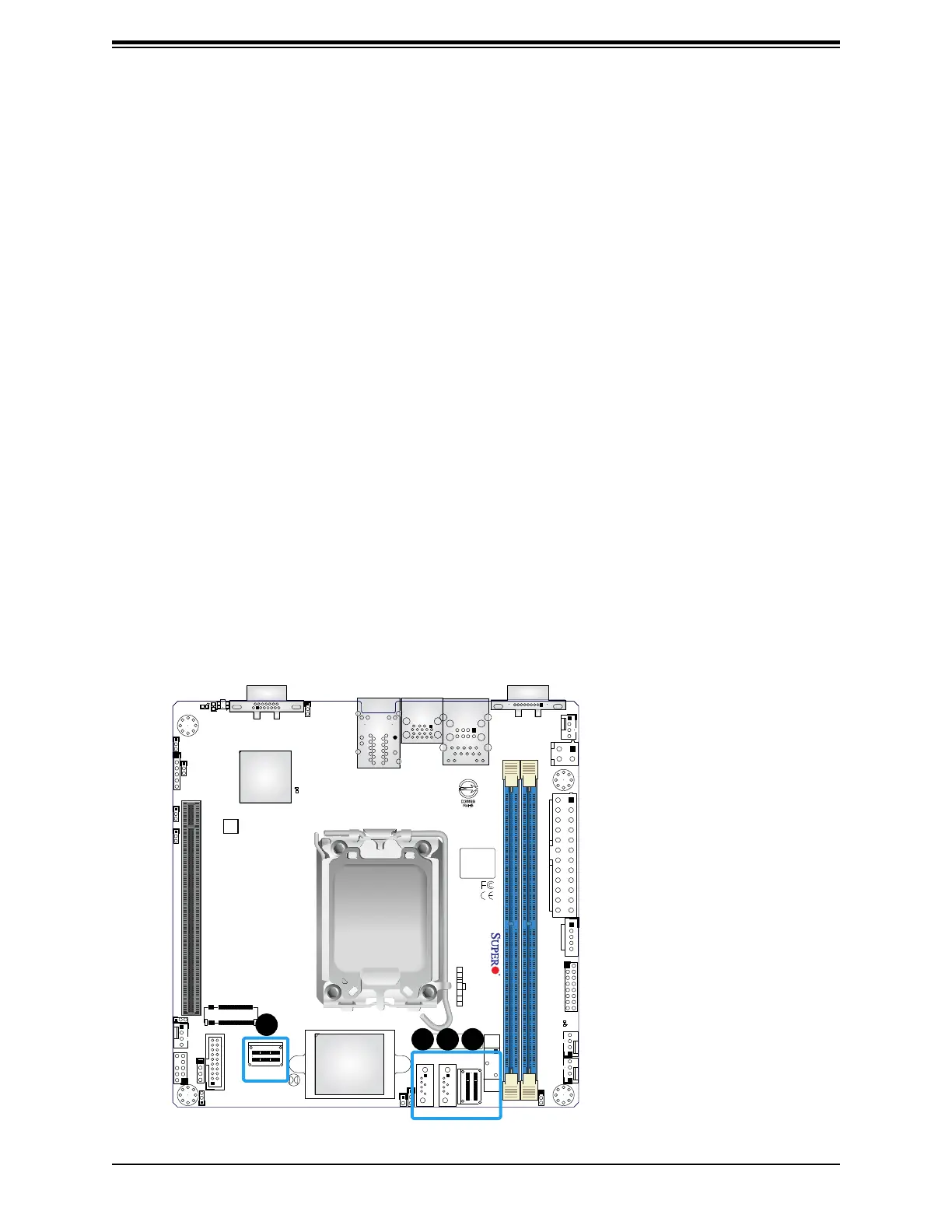

1. JSLIM1
2. JSLIM2
3. I-SATA4
4. I-SATA5
2
3
SATA 3.0 Ports
This motherboard has two SATA 3.0 ports. I-SATA4/5 can be used with Supermicro SuperDOMs
that are yellow SATA DOM connectors with power pins built in and do not require external
power cables. Supermicro SuperDOMs are backwards compatible with regular SATA HDDs
or SATA DOMs that need external power cables.
SlimSAS Connectors
JSLIM1 and JSLIM2 are backplane SlimSAS connectors that support PCIe 4.0 x4 slots.
JSLIM1 supports PCIe 4.0 x4 or SATA x4.
4
