Chapter 2: Installation
2-19

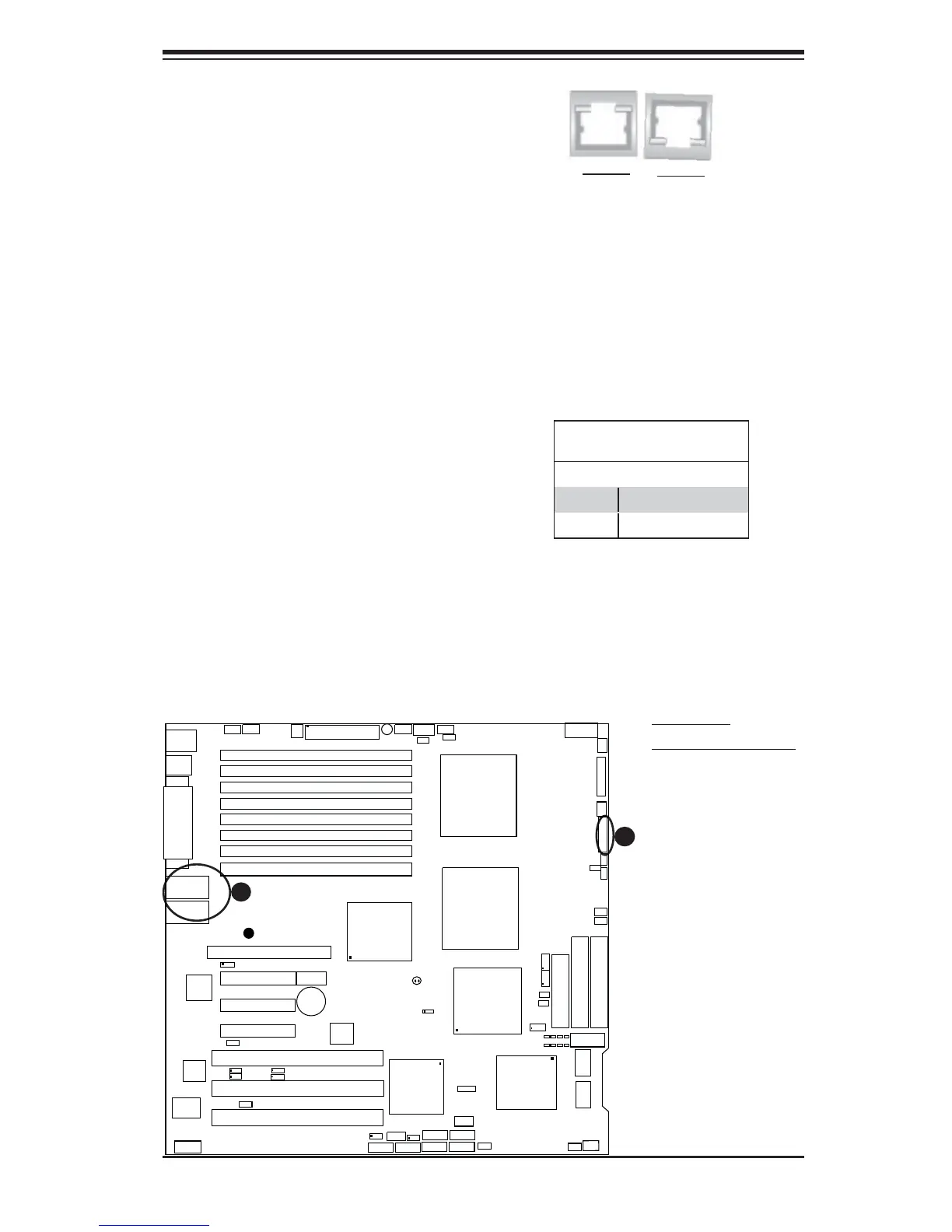

Power LED/Speaker
On the JD1 header, pins 1-3 are for
a power LED and pins 4-7 are for the
speaker. See the table on the right
for speaker pin definitions. Note:
The speaker connector pins are for
use with an external speaker. If you
wish to use the onboard speaker, you
should close pins 6-7 with a jumper.
GLAN 1/2 (Giga-bit Ethernet
Ports)
Two G-bit Ethernet ports are desig-
nated JLAN1 and JLAN2 on the IO
backplane. This port accepts RJ45
type cables.
Speaker Connector
Pin Setting Defi nition
Pins 6-7 Internal Speaker
Pins 4-7 External Speaker
A
B
A. GLAN1/2
B. PWR LED/Speaker
GLAN1
GLAN2
®
JLAN1
S
UPE R
X7DB
3
