B1SA4-2750F/B1SA4-2550F
Motherboard User
’s Manual
B1SA4-F
J2
J22
JKVM2
JKVM3
JKVM4
JKVM1
MH2
MH1
J20
LED1
LED2
LED3
LED4
JBT1
JBT2
JBT3
JBT4
JWD1
JWD3
J5
JWD4
J21
J18
JWD2
Q55
MH4
MH5
MH3
C1272
P3
-J
BT
1
P4
-J
BT
1
P1
P2
-J
BT
1
JWD1
P1
-J
WD1
P2
-J
WD1:
P3
-J
WD1
P4
-J
WD1
WA
TC
H
1-2:R
ST
2-3:NM
I
DOG
WA
TC
H1
-2:RST
2-3:NMI
DOG
WA
TC
H
1-2:RST
2-3:NMI
DOG
DOG
WA
TC
H
2-3:NMI
1-2:RST
P4-DIMMB1
P4-DIMMA
1
P3-DIMMA
1
P3-DIMMB1
P2-DIMMB1
P2-DIMMA
1
P1-DIMMB1
P1-DIMMA
1
CPU2
CMOS
CLEAR
CMO
S
CLEAR
CMOS
CLEAR
CMOS
CLEAR

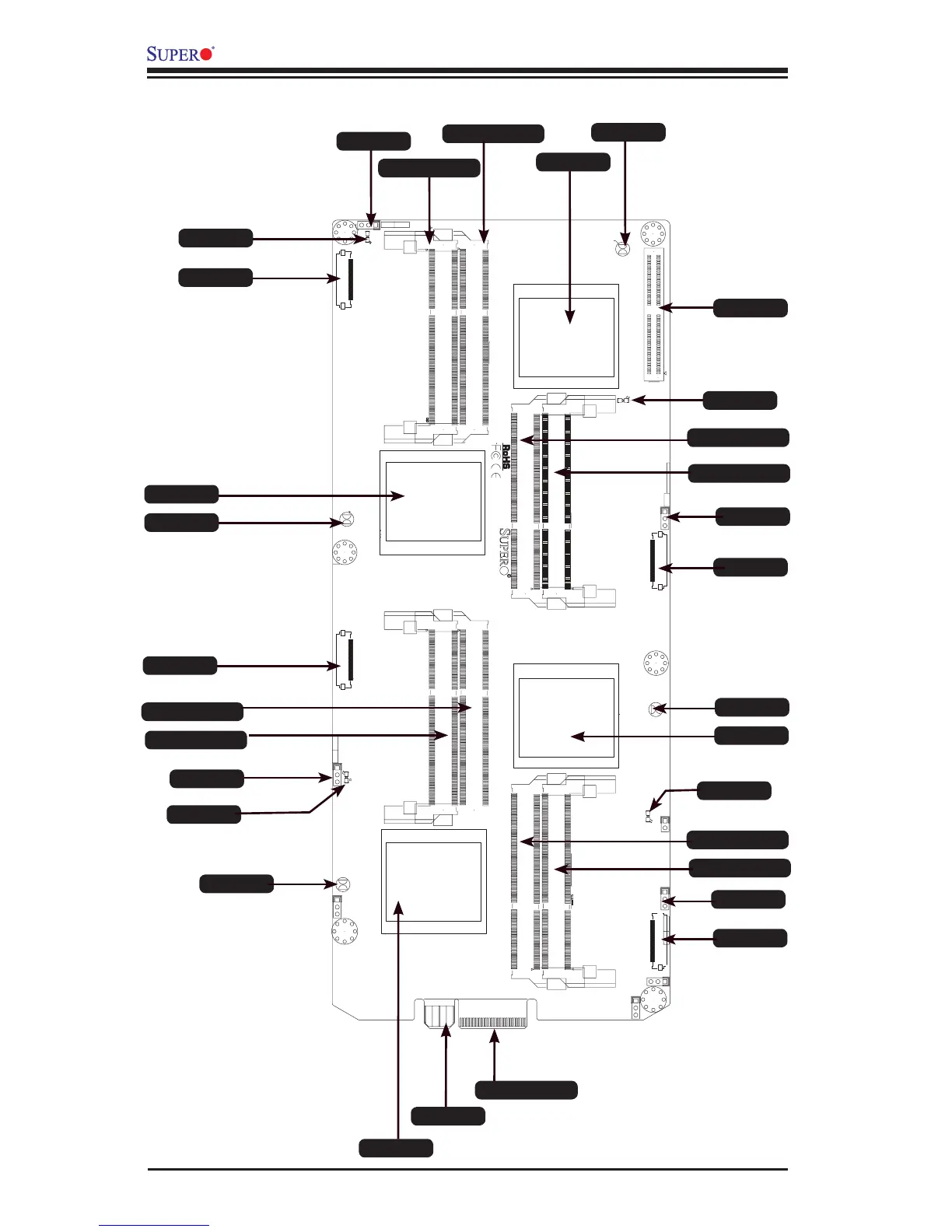

Motherboard
Quick Reference
JBT1
CPU1
P1-DIMMA1
P1-DIMMB1
JWD1
LED1
JKVM1
JBT4
CPU4
P4-DIMMA1
P4-DIMMB1
JWD4
LED4
JKVM4
JBT2
CPU2
P2-DIMMA1
P2-DIMMB1
JWD2
LED2
JKVM2
JBT3
CPU3
P3-DIMMA1
P3-DIMMB1
JWD3
LED3
JKVM3
J20
POWER
I/O
17
19
Table of Contents
Default Chapter
3
About this Motherboard
3
Manual Organization
3
Conventions Used in the Manual
4
Contacting Supermicro
5
Table of Contents
6
Chapter 1 Introduction
15
Overview
15
Checklist
15
Motherboard Features
20
Motherboard Block Diagram
22
System Block Diagram
22
Special Features
23
Recovery from AC Power Loss
23
PC Health Monitoring
23
Fan Status Monitor with Firmware Control
23
Environmental Temperature Control
23
System Resource Alert
23
ACPI Features
24
Slow Blinking LED for Suspend-State Indicator
24
Power Supply
24
Advanced Power Management
25
Intel ® Intelligent Power Node Manager (NM)
25
Manageability Engine (ME)
25
Introduction to the BMC (Baseboard Management Controller)
25
Chapter 2 Installation
27
Static-Sensitive Devices
27
Precautions
27
Unpacking
27
System Memory
28
How to Install Sodimms
28
Memory Support
28
Memory Population Guidelines
29
The so DIMM Socket
30
Motherboard Installation
31
Tools Needed
31
Location of Mounting Holes
31
Installing the Motherboard
33
Connecting Cables & Optional Devices
34
I/O Edge Connector
34
Power Edge Connector
34
KVM Connector (JKVM1~4)
35
SATA Connector (J20)
35
Jumper Settings
36
Explanation of Jumpers
36
Watch Dog Reset (JWD1~4)
36
Clear CMOS (JBT1~4)
37
Onboard Indicators
37
BMC Heartbeat (LED1~4)
37
Chapter 3 Troubleshooting
39
Troubleshooting Procedures
39
Before Power on
39
No Power
39
No Video
40
Memory Errors
40
When The System Loses The Setup Configuration
40
Technical Support Procedures
41
Frequently Asked Questions
42
Returning Merchandise for Service
43
Chapter 4 BIOS
45
Introduction
45
Starting BIOS Setup Utility
45
How To Change The Configuration Data
45
How to Start the Setup Utility
46
Main Setup
46
The Following Main Menu Items will Display
47
System Date/System Time
47
Version
47
Build Date
47
Memory Information
47
Total Memory
47
Advanced Setup Configurations
48
Boot Feature
48
Addon ROM Display Mode
48
Bootup Num-Lock
48
Quiet Boot
48
Interrupt 19 Capture
49
Power Button Function
49
Power Configuration
49
Restore on AC Power Loss
49
Wait for 'F1' if Error
49
Watch Dog Function
49
WOL (Wake-On_Lan) Support
49
Clock Spread Spectrum
50
CPU Configuration
50
Eist (Gv3)
50
P-STATE Coordination
50
ACPI 3.0 T-States (Available When "CPU C-States" Is Set to Enabled)
51
ACPI C2 (Available When "CPU C-States" Is Set to Enabled)
51
CPU C-States
51
Enhanced Halt State (C1E) (Available When "CPU C-States" Is Set to Enabled)
51
L1 Prefetcher (Available When Supported by the CPU)
51
L2 Prefetcher (Available When Supported by the CPU)
51
Monitor/Mwait
51
Package C-State Limit
51
BIST Selection (Available When Supported by the CPU)
52
Execute Disable Bit (Available if Supported by the os & the CPU)
52
Extended APIC
52
Fast String
52
Machine Check
52
Max CPUID Value Limit
52
MTRR (Memory Type Range Register) Default as Uncacheable
52
VMX (Available When Supported by the CPU)
52
Aes-Ni
53
PECI Enable
53
PECI Trusted
53
PECI Smbus Speed
53
Turbo (Available if Intel® EIST Technology Is Enabled)
53
Rapl
53
Msr 606 Pkg_Power_Sku_Unit
53
Msr 610 Pkg_Turbo_Pwr_Lim
53
Msr 670 Pkg_Turbo_Cfg1
53
Msr 672_Turbo_Wkld_Cfg2
53
CPU Core Ratio
54
Chipset Configuration
54
North Bridge
54
Fast Boot
56
Memory Frequency
56
Memory Channels
56
MRC (Maximal Ratio Combining) Debug Messages
56
DDR Voltage
56
Fine DDR Voltage
56
CKE Power down
57
ECC (Error Correctable Correction)
57
Faulty Part Tracking
57
On Correctable Faulty Part
57
Patrol Scrub Enable
57
Patrol Scrub Period
57
Demand Scrub Enable
57
AB Segments in DRAM
57
E Segment in DRAM
58
F Segment in DRAM
58
ZQ Calibration
58
Rank Margin Tool
58
CMD Rate (Command Rate)
58
Out-Of-Order Memory Processing
58
Out-Of-Order Aging Threshold
58
Dynamic Self Refresh
58
PMOP Value for PCO
59
PMOP Value for PCX
59
Per-Bit Margins
59
Open Page Policy Timer
59
Memory Thermal
59
Scrambler
59
Slow Power down Exit
59
Verf Override Enable
59
EHCI Hand-Off
60
Legacy USB Support
60
South Bridge
60
XHCI Hand-Off
60
Device Power-Up Delay
61
Device Reset Time-Out
61
SATA 3 Controller
61
SATA Configuration
61
USB Hardware Delays and Time-Outs
61
USB Mass Storage Driver Support
61
USB Transfer Time-Out
61
External Device
62
Hot Plug
62
LPM (Link Power Management)
62
Mechanical Switch
62
Overwrite SIR Values
62
SATA Mode
62
SATA Port 0/SATA Port 1
62
Spin up
62
Pcie/Pci/Pnp Configuration
62
PCI Latency Timer
62
Above 4G Decoding (Available if the System Supports 64-Bit PCI Decoding)
63
ASPM Support
63
Launch Storage OPROM Policy
63
Maximum Payload
63
Maximum Read Request
63
PERR# Generation
63
SERR# Generation
63
System Error Logging
63
VGA Palette Snoop
63
ACPI Settings
64
High Precision Event Timer
64
Launch Network OPROM Policy
64
Launch Video OPROM Policy
64
Load Onboard LAN1 OPROM / Load Onboard LAN2 OPROM
64
Onboard LAN Option ROM Select
64
Pcie Slot 1 OPROM
64
VGA Priority
64
AST2400 Super IO Chip
65
Change Settings
65
Device Mode
65
Device Settings
65
Serial Port
65
Serial Port 0 Configuration /Serial Port 1 Configuration
65
Serial Port 2 Attribute (Available for Serial Port 1 Only)
65
WHEA Support
65
COM1 Console Redirection, COM2/SOL Console Redirection
66
Console Redirection
66
Serial Port Console Redirection
66
Console Redirection Settings
66
Console Redirection (for EMS)
67
Serial Port for Out-Of-Band Management/Windows Emergency Management Services (EMS)
67
Console Redirection Settings (for Ems)
68
Event Logs
69
Change SMBIOS Event Log Settings
69
Enabling/Disabling Options
69
Erase Event Log
69
Erasing Settings
69
Log System Boot Event
69
SMBIOS Event Log
69
SMBIOS Event Long Standard Settings
69
When Log Is Full
69
Convert OEM Codes
70
Customer Options
70
Log OEM Codes
70
Meci
70
Metw
70
View SMBIOS Event Log
70
Ipmi
71
IPMI Firmware Revision
71
Status BMC
71
BMC Network Configuration
71
BMC Network Congifuration
71
LAN Channel 1: this Feature Allows the User to Configure the Setting for LAN Port 1
71
Configuration Address Source
71
Security Settings
73
Administrator Password
73
User Password
73
Secure Boot Menu
73
Secure Boot Mode
73
Append Key Exchange Key (KEK)
74
Delete PK (Platform Keys)
74
Enroll All Factory Default Keys
74
Factory Default Key Provision
74
Key Exchange Key Database (KEK)
74
Key Management
74
Platform Key (PK)
74
Save All Secure Boot Variables
74
Save Key Exchange Key Database (KEK)
74
Set New PK (Platform Keys)
74
Append DB
75
Append DBX
75
Fixed Media
75
Forbiden Signature Database (DBX)
75
Image Execution Policy
75
Internal FV
75
Option ROM
75
Removable Media
75
Set New DBX
75
Boot Settings
76
Boot Option Priorities
76
Save & Exit
77
Discard Changes and Exit
77
Save Changes and Reset
77
Save Options
77
Save Changes
77
Discard Changes
77
Restore Defaults
78
Save as User Defaults
78
Restore User Defaults
78
Boot Override
78
Appendix A
79
BIOS Error Beep Codes
79
Appendix B Software Installation Instructions
81
B-1 Installing Drivers
81
Configuring Superdoctor ® III
82
An Overview to the UEFI BIOS
85
Appendix C UEFI BIOS Recovery Instructions
85
How to Recover the UEFI BIOS Image (-The Main BIOS Block
85
To Recover the Main BIOS Block Using a USB-Attached Device
85
