Chapter 2: Installation
2-7

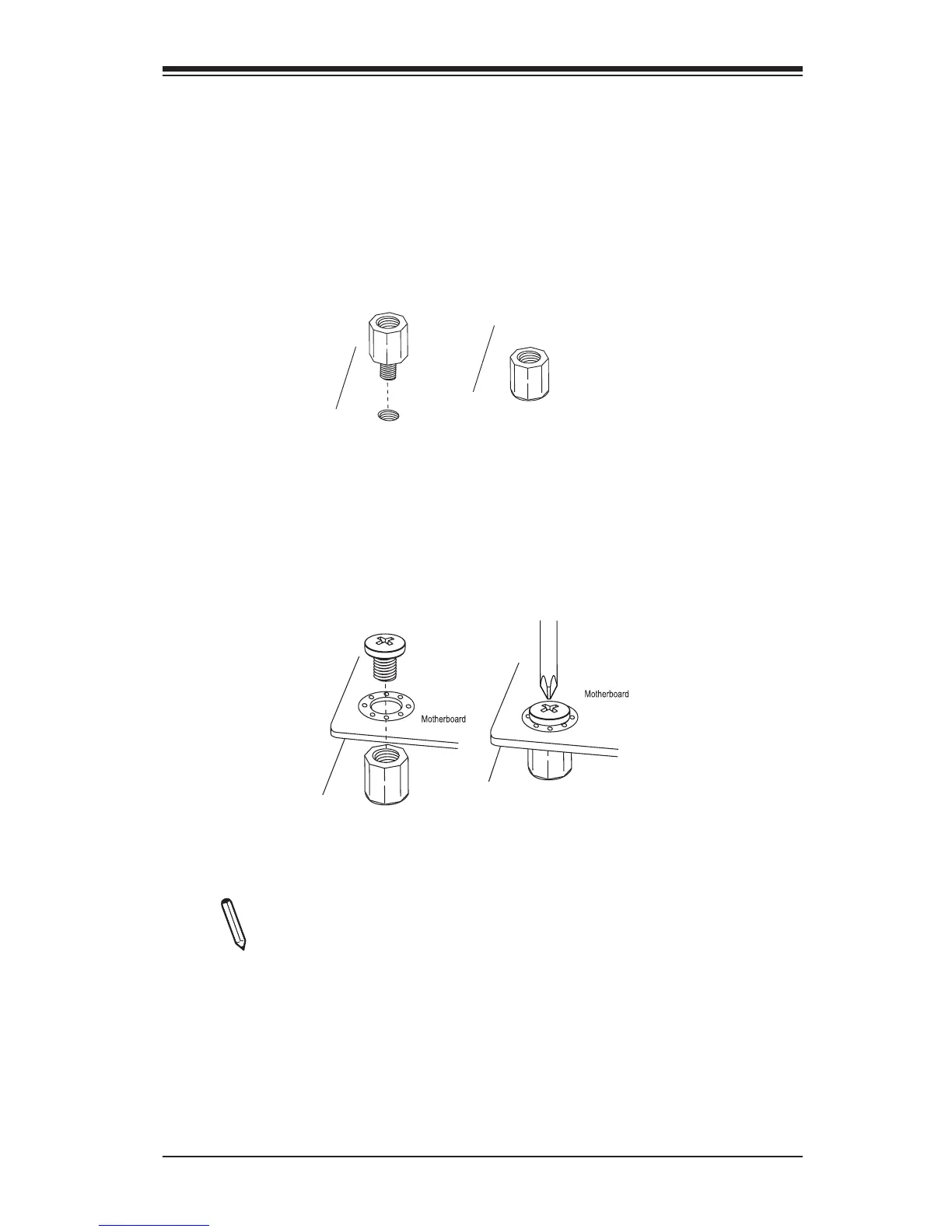

Installing the Motherboard
1. Locate the mounting holes on the motherboard.
2. Locate the matching mounting holes on the mounting tray. Align the mounting
holes on the motherboard against the mounting holes on the mounting tray
3. Install standoffs in the mounting tray as needed.
4. Using a Philips screwdriver, insert a Pan head #6 screw into a mounting hole
on the motherboard and its matching mounting hole on the mounting tray.
5. Repeat Step 5 to insert #6 screws into all mounting holes.
6. Make sure that the motherboard is securely placed in the mounting tray.
Note: The images displayed are for illustration only. Your chassis or com-
ponents might look different from those shown in this manual.
