B1SA4-2750F/B1SA4-2550F Motherboard User’s Manual
Mounting Tray

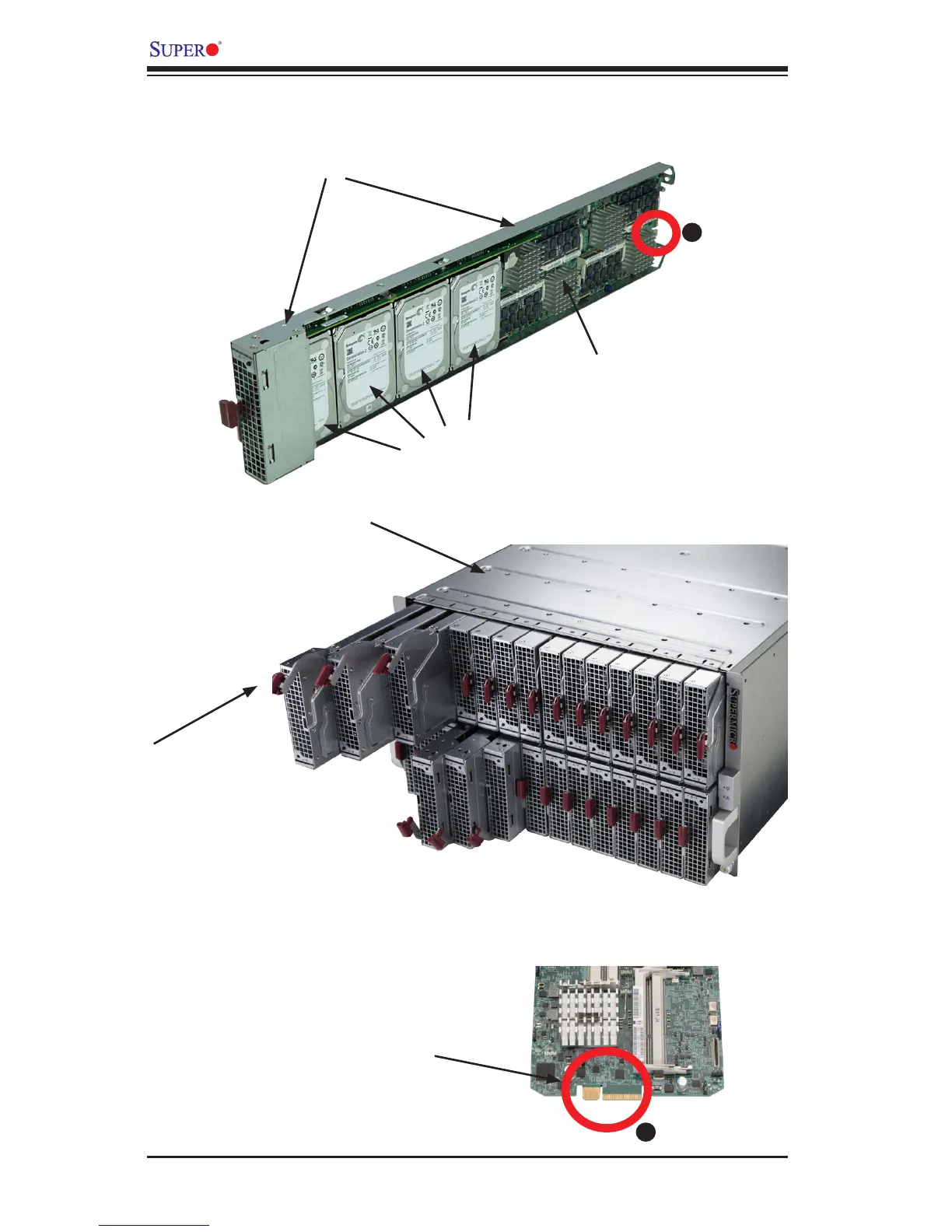

The B1SA4-2750F/B1SA4-2550F motherboard ts into a mounting tray, that also
holds the hard drives. See the image below:
B1SA4-2750F/B1SA4-2550F
Motherboard
Hard Disk Drives
Microblade Chassis
Mounting tray with
B1SA4-2750F/
B1SA4-2550F
motherboard
slides into the Mi-
croblade chassis.
Once the mounting tray with the
B1SA4-2750F/B1SA4-2550F
motherboard is pushed in the
Microblade chassis, the mother-
board's edge connectors make
contact with the chassis' back-
plane, where it connects electri-
cally with the chassis power,
network and other I/O devices.
B1SA4-2750F/B1SA4-2550F
Motherboard
A
A
