X10SLQ/X10SLQ-L User’s Manual

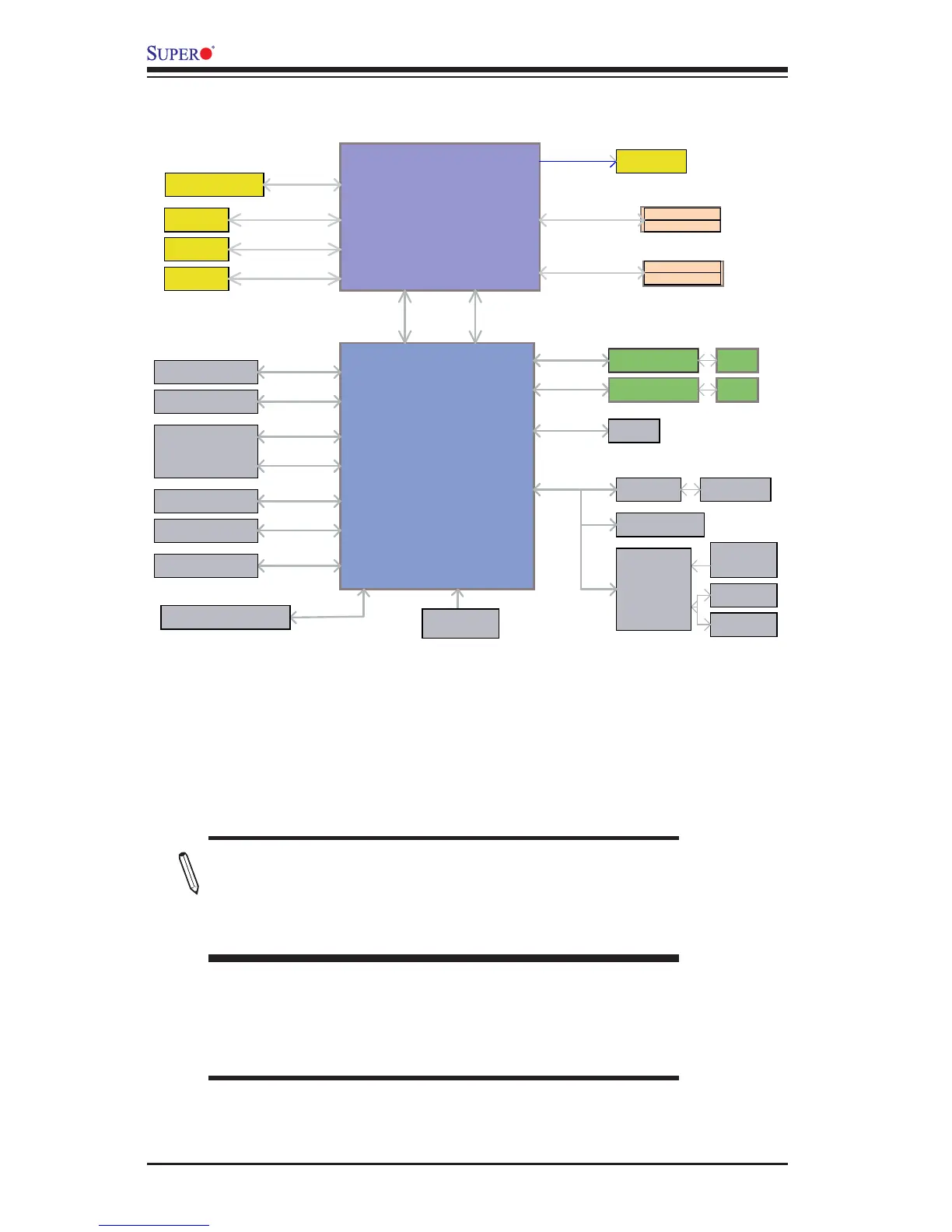

System Block Diagram
Note 1: This is a general block diagram and may not exactly
represent the features on your motherboard. See the Moth-
erboard Features pages for the actual specications of each
motherboard.
Note 2: The following components are not available on the
X10SLQ-L model: DIMM A1/DIMM B1, Keyboard/Mouse, USB
(2.0) 0/1, (3.0) 10/11, and the mini-PCIe card with mSATA and
3G socket support.
1600/1333MHz
4 USB 3.0 PORTS
480Mbps
USB3.0
VRD12.5
INTEL LGA1150
PCIe x16 SLOT #7
PCIe3.0_x16
8.0GT/s
SVID
VRM 12.5
DDR3 (CHA)
DIMMA2 (Blue)
DIMMA1
DDR3 (CHB)
DIMMB2 (Blue)
DIMMB1
1600/1333MHz
5GT/s
x4 DMI
PCIe2.0_x1
5GT/s
PCIe x1 SLOT #5
PCIe x4 SLOT #4
PCIe2.0_x4
5GT/s
Shared with mSATA
SATA-III
8 USB 2.0 PORTS
600MB/s
480Mbps
USB2.0
5 SATA-III PORTS
SATA-III
600MB/s
RJ45
2.5GT/s
PCIe2.0_x1 GLAN1
I217LM
PCH
Intel
Lynx Point Q87
(Socket-H3)
Haswell-DT
2.7 Gb/s
x2 FDI
Analogl port A
AZALIA
Realtek ALC888S-VD2
VGA
RJ45
2.5GT/s
PCIe2.0_x1
GLAN2
I210-AT
Mini PCI-E SLOT
PCIe2.0_x1
5GT/s
FLASH
SPI 128Mb
SPI
DisplayPort
HDMI
DVI-D
Digital port B
Digital port C
Digital port D
TPM1.2 Header
COM 3/4
ITE 8760E
LPC
HEALTH
INFO
COM1/2
P/S2 KB/MS
NCT6776D
LPC I/O
X10SLQ/X10SLQ-L Block Diagram
