Supero X10SLQ User Manual

2-18
X10SLQ/X10SLQ-L User’s Manual
X10SLQ (-L)
Rev. 1.00
MAC CODE
BAR CODE
BIOS
LICENSE
JSD1
JBT1
SP1
JITP1
LED1
LED2
LED3
T-SGPIO1
T-SGPIO2
COM1
COM2
COM3
COM4
JD1
FAN3
FAN2
FAN1
FAN4
JP2
JP1
JLED1
JWD1
JPL2
JPL1
JPAC1
JI2C1 JI2C2
JP5
JP4
JP3
JL1
JWOR1
JHD_AC1
I-SATA2
I-SATA1
I-SATA3
I-SATA0
I-SATA4
JTPM1
JF1
JPW2
USB10/11(3.0)
AUDIO FP
USB6/7
USB8/9
SLOT4 PCI-E 2.0 X4
SLOT5 PCI-E 2.0 X1
HD AUDIO
SLOT7 PCI-E 3.0 X16
USB4/5
LAN2
USB2/3(3.0)
LAN1
HDMI/DP
ALWAYS POPULATE BLUE SOCKET FIRST
UNB NON-ECC DDR3 DIMM REQUIRED
VGA/DVI
KB/MOUSE
USB0/1
CPU FAN
DIMMA1
DIMMA2
DIMMB1
DIMMB2
Battery
JPW1
BIOS
Intel PCH
JBR1
JPME1
JVR1
Not On “-L Model”
Not On “-L Model”
Not On “-L Model”
Not On “-L
Model”
CPU
Not On “-L Model”
Not On “-L Model”
A. Backpanel USB 2.0 #1
B. Backpanel USB 2.0 #0
C. Backpanel USB 3.0 #2
D. Backpanel USB 3.0 #3
E. Backpanel USB 2.0 #5
F. Backpanel USB 2.0 #4
G. Front Panel USB 2.0 #6/7
H. Front Panel USB 2.0 #8/9
I. Front Panel USB 3.0 #10/11

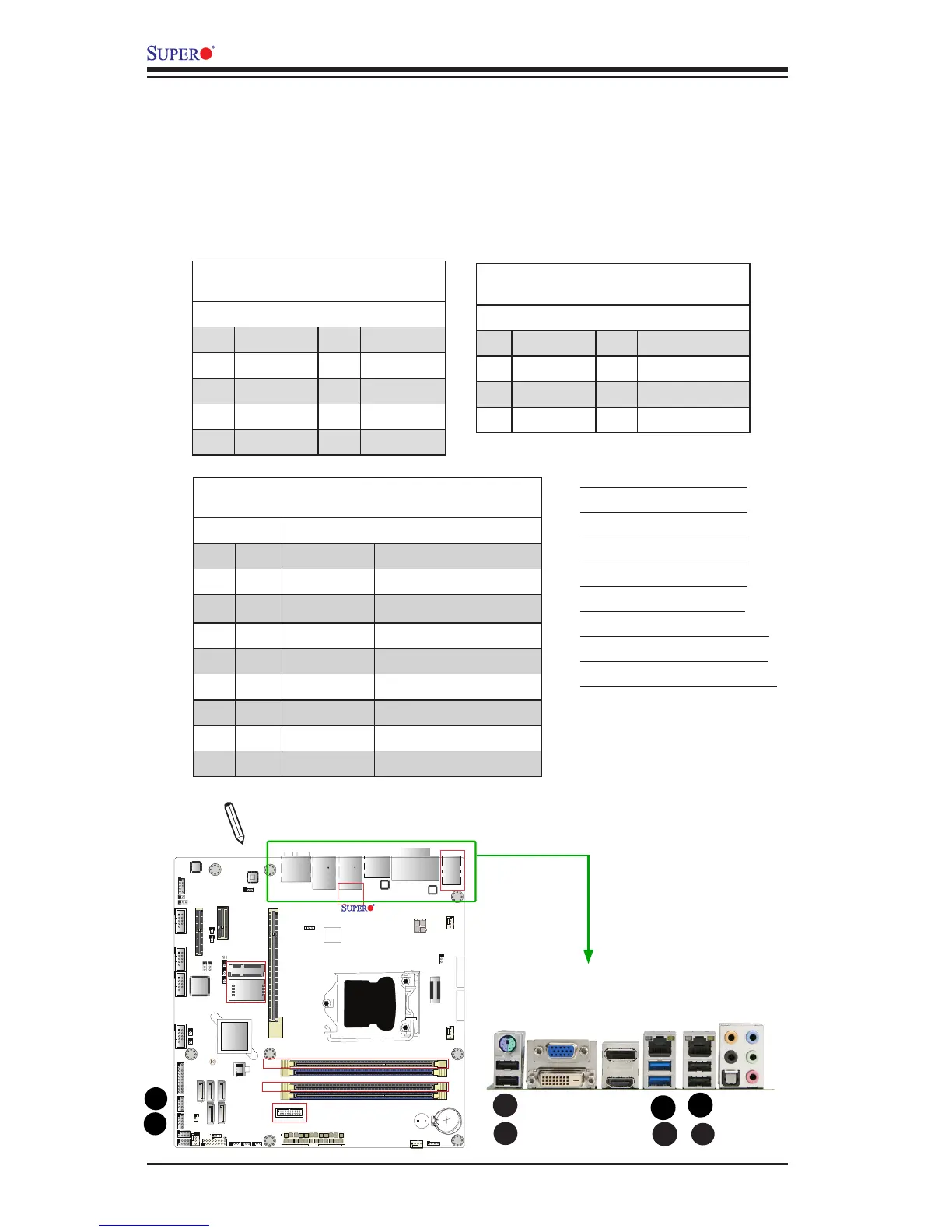

Universal Serial Bus (USB)
Four Universal Serial Bus 2.0 ports (0/1, 4/5) and two USB 3.0 ports (2/3) are
located on the I/O back panel. In addition, two USB 2.0 headers (four USB 2.0
connections: 6/7, 8/9), and one USB 3.0 header (one USB 3.0 connections: 10/11)
are also located on the motherboard to provide front chassis access using USB
cables (not included). See the tables below for pin denitions.
Back Panel USB (2.0) #0/1, 4/5
Pin Denitions
Pin# Denition Pin# Denition
1 +5V 5 +5V
2 USB_PN1 6 USB_PN0
3 USB_PP1 7 USB_PP0
4 Ground 8 Ground
Front Panel USB (2.0) #6/7, 8/9
Pin Denitions
Pin # Denition Pin # Denition
1 +5V 2 +5V
3 USB_PN2 4 USB_PN3
5 USB_PP2 6 USB_PP3
7 Ground 8 Ground
9 Key 10 Ground
A
USB (3.0) Back Panel USB#2/3, Front Panel USB#10/11
Pin Denitions
Pin# Pin# Signal Name Description
1 19 VBUS Power
2 18 IntA_SSRX- SuperSpeed Rx-
3 17 IntA_SSRX+ SuperSpeed Rx+
4 16 GND Ground
5 15 IntA_SSTX- SuperSpeed Tx-
6 14 IntA_SSTX+ SuperSpeed Tx+
7 13 GND Ground
8 12 IntA_D- USB2 D-
9 11 IntA_D+ USB2 D+
C
E
B
F
D
H
G
Note: USB 0/1 and 10/11 are not available on the -L model.
