Supero X10SLQ User Manual

1-4

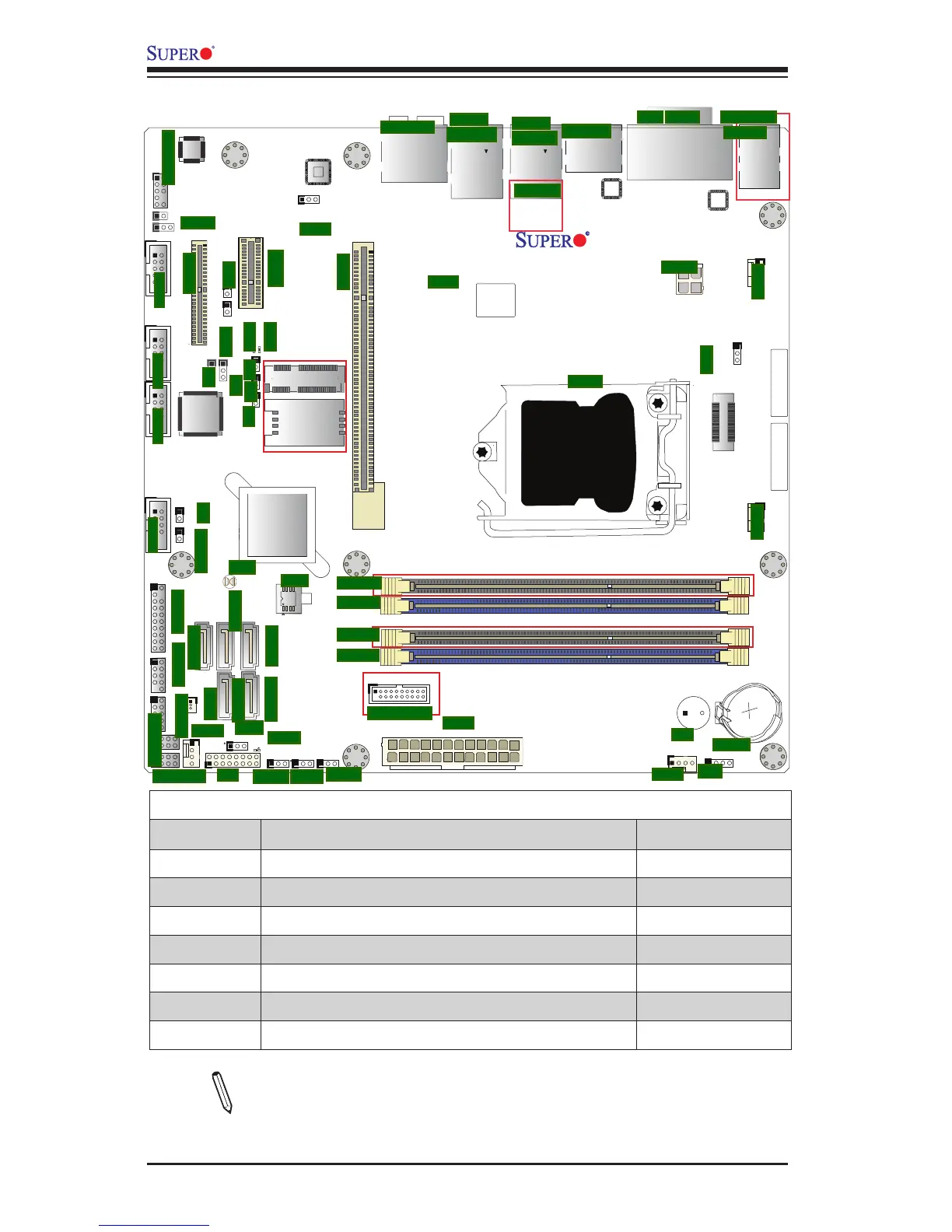

X10SLQ/X10SLQ-L User’s Manual
X10SLQ (-L)
Rev. 1.00
Not On “-L Model”
Not On the “-L Model”
Not On “-L Model”
Not On “-L
Model”
Not On “-L Model”
Not On the “-L Model”
X10SLQ/X10SLQ-L Jumpers
Jumper Description Default
JBR1 BIOS Recovery Pins 1-2 (Normal)
JBT1 CMOS Clear (See Chpt. 2)
JI
2
C1/JI
2
C2 SMB to PCI Slots Off (Disabled)
JPAC1 Audio Enable Pins 1-2 (Enabled)
JPL1/JPL2 LAN1/LAN2 Enable Pins 1-2 (Enabled)
JPME1 Intel ME Recovery Mode Select Pins 1-2 (Normal)
JWD1 Watch Dog Enable Pins 1-2 (Reset)
USB 4/5
Note: The following components are not available on the X10SLQ-L model:
DIMM A1/DIMM B1, Keyboard/Mouse, USB (2.0) 0/1, (3.0) 10/11, and the
mini-PCIe card with mSATA and 3G socket support.
X10SLQ/X10SLQ-L Quick Reference
AUDIO FP
JPAC1
COM1
USB 8/9
JWD1
JPME1
JLED1
BIOS
JF1
FAN3
LED1
FAN2
JPW1
JD1
FAN1
JVR1
JPW2
KB/MOUSE
USB 0/1
VGA
DVI-D
HDMI/DP
LAN 1
USB 4/5
LAN 2
USB 2/3
HD AUDIO
JPL2
T-SGPIO 2
I-SATA4
I-SATA2
SLOT4
SP1
CPU
JBT1
USB3.0 10/11
SLOT7
JI2C1
FAN4
I-SATA0
JPL1
DIMMA1
DIMMA2
DIMMB1
DIMMB2
Battery
USB 6/7
I-SATA1
I-SATA3
SLOT5
COM2
JP1
JSD1
COM3
COM4
JI2C2
JP2
JP3
JP4
JP5
LED2
JL1
JWOR1
T-SGPIO 1
JTPM1
JBR1
LED3
USB 2/3
