Chapter 2: Installation
2-21

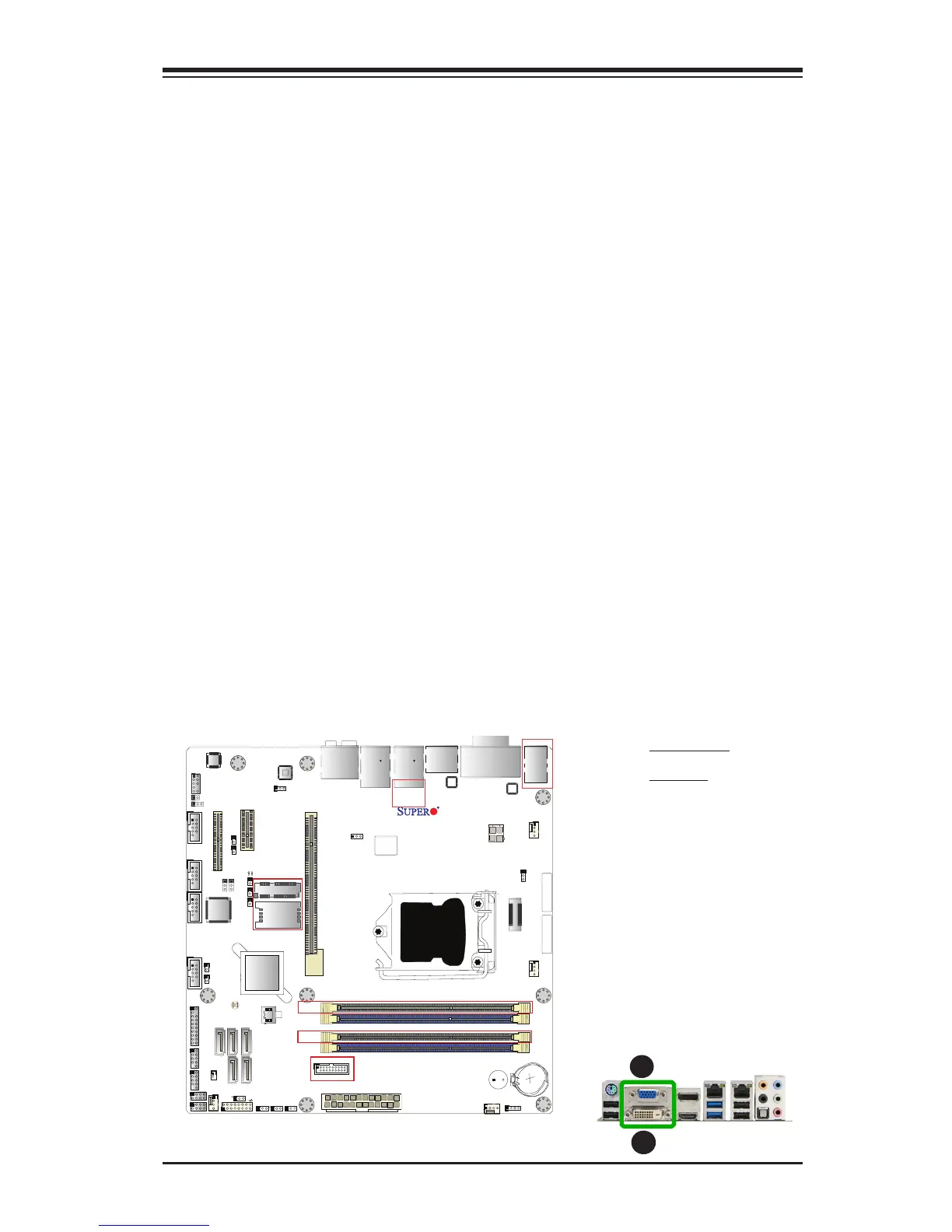

VGA/DVI-D Connections
A
VGA
port
and
a
DVI-D
connector
are
located next to USB Ports 0/1 on the I/O
backpanel.
Use
these
connections
for
VGA
and
DVI-D
displays.
A.
VGA
Port
B.
DVI-D
A
B
X10SLQ (-L)
Rev. 1.00
MAC CODE
BAR CODE
BIOS
LICENSE
JSD1
JBT1
SP1
JITP1
LED1
LED2
LED3
T-
SGPIO1
T-SGPIO2
COM1
COM2
COM3
COM4
JD1
FA
N3
FA
N2
FA
N1
FA
N4
JP2
JP1
JLED1
JWD1
JPL2
JPL1
JPAC1
JI2C1
JI2C2
JP5
JP4
JP3
JL1
JWOR1
JHD_AC1
I-SA
TA
2
I-SA
TA
1
I-S
AT
A3
I-SA
TA
0
I-S
AT
A4
JTPM1
JF1
JPW2
USB10/11(3.0)
AUDIO FP
USB6/7
USB8/9
SLOT4 PCI-E 2.0 X4
SLOT5 PCI-E 2.0 X1
HD AUDIO
SLOT7 PCI-E 3.0 X16
USB4/5
LAN2
USB2/3(3.0)
LAN1
HDMI/DP
AL
WA
YS POPULATE BLUE SOCKET
FIRST
UNB NON-ECC DDR3 DIMM REQUIRED
VGA/DVI
KB/MOUSE
USB0/1
CPU
FA
N
DIMMA1
DIMMA2
DIMMB1
DIMMB2
Battery
JPW1
BIOS
Intel PCH
JBR1
JPME1
JVR1
Not On “-L
Model”
Not On “-L Model”
Not On “-L Model”
Not On “-L
Model”
CPU
Not On “-L Model”
Not On “-
L
Model”
42
44
