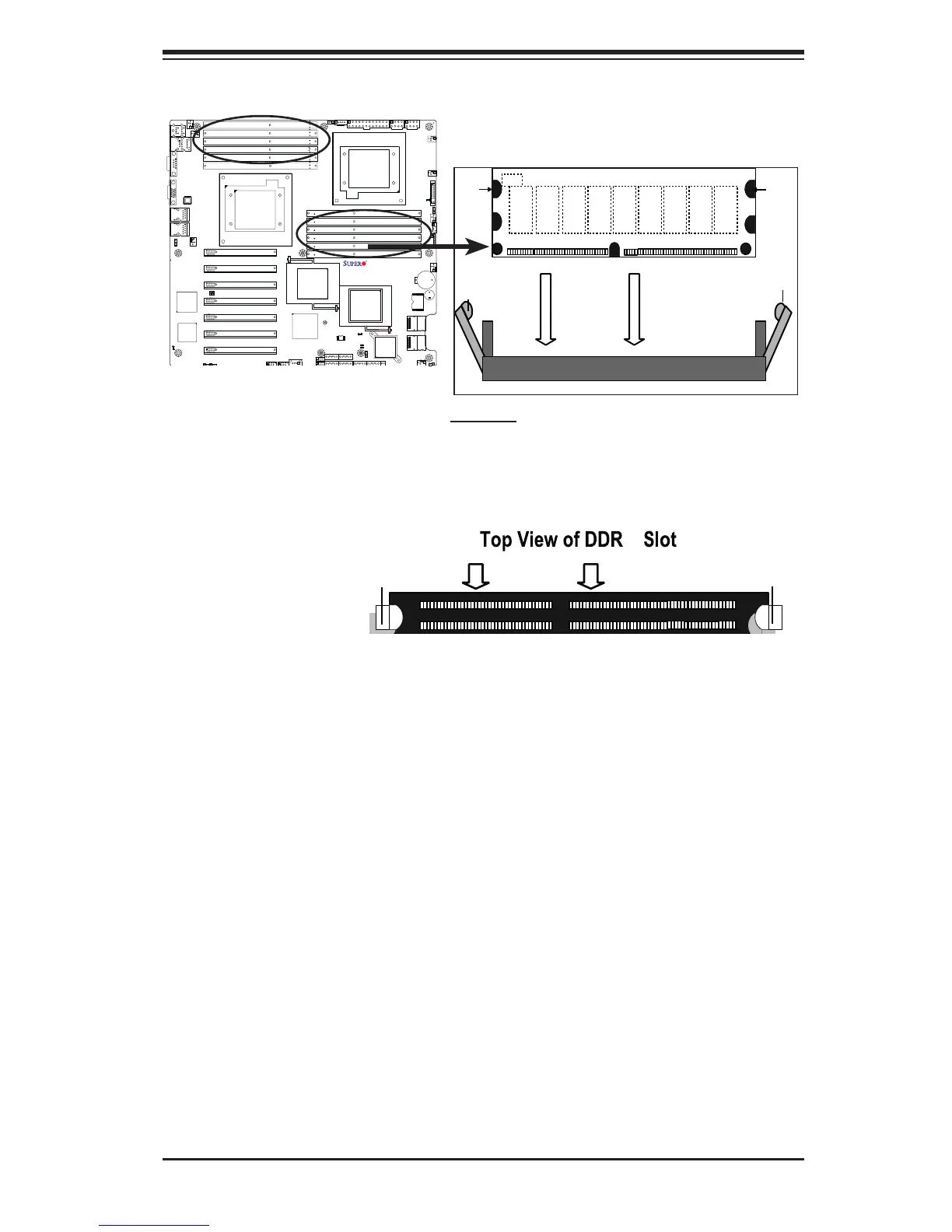

To Install: Insert module vertically and press down
until it snaps into place. Pay attention to the align-
ment notch at the bottom.
Installing and Removing DIMMs
To Remove:
Use your thumbs to gently push the release
tabs near both ends of the module. This should
release it from the slot.
Note: Notch
should align
with the
receptive point
on the slot
Notch
Release
Tab
Release
Tab
DIMM DDR3
Notch
3
Release Tab
Release Tab
