Supero X8DTU-F User Manual

2-10
X8DTU/X8DTU-F User's Manual
Note: Notch
should align
with the
receptive point
on the slot
Notch
Release
Tab
Release
Tab
DIMM DDR3
Notch
X8DTU/-F
Rev. 2.01

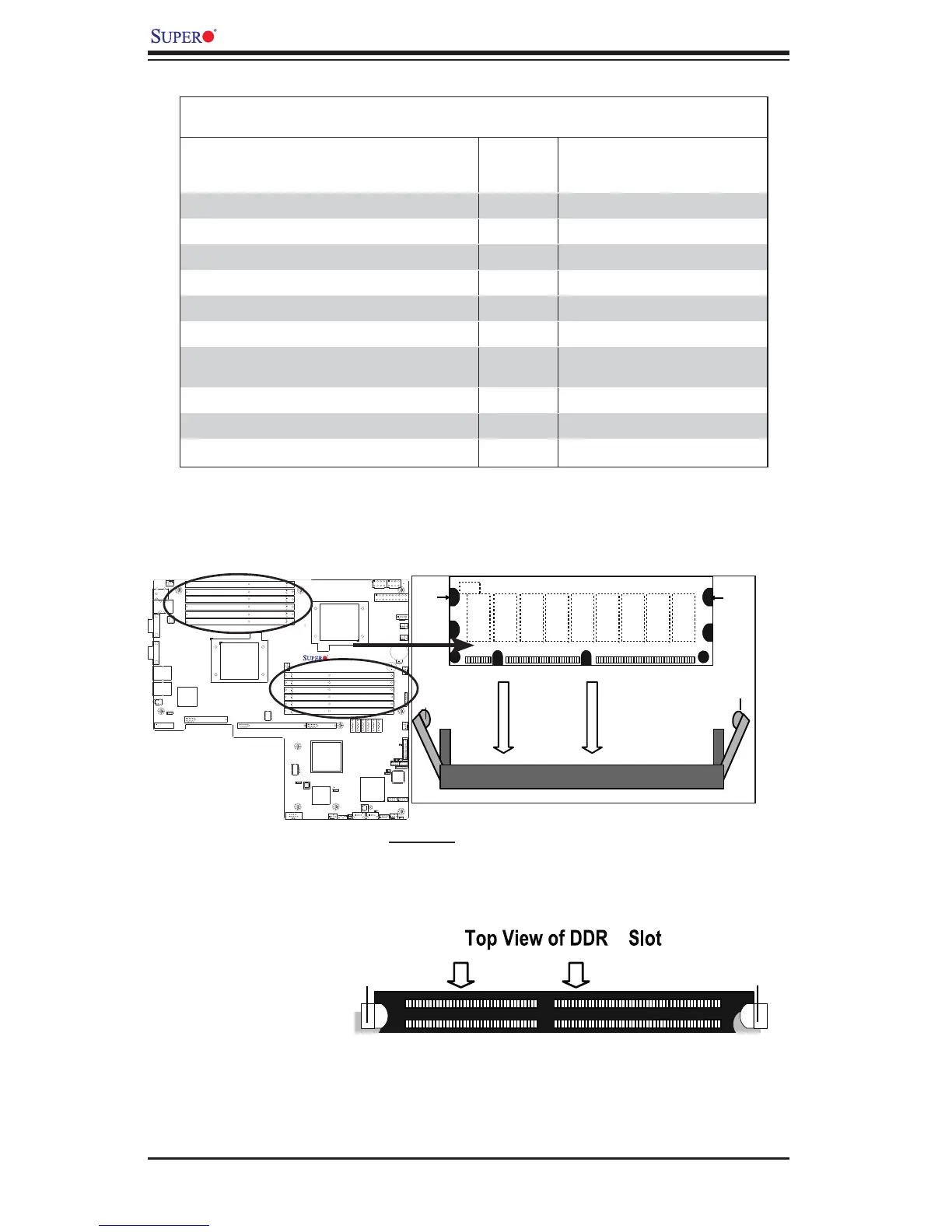

To Install: Insert module vertically and press down until it
snaps into place. Pay attention to the alignment notch at
the bottom.
Installing and Removing DIMMs
To Remove:
Use your thumbs to
gently push the re-
lease tabs near both
ends of the module.
This should release it
from the slot.
3
Release Tab
Release Tab
Possible System Memory Allocation & Availability
System Device Size Physical Memory
Remaining (-Available)
(4 GB Total System Memory)
Firmware Hub fl ash memory (System BIOS) 1 MB 3.99 GB
Local APIC 4 KB 3.99 GB
Area Reserved for the chipset 2 MB 3.99 GB
I/O APIC (4 Kbytes) 4 KB 3.99 GB
PCI Enumeration Area 1 256 MB 3.76 GB
PCI Express (256 MB) 256 MB 3.51 GB
PCI Enumeration Area 2 (if needed) -Aligned on
256-MB boundary-
512 MB 3.01 GB
VGA Memory 16 MB 2.85 GB
TSEG 1 MB 2.84 GB
Memory available for the OS & other applications 2.84 GB
