2-12
X8DTU/X8DTU-F User's Manual
X8DTU/-F
Rev. 2.01
1
2

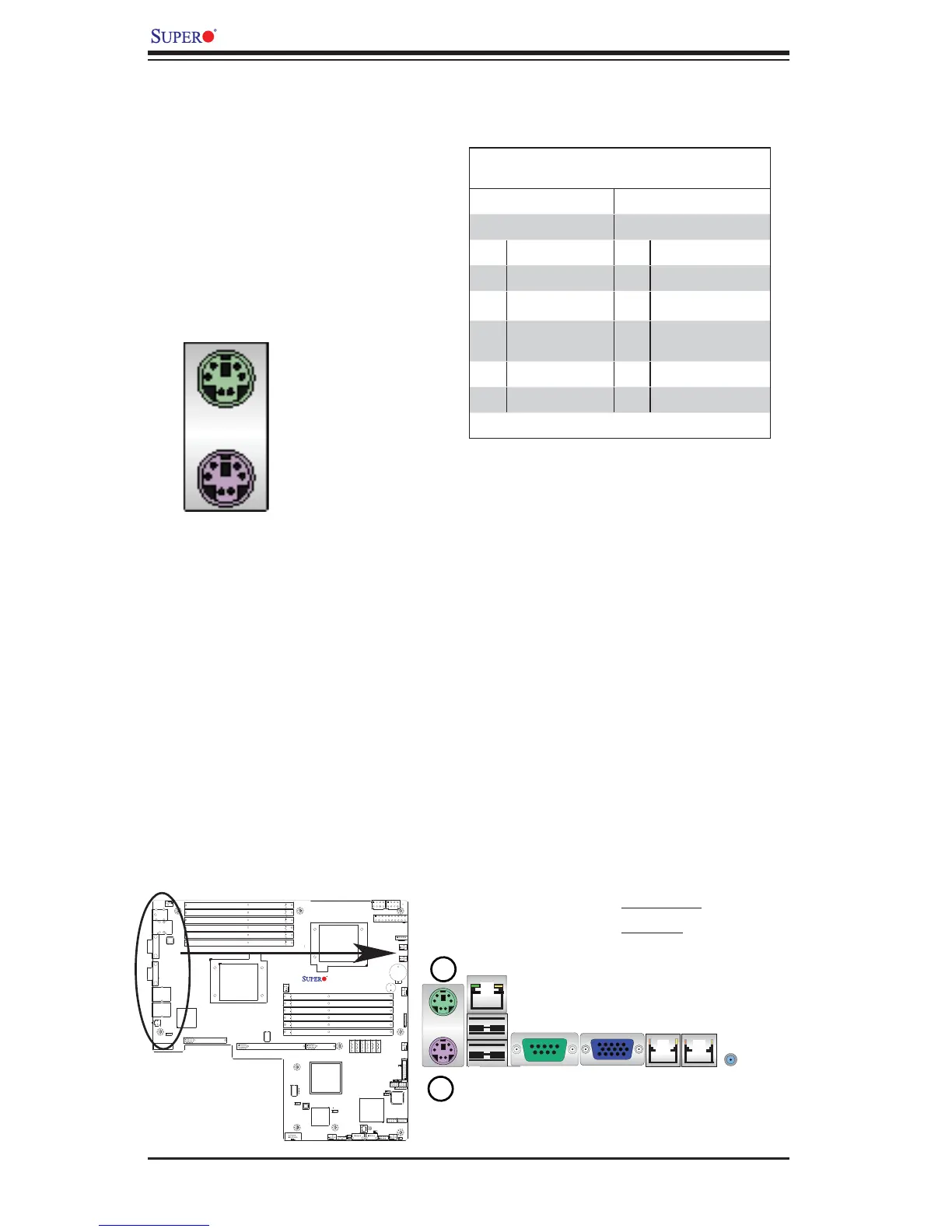

ATX PS/2 Keyboard and PS/2
Mouse Ports
The ATX PS/2 keyboard and PS/2
are located next to the Backpanel
USB ports 0/1 on the motherboard.
See the table at right for pin defi ni-
tions.
PS/2 Keyboard/Mouse Pin
Defi nitions
PS2 Keyboard PS2 Mouse
Pin# Defi nition Pin# Defi nition
1 KB Data 1 Mouse Data
2 No Connection 2 No Connection
3 Ground 3 Ground
4 Mouse/KB VCC
(+5V)
4 Mouse/KB VCC
(+5V)
5 KB Clock 5 Mouse Clock
6 No Connection 6 No Connection
VCC: with 1.5A PTC (current limit)
2. Back Panel IO & USB Pin Defi nitions
1. Keyboard
2. Mouse
