Chapter 2: Installation
2-31
IPMI_LAN (X8DTU-F)
KB/MS
Fan8
(CPU1Fan)
IPMI LAN
USB 0/1
COM1
PHY
VGA
LAN1
LAN2
LAN CTRL
BMC CTRL
BIOS
COM2
USB6
USB7
USB4/5
JTAG Of CPLD
JPI2C
P1-DIMM3A
P1-DIMM3B
P1-DIMM2A
P1-DIMM2B
P1-DIMM1A
P1-DIMM1B
P2-DIMM1B
P2-DIMM1A
P2-DIMM2B
P2-DIMM2A
P2-DIMM3B
P2-DIMM3A
LE2
JUIDB
JPL1
J10
UIOP
SXB2: PCI-E 2.0 x 8
SXB1: PCI-E 2.0 x 16
SXB3: PCI-E 2.0 x 8 in x 4 Slot
J1
J2
J3
JPG1
Fan6
IPMB
JI2C1
JBT1
J13
J14
J12
Fan5
JL1
USB2/3 JLPC1
CPU2
CPU1
Intel 5520
IOH]
Intel ICH10R
South Bridge
T-SGPIO2
T-SGPIO1
J17
JWD
JF1
JOH1
LE1
Fan4
Fan3
SP1
Buzzer
JBAT1
Battery
Fan2
Fan1
JPW1
JPW3
JPW2
JD1
I-SATA5
I-SATA4
I-SATA3
I-SATA2
I-SATA1
I-SATA0
X8DTU/-F
Fan7(CPU2 Fan)
FP CTRL
CPLD
PWRLED/SPK
Rev. 2.01
JPB
JI2C2
JP3
GLAN LEDs

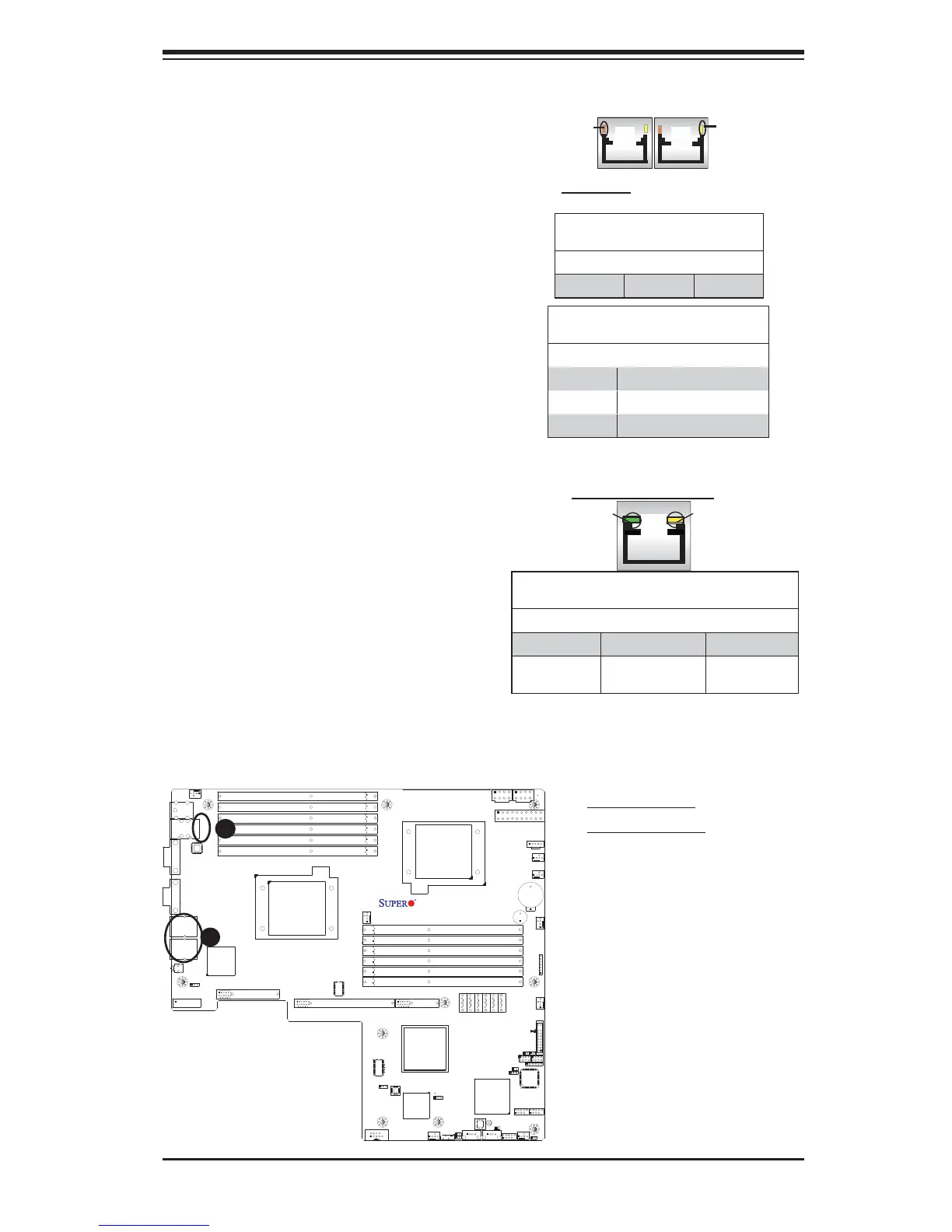

There are two GLAN ports (LAN1/LAN2)
on the motherboard. Each Gigabit Ether-
net LAN port has two LEDs. The yellow
LED (Right) indicates activity, while the
Link LED (Left) may be green, amber
or off to indicate the speed of the con-
nection. See the tables at right for more
information.
2-8 Onboard Indicators
A
B
A.LAN 1/2 LEDs
B. IPMI_LAN LED
Activity
LED
GLAN Link Indicator
LED Settings (Left)
LED Color Defi nition
Off No Connection or 10 Mbps
Green 100 Mbps
Amber 1 Gbps
Link
LED
GLAN Activity Indicator
LED Settings (Right)
Color Status Defi nition
Yellow Blinking Active
Rear View (when facing the
rear side of the chassis)
IPMI_Dedicated LAN LEDs (X8DTU-F)
In addition to LAN1 and LAN2, the
X8DTU-F has an IPMI_Dedicated LAN
located on the IO Backpanel. The yellow
LED (Right) indicates activity; the green
LED on the left indicates the connection
and the speed. See the tables at right for
more information.
Activity
LED
IPMI LAN LED Indicator
LED Settings
Color/State Defi nition
Activity (Right) Yellow: Blinking Active
Link (Left) Green: Solid On
Off
100 Mbps
Not connected
Link
LED
