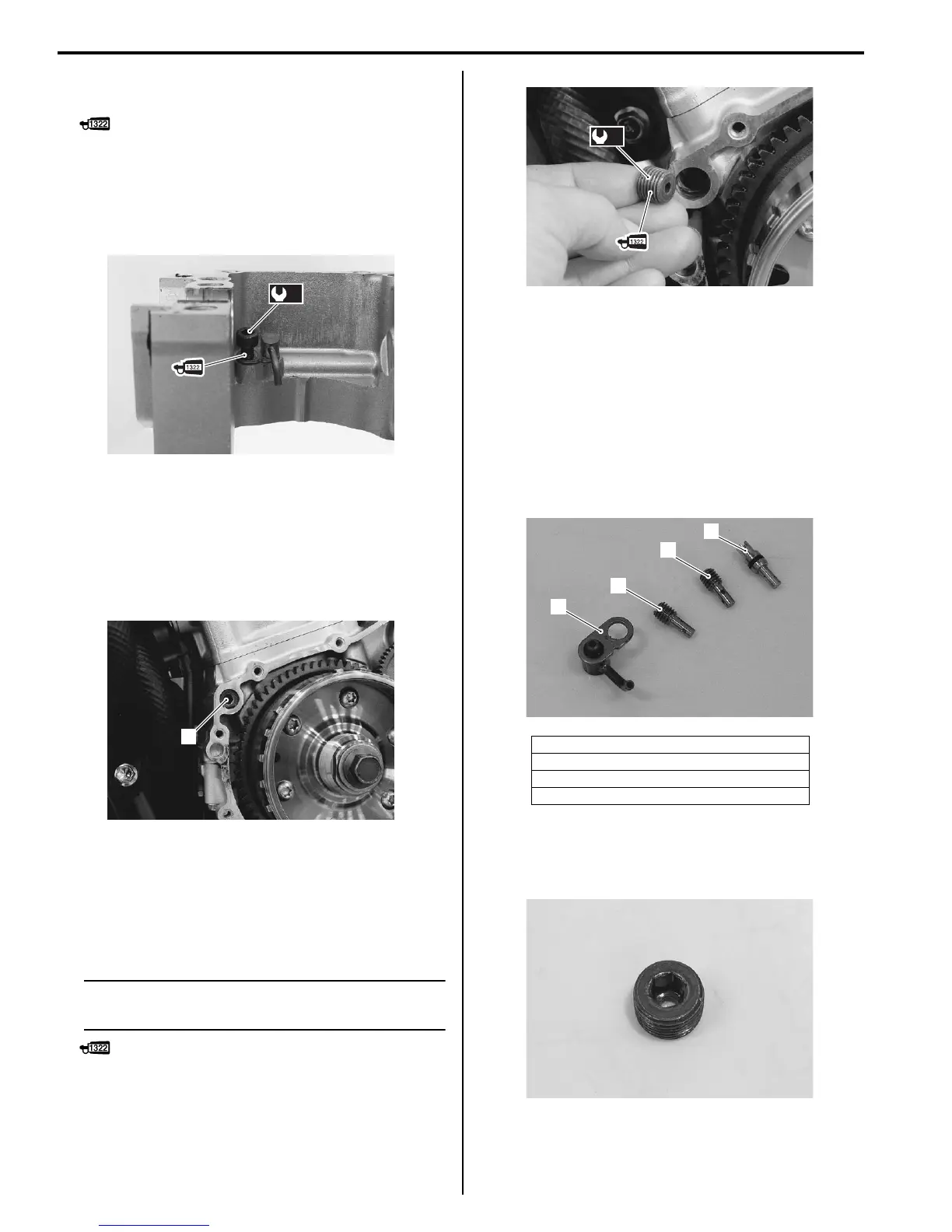

1E-10 Engine Lubrication System:
• Apply a small quantity of THREAD LOCK to the bolts
and tighten them to the specified torque.
: Thread lock cement 99000–32110
(THREAD LOCK CEMENT SUPER 1322 or
equivalent)
Tightening torque
Piston cooling oil jet bolt (a): 10 N·m (1.0 kgf-m,
7.0 lb-ft)
Oil Gallery Jet Removal and Installation
B718H11506019
Removal
1) Remove the generator cover. Refer to “Generator
Removal and Installation in Section 1J (Page 1J-4)”.
2) Remove the oil gallery jet (1).
Installation
Installation is in the reverse order of removal. Pay
attention to the following point:
• Apply THREAD LOCK to the oil gallery jet and tighten
it to the specified torque.
NOTE
After tighten the jet, make sure that the jet
end is flush with the cover mating surface.
: Thread lock cement 99000–32110
(THREAD LOCK CEMENT SUPER 1322 or
equivalent)
Tightening torque
Oil gallery jet (a): 22 N·m (2.2 kgf-m, 16.0 lb-ft)
Oil Jet / Oil Gallery Jet Inspection
B718H11506020
Refer to “Oil Jet Removal and Installation (Page 1E-8)”.
Refer to “Oil Gallery Jet Removal and Installation
(Page 1E-10)”.
Oil Jet
Make sure that the oil jets are not clogged. If they are
clogged, clean their oil passage using a wire of the
proper size and compressed air.
Oil Gallery Jet
Inspect the oil gallery jet for clogging. Clean the oil
gallery if necessary.
(a)
I718H1150049-02
1
I718H1150050-01
1. Piston cooling jet
2. Oil jet (#14) (For cylinder head)
3. Oil jet (#18) (For transmission)
4. Oil jet (#8) (For can chain tension adjuster)
(a)
I718H1150051-02
1
2
3
4
I718H1150052-01
I718H1150053-01
