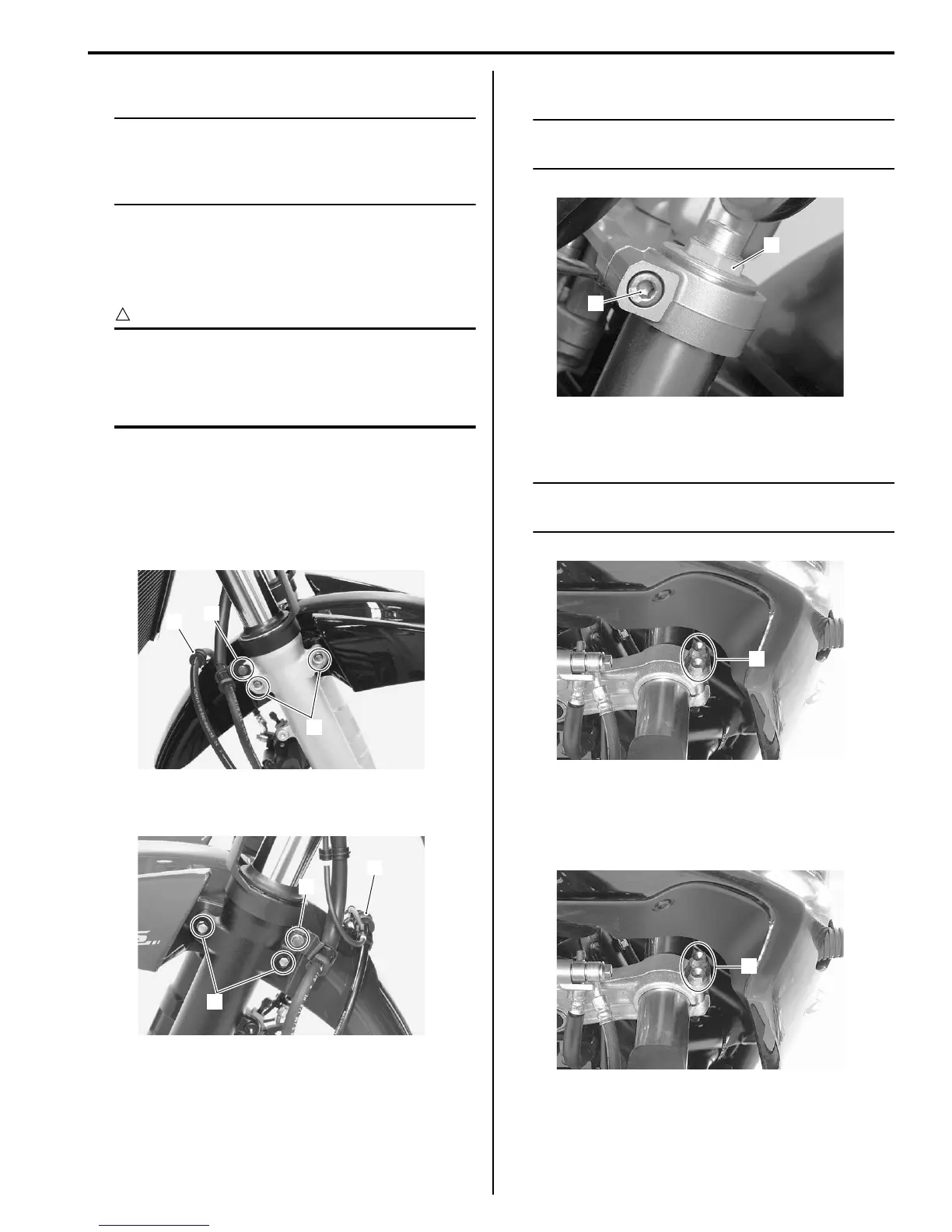

Front Suspension: 2B-2

Front Fork Removal and Installation

B718H12206002

NOTE

The right and left front forks are installed

symmetrically and therefore the removal

procedure for one side is the same as that for

the other side.

Removal

1) Remove the front wheel assembly. Refer to “Front

Wheel Assembly Removal and Installation in Section

2D (Page 2D-6)”.

CAUTION

• Make sure that the motorcycle is

supported securely.

• Do not operate the front brake lever with

the front wheel removed.

2) Disconnect the brake hose clamp (1) from the front

fender.

3) Remove the brake hose clamp bolt (2).

4) Remove the front fender by removing the bolts (3),

left and right.

GSF1250/S

GSF1250A/SA

5) Loose the front fork upper clamp bolt (4).

NOTE

Slightly loosen the front fork cap bolt (5) to

facilitate later disassembly.

6) Loosen the front fork lower clamp bolts (6) and

remove the front fork.

NOTE

Hold the front fork by the hand to prevent

sliding out of the steering stem.

Installation

1) Set the front fork to the front fork lower bracket

temporarily by tightening the lower clamp bolts (1).

I718H1220003-03

I718H1220004-02

I718H1220002-02

I718H1220005-03

I718H1220006-03
