4E-1 ABS:
Brake
ABS
Precautions
Precautions for ABS
B718H14500001
Refer to “Precautions for Electrical Circuit Service in
Section 00 (Page 00-2)”.
ABS Information
B718H14500002
WARNING
!
• Be sure to bleed air from the brake fluid
circuit when the brake is felt spongy or
when a brake relating part is replaced.
• Never ride the motorcycle before bleeding
the air.
• Be sure to route the brake hoses correctly.
• The ABS does not shorten the motorcycle’s braking
distance. When riding down slopes or on wet or
bumpy roads the braking distance is lengthened as
compared to a motorcycle without ABS. In addition,
braking distance increases more, when the road is
slippery.
• The ABS does not control slides which may occur
when braking while turning. As with a motorcycle that
does not have ABS, it is best not apply the brakes
while turning.
• The brake levers may move by themselves when they
are applied. This is not a malfunction.
• Only use the specified tires.
General Description
Wheel Speed Sensor Description
B718H14501001

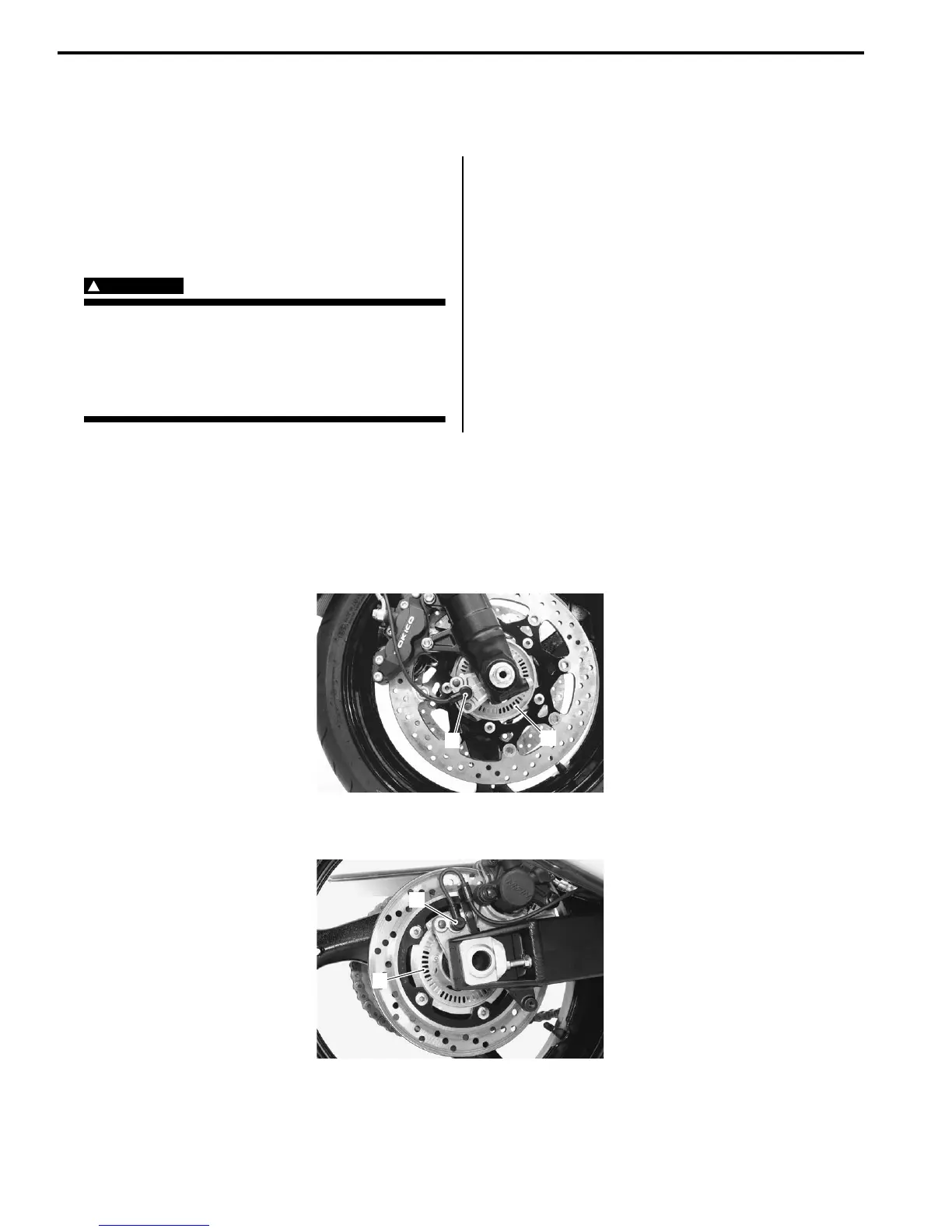

Wheel speed sensor consists of wheel speed sensor (1) and sensor rotor (2).
Front
Rear
1
2
I718H1450005-01
1
2
I718H1450006-01
