4E-37 ABS:

DTC “14” (C1614): Wheel Speed Sensor Rotor Malfunction (R)

B718H14504004

Troubleshooting

Possible Cause

• Rear wheel speed sensor rotor distortion

• Faulty rear wheel speed sensor or wiring discontinuity, etc.

Step Action Yes No

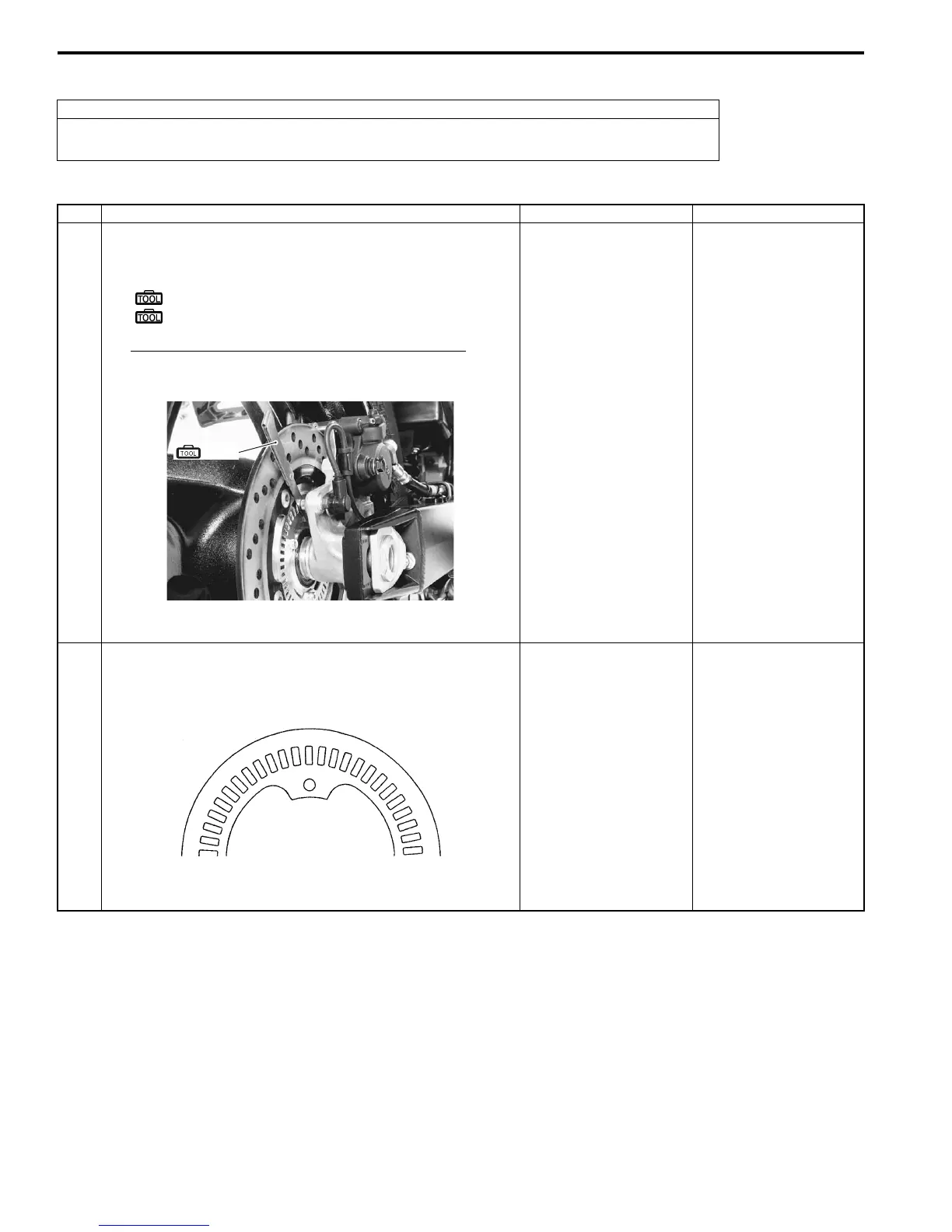

1 1) Inspect the clearance between the rear wheel speed

sensor and sensor rotor using the thickness gauge.

Special tool

(A): 09900–20803 (Thickness gauge)

(B): 09900–20806 (Thickness gauge)

Wheel speed sensor – sensor rotor clearance

0.3 – 1.5 mm (0.012 – 0.059 in)

Is the clearance OK?

Go to Step 2. Adjust the clearance.

2 1) Inspect the rear wheel speed sensor rotor for damage

and check that no foreign objects are caught in the rotor

openings.

Is the sensor rotor OK?

Go to Step 3. Clean or replace the

sensor rotor.

(A), (B)

I718H1450026-01

I718H1450064-01
