Rear Brakes: 4C-1
Brake
Rear Brakes
Repair Instructions

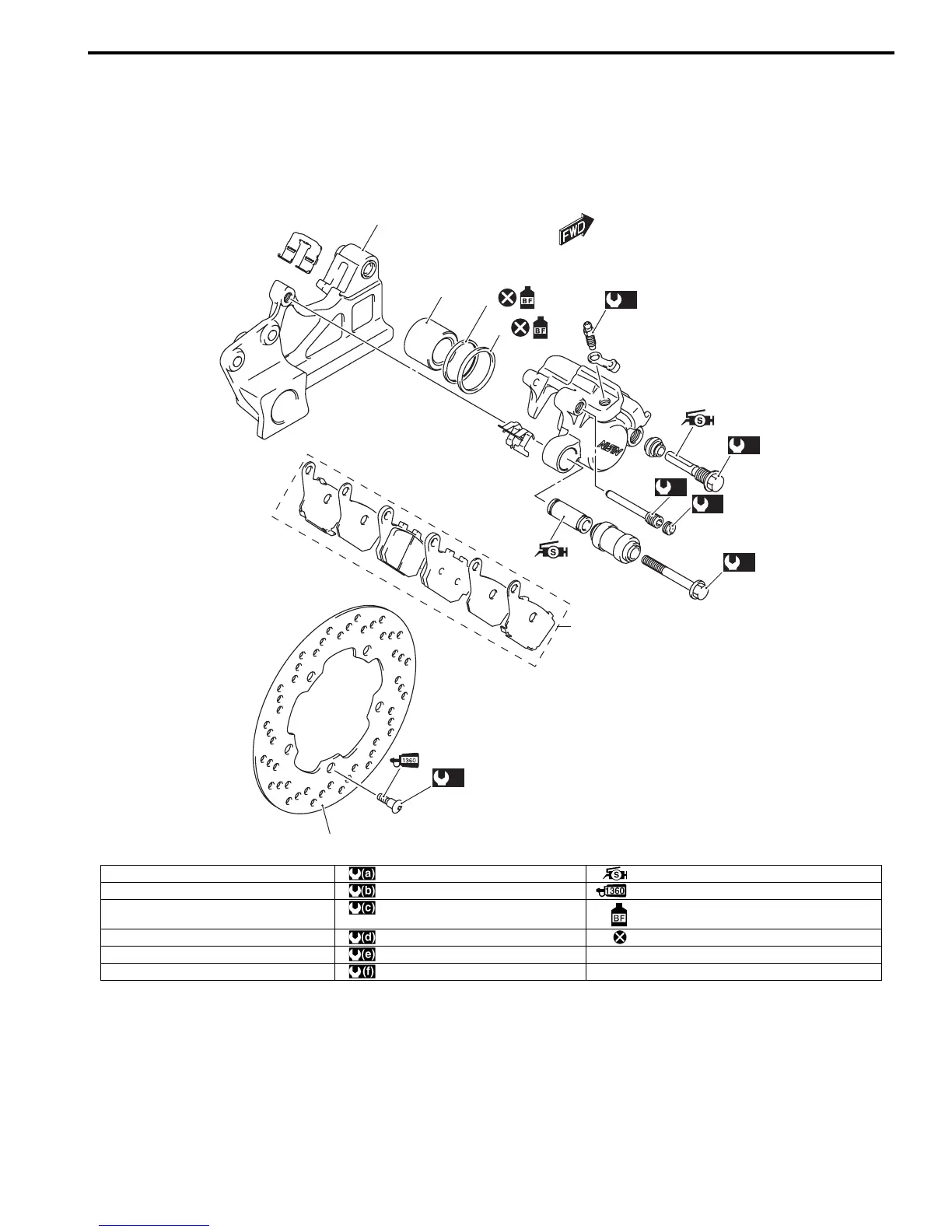

Rear Brake Components
B718H14306001
1
2
4,
3,
(a)
(b)
(c)
(d)
(e)
(f)
6
5
I649G1430001-05
1. Rear caliper bracket : 6.0 N⋅m (0.6 kgf-m, 4.5 lb-ft) : Apply silicone grease to sliding surface.
2. Piston : 27 N⋅m (2.7 kgf-m, 19.5 lb-ft) : Apply thread lock to thread part.
3. Piston seal : 18 N⋅m (1.8 kgf-m, 13.0 lb-ft) : Apply brake fluid.
4. Dust seal : 2.5 N⋅m (0.25 kgf-m, 1.8 lb-ft) : Do not reuse.
5. Rear brake pad/Shim set : 22 N⋅m (2.2 kgf-m, 16.0 lb-ft)
6. Rear brake disc : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
