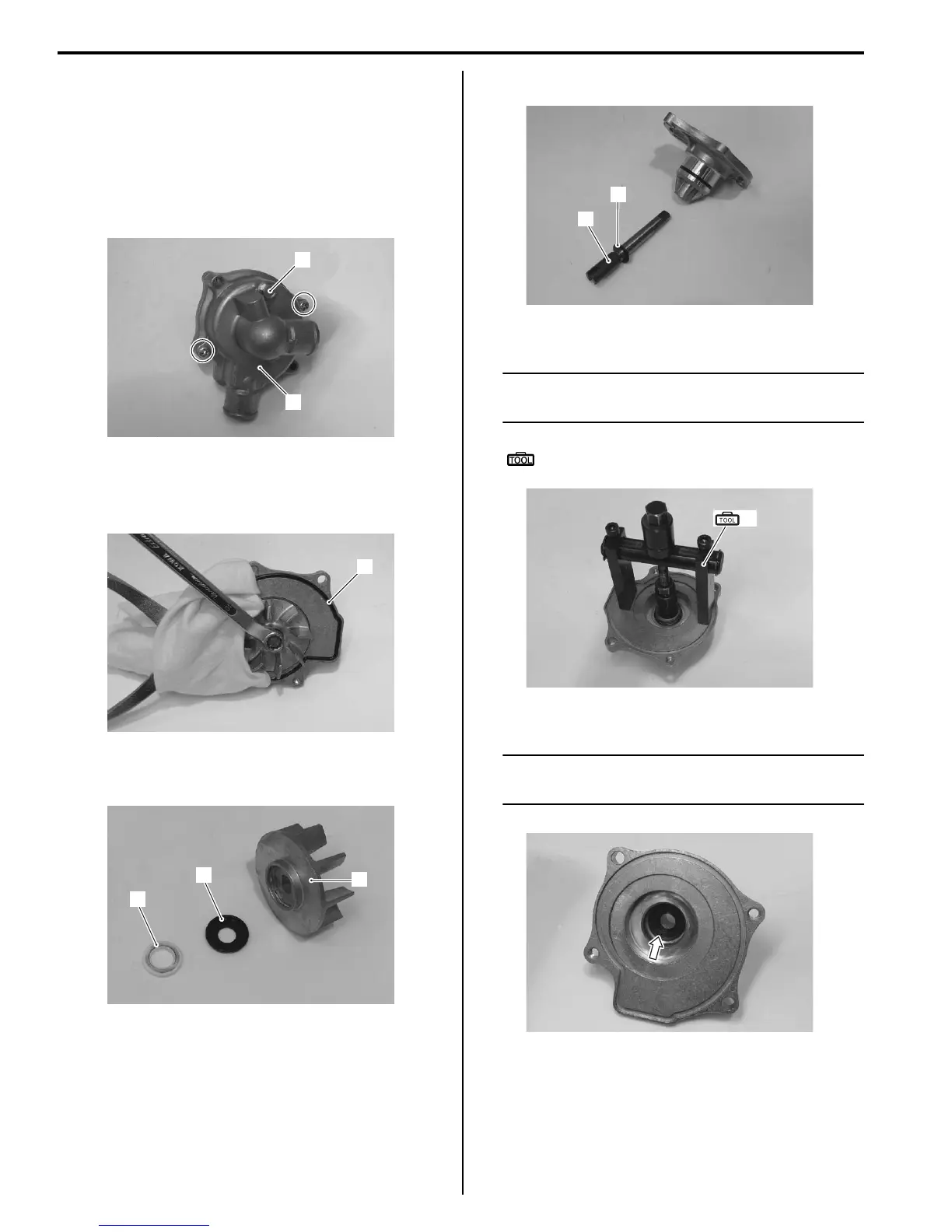

1F-14 Engine Cooling System:

Water Pump Disassembly and Assembly

B718H11606029

Refer to “Water Pump Removal and Installation

(Page 1F-13)”.

Disassembly

1) Remove the air vent bolt (1) if necessary.

2) Remove the water pump case (2).

3) Remove the O-ring (3).

4) Remove the impeller securing bolt by holding the

impeller with a water pump pliers.

5) Remove the mechanical seal ring (4) and rubber

seal (5) from the impeller (3).

6) Remove the impeller shaft (6) and washer (7).

7) Remove the mechanical seal with the special tool.

NOTE

If there is no abnormal condition, the

mechanical seal removal is not necessary.

Special tool

(A): 09921–20240 (Bearing remover set)

8) Remove the oil seal.

NOTE

If there is no abnormal condition, the oil seal

removal is not necessary.

I718H1160054-01

I718H1160012-01

I718H1160013-01

I718H1160014-01

(A)

I718H1160055-01

I718H1160016-01
