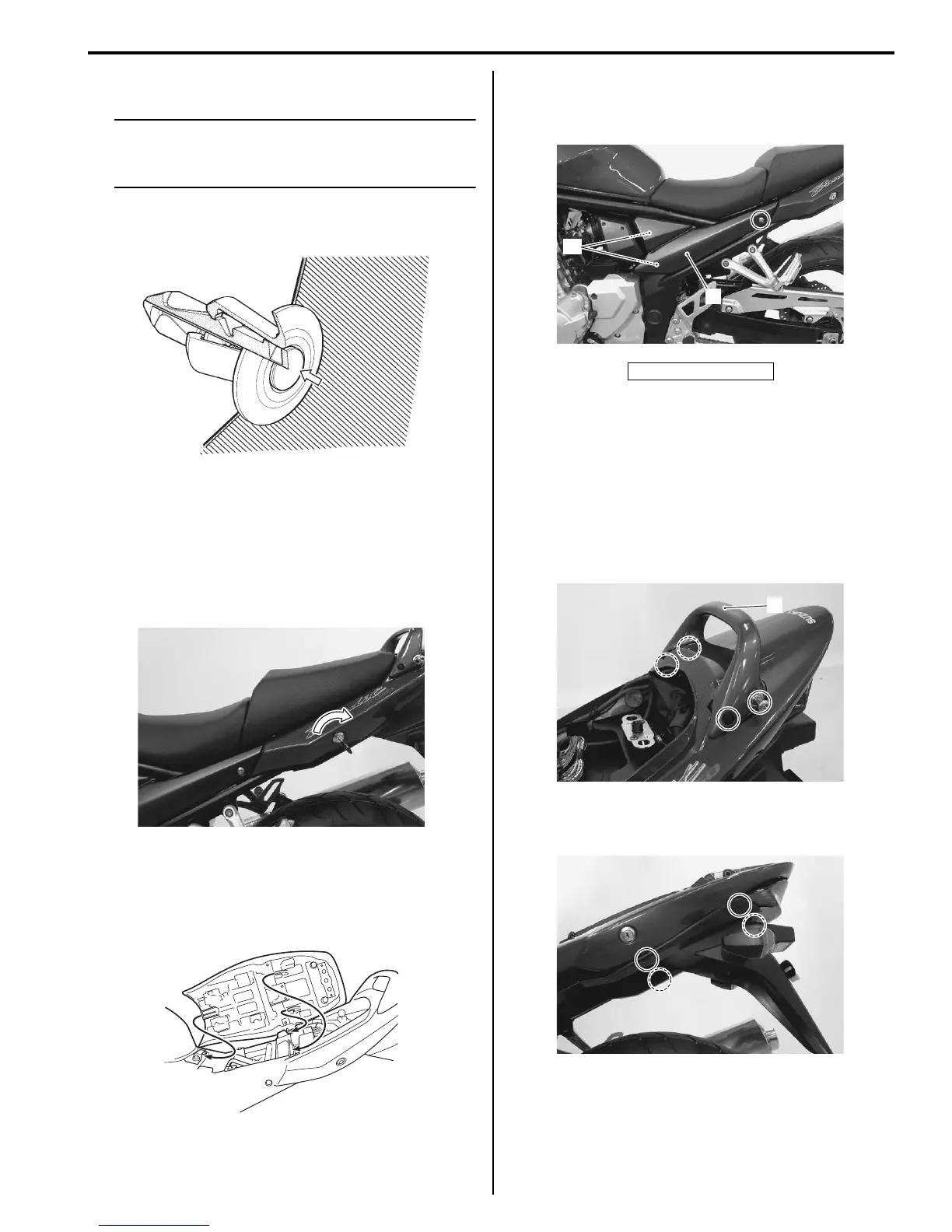

Exterior Parts: 9D-6
2) Insert the fastener into the installation hole.
NOTE
To prevent the pawl “A” from damage, insert
the fastener all the way into the installation
hole.
3) Push in the head of center piece until it becomes
flush with the fastener outside face.
Exterior Parts Removal and Installation
B718H19406004
Seat
Removal
1) Unlock the seat with the ignition key.
2) Remove the front and rear seats as an assembly.
Installation
Slide the seat hooks into the seat hook retainers and
push down firmly until the seat snaps into the locked
position.
Frame Cover
Removal
Remove the frame covers (1), left and right.
Installation
Install the frame covers in the reverse order of removal.
Pillion Rider Handle and Seat Tail Cover
Removal
1) Remove the seat.
2) Remove the frame covers, left and right.
3) Remove the pillion rider handle (1).
4) Remove the fasteners. Refer to “Fastener Removal
and Installation (Page 9D-5)”.
I649G1940007-02
I718H1940004-01
I718H1940032-03
“A”: Hooked point
1
“A”
I718H1940005-02
1
I718H1940006-01
I718H1940007-01
