Manual Transmission: 5B-3
Transmission Removal
B718H15206002

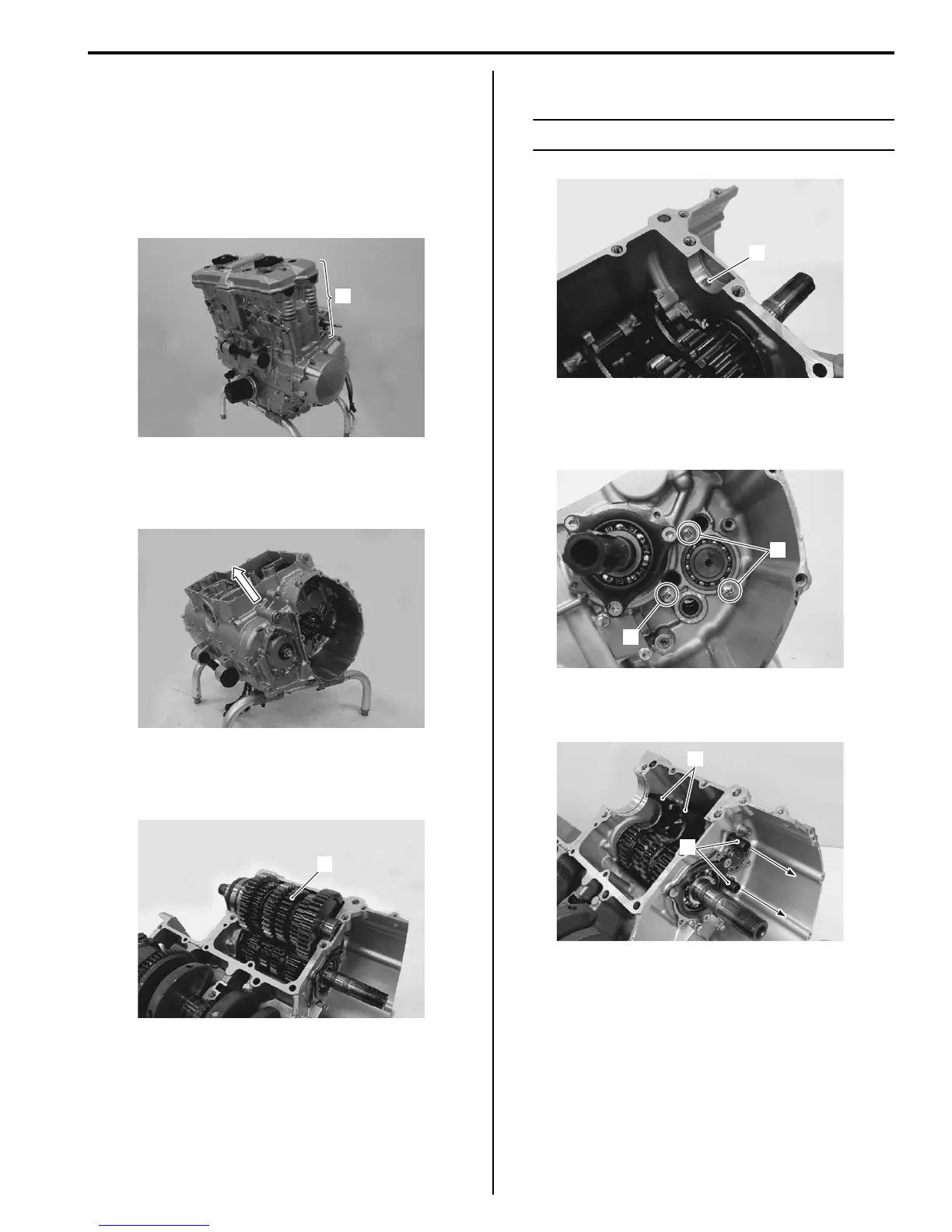

1) Remove the engine assembly from the frame. Refer
to “Engine Assembly Removal in Section 1D
(Page 1D-17)”.
2) Disassemble the engine top side (1). Refer to
“Engine Top Side Disassembly in Section 1D
(Page 1D-24)”.
3) Separate the upper and lower crankcases. Refer to
“Engine Bottom Side Disassembly in Section 1D
(Page 1D-53)”.
Driveshaft Assembly
1) Remove the driveshaft assembly (1).
2) Remove the bearing pin (2).
NOTE
Do not lose the bearing pin (2).
Gearshift Cam / Gearshift Fork
1) Remove the retainer screws (1).
2) Remove the gearshift fork shafts (2) and No.1
gearshift forks (3).
3) Remove the gearshift cam bearing and gearshift
cam (4).
1
I718H1140158-01
I718H1520004-01
1
I718H1520005-01
2
I718H1520006-01
1
1
I718H1520007-01
2
3
I718H1520008-01
