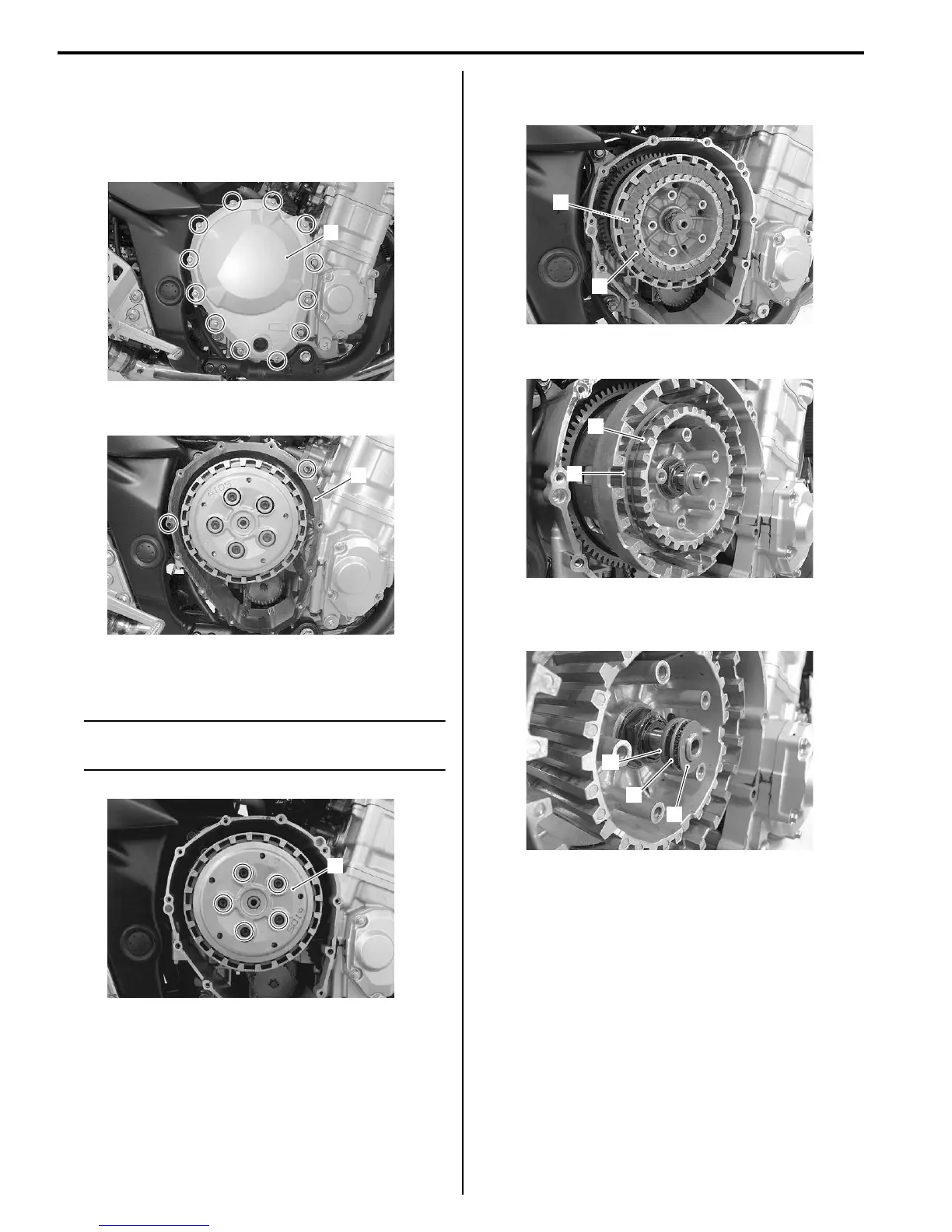

5C-13 Clutch:
Clutch Removal
B718H15306016
1) Drain engine oil. Refer to “Engine Oil and Filter
Replacement in Section 0B (Page 0B-10)”.
2) Remove the clutch cover (1).
3) Remove the gasket (2) and dowel pins.
4) Remove the clutch spring set bolts, clutch springs
and pressure plate (3).
NOTE
Loosen the clutch spring set bolts little by
little and diagonally.
5) Remove the clutch drive plates (4) and driven plates
(5).
6) Remove the spring washer (6) and its seat (7).
7) Remove the thrust washer (8), bearing (9) and clutch
push piece (10).
1
I718H1530029-01
2
I718H1530030-01
3
I718H1530071-01
4
5
I718H1530033-01
6
7
I718H1530034-02
10
9
8
I718H1530035-02
