Brake Control System and Diagnosis: 4A-18

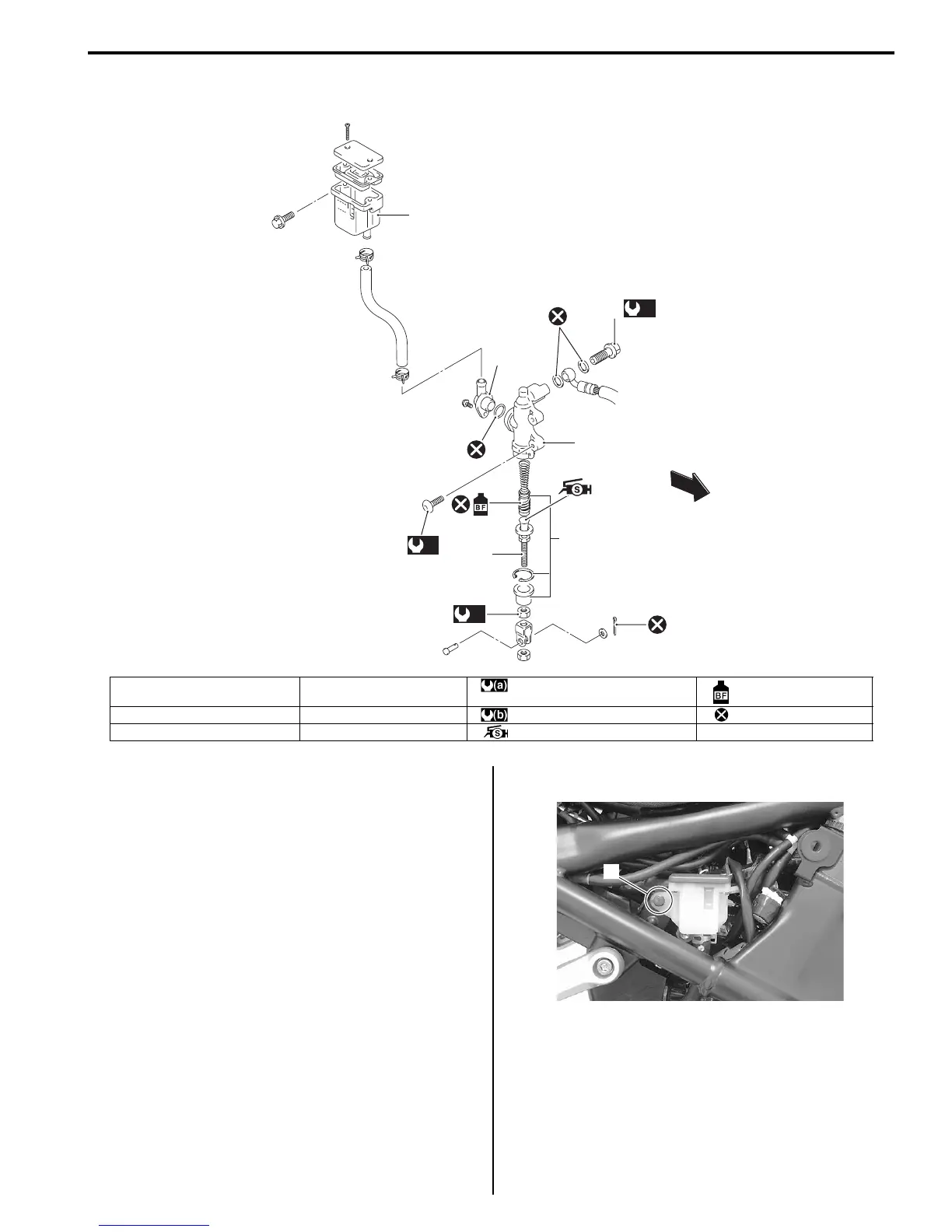

Rear Brake Master Cylinder Components
B718H14106015
Rear Brake Master Cylinder Assembly Removal
and Installation
B718H14106016
Removal
1) Remove the right frame cover. Refer to “Exterior
Parts Removal and Installation in Section 9D
(Page 9D-6)”.
2) Drain brake fluid. Refer to “Brake Fluid Replacement
(Page 4A-10)”.
3) Remove the reservoir mounting bolt (1).
1
3
(a)
2,
4
6
(a)
(b)
5
FWD
I649G1410029-06
1. Reservoir tank 4. Master cylinder : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft) : Apply brake fluid.
2. Brake hose union bolt 5. Piston/Cup set : 18 N⋅m (1.8 kgf-m, 13.0 lb-ft) : Do not reuse.
3. Brake hose connector 6. Push rod : Apply silicone grease.
1
I718H1410056-01
To Next Page
