Emission Control Devices: 1B-5
Among Those Acts Presumed to Constitute Tampering are the Acts Listed Below:
• Removing or puncturing the muffler, baffles, header pipes, screen type spark arrester (if equipped) or any other
component which conducts exhaust gases.
• Removing or puncturing the air cleaner case, air cleaner cover, baffles or any other component which conducts
intake air.
• Replacing the exhaust system or muffler with a system or muffler not marked with the same model specific code as
the code listed on the Motorcycle Noise Emission Control Information label.

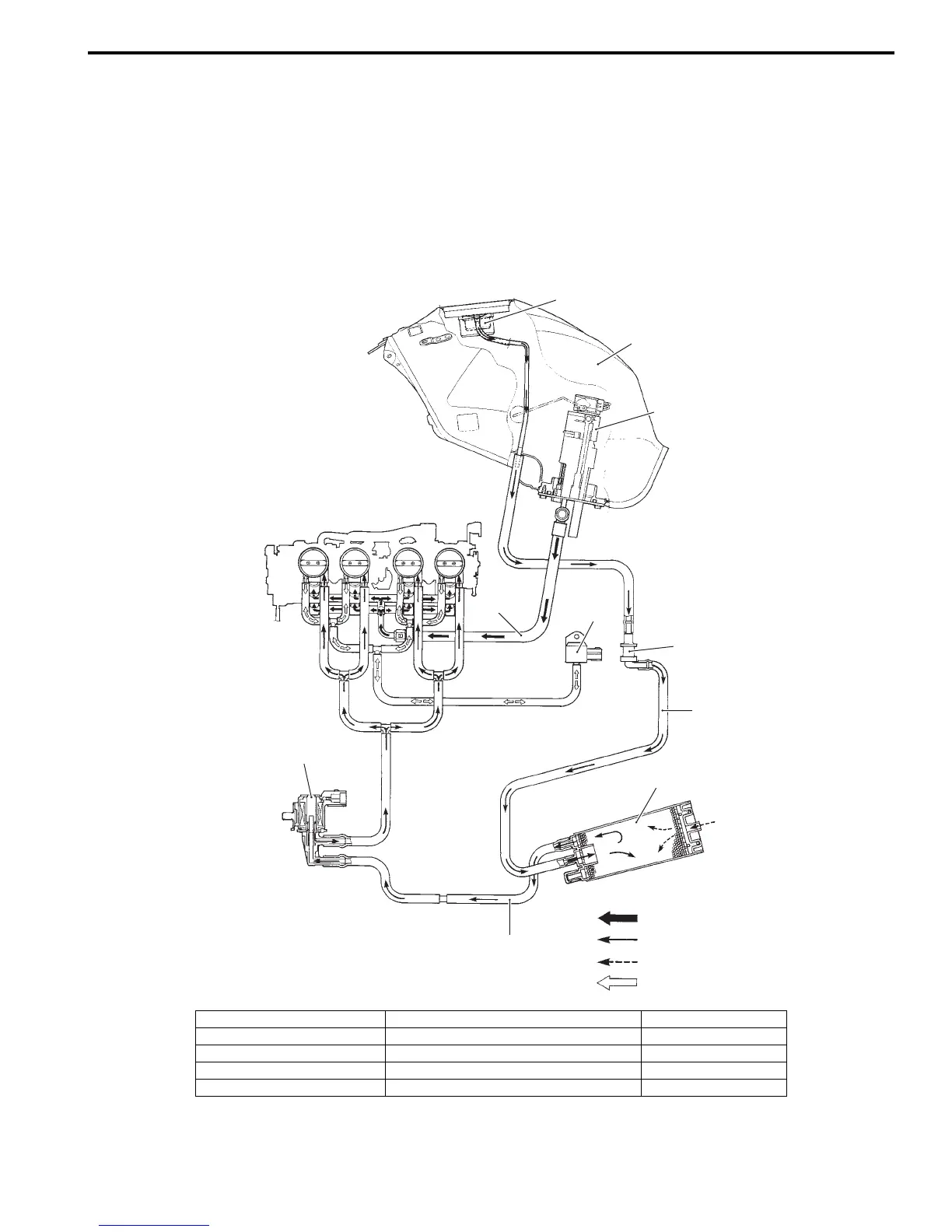

Evaporative Emission Control System Diagram (Only for E-33)
B947H11201005
1
2
3
5
6
7
8
9
“C”
“D”
10
4
“A”
“B”
I947H1120005-02
1. Fuel tank 6. IAP sensor “A”: Fuel
2. Fuel-vapor separator 7. Surge hose “B”: HC vapor
3. Fuel pump 8. EVAP canister “C”: Fresh air
4. Fuel feed hose 9. Purge hose “D”: Vacuum
5. Fuel shut-off valve 10. EVAP system purge control solenoid valve
