Exhaust System: 1K-12
3) Remove the side cowlings. Refer to “Exterior Parts
Removal and Installation” in Section 9D (Page 9D-
6).
4) Lift and support the fuel tank with the prop stay.
Refer to “Fuel Tank Removal and Installation” in
Section 1G (Page 1G-9).
5) Disconnect the HO2 sensor coupler (4).
6) Remove the muffler chamber heat guard No. 2 (5).
(RH only)
7) Loosen the muffler chamber connecting bolt (6).
8) Remove the muffler chamber (7).
9) Remove the muffler chamber heat guard No. 1 (8)
and HO2 sensor (9) from the muffler chamber.
CAUTION
!
• Be careful not to expose the HO2 sensor to
an excessive shock.
• Be careful not to twist or damage the HO2
sensor lead wires.
10) Remove the EXCV cables (10). Refer to “EXCV
Cable Removal and Installation” (Page 1K-6).
11) Move the radiator and oil cooler forward. Refer to
“Radiator Inspection and Cleaning” in Section 1F
(Page 1F-5).

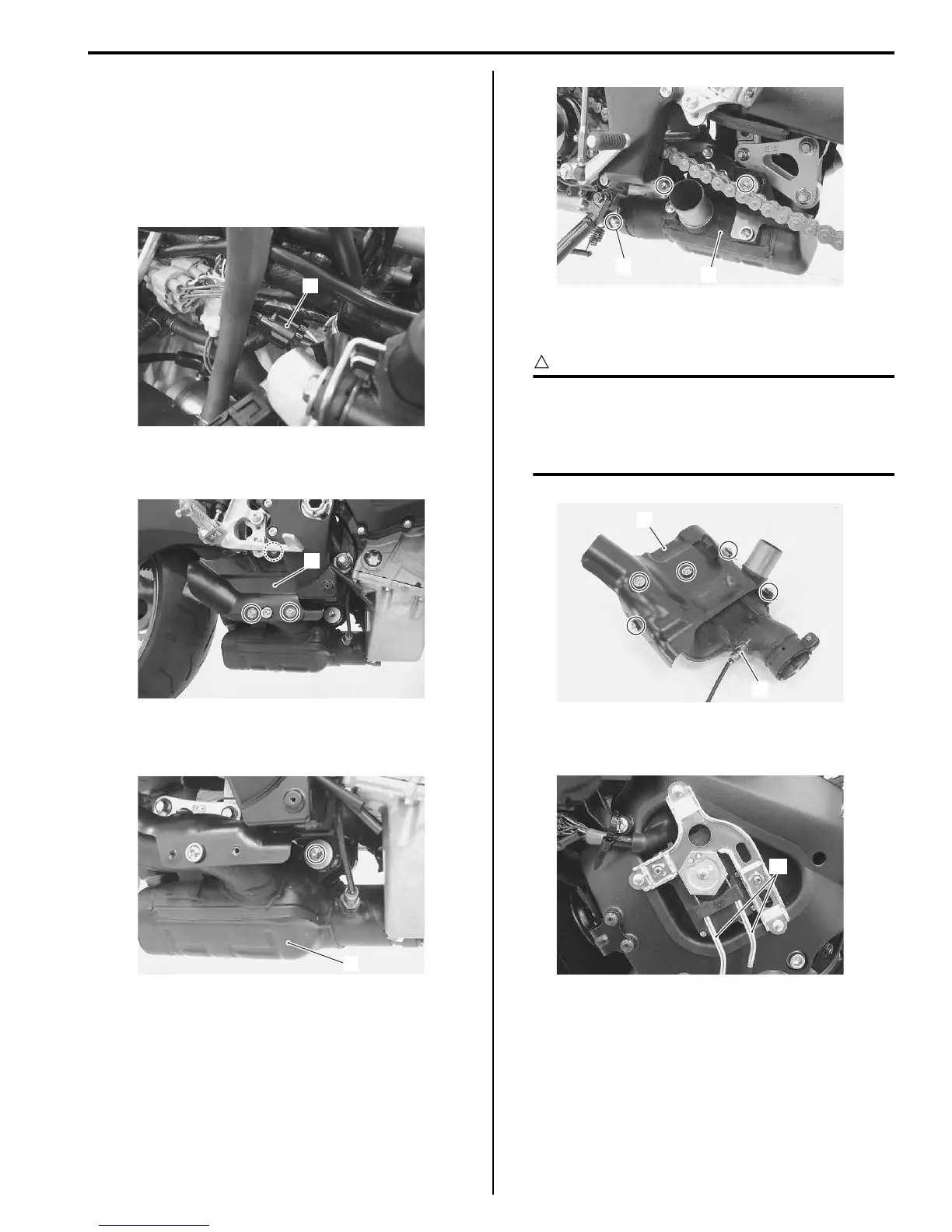

4
