SectionII:Installation
2.0.INS.SL-520X
brackets have been determined, use the mount brackets as a template for marking the
mounting holes in the truck chassis frame rails. Drill the 21/32” diameter holes required and
attach the brackets to the truck chassis with the 5/8” diameter bolts, washers, and locking
hex nuts provided. Torque to 220 ft.lb.

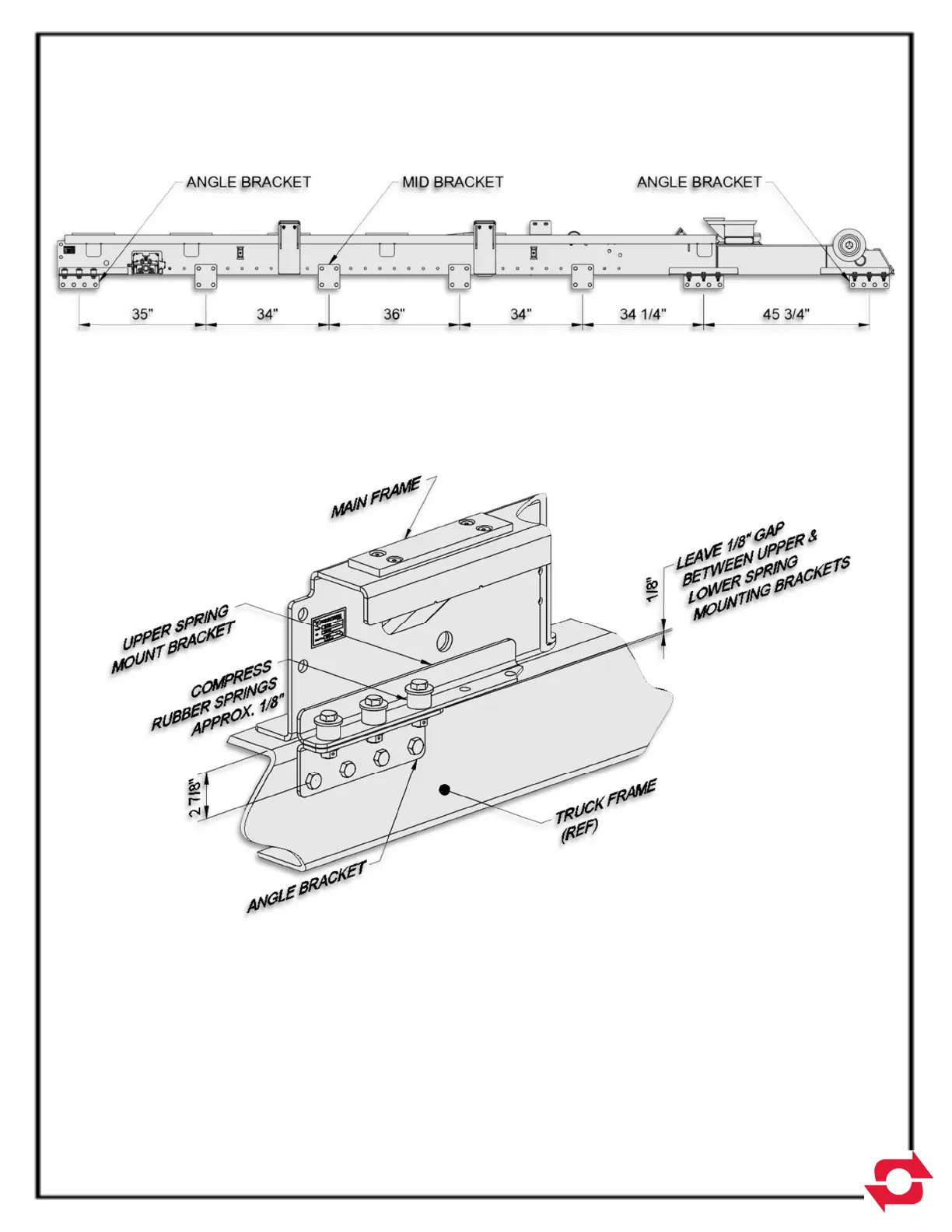

3. Fasten the mount brackets to the hoist main frame as indicated on Fig. C and Fig. D. You
may need to modify the mount brackets or add shim plates to allow for variances in the
width of the truck chassis as well as to allow for top rivets, stepped channels, etc.
