swaploader SL-520X - Parts Identification; Base Hoist and Frame Components

SectionV:Parts
5.0.PAR.SL-520X
HEX HEAD CAP SCREW
TORQUE SPECS
BOLT
SIZE
SAE GR 8
W/ LOCK WASHER
(FT-LBS)
3/8 53
7/16 85
1/2 130
5/8 258
3/4 459
7/8 739
1 1108
Note: Apply Loctite 243 (Blue) to
all bolts.

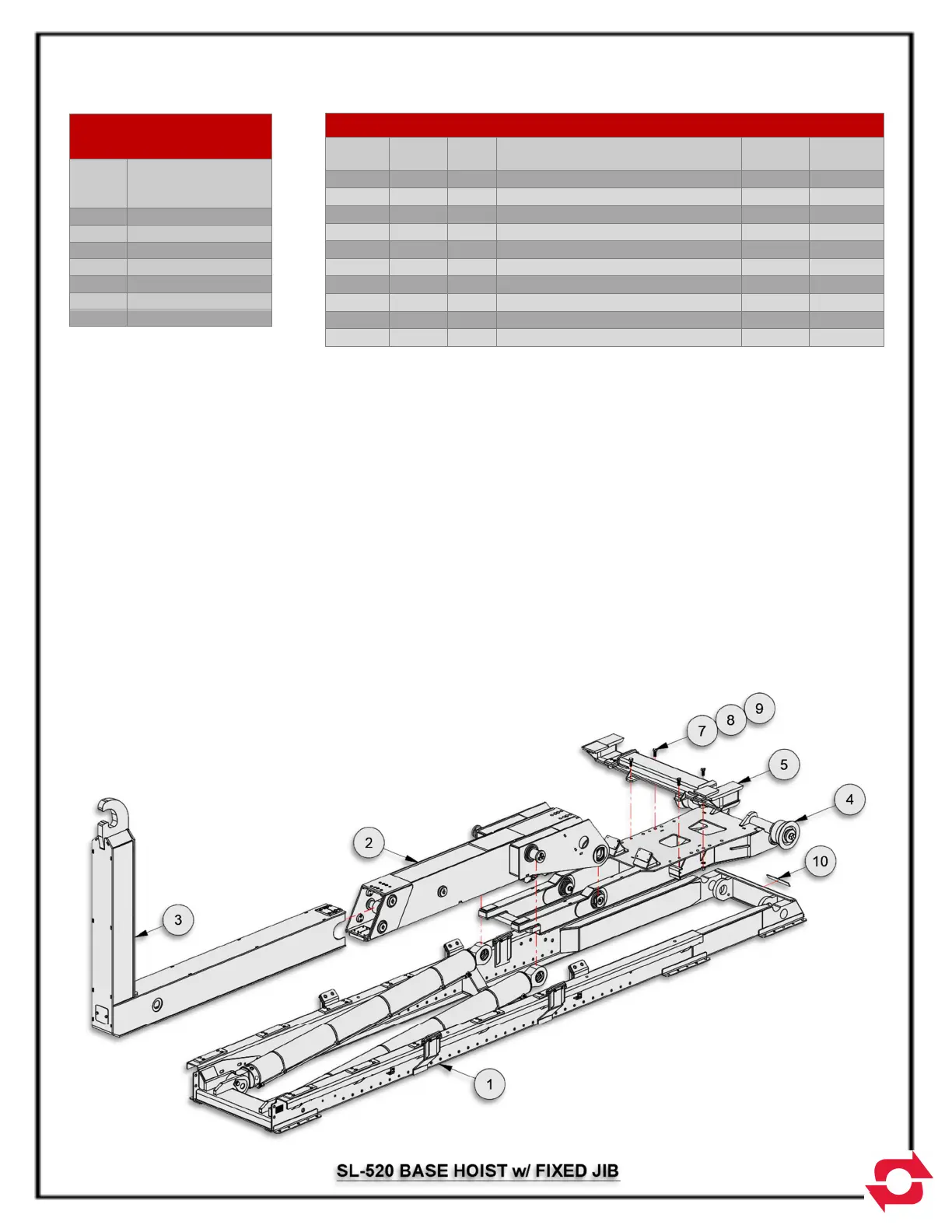

45H01 - BASE HOIST ASSEMBLY SL-520X
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-lb/all
1
45H03 1 Main Frame Sub-Assembly 2776.95 2776.95
2
45H08 1 Outer Tube Sub-Assembly 1101.31 1101.31
3
45H14 1 Fixed Jib Sub-Assembly 712.45 712.45
4
45H16 1 Pivot Joint Sub-Assembly 900.47 900.47
5
45H23 1 Body Lock w/Shelf, SL-520X 235.69 235.69
*
6
91H77 1 Base Cyl Circuit, 520X 51.54 51.54
7
00769 4 Washer, Lock 3/4 0.01 0.04
8
00P17 4 Nut, Hex 3/4-10 UNC Gr8 0.13 0.52
9
00P89 4 HHCS 3/4-10 UNC x 1-3/4 Gr8 0.33 1.32
10
90P90 1 Name Plate Insert 0.09 0.09
* Item not shown.
5-1
