swaploader SL-520X - Fixed Jib Sub-Assembly

SectionV:Parts

5.0.PAR.SL-520X









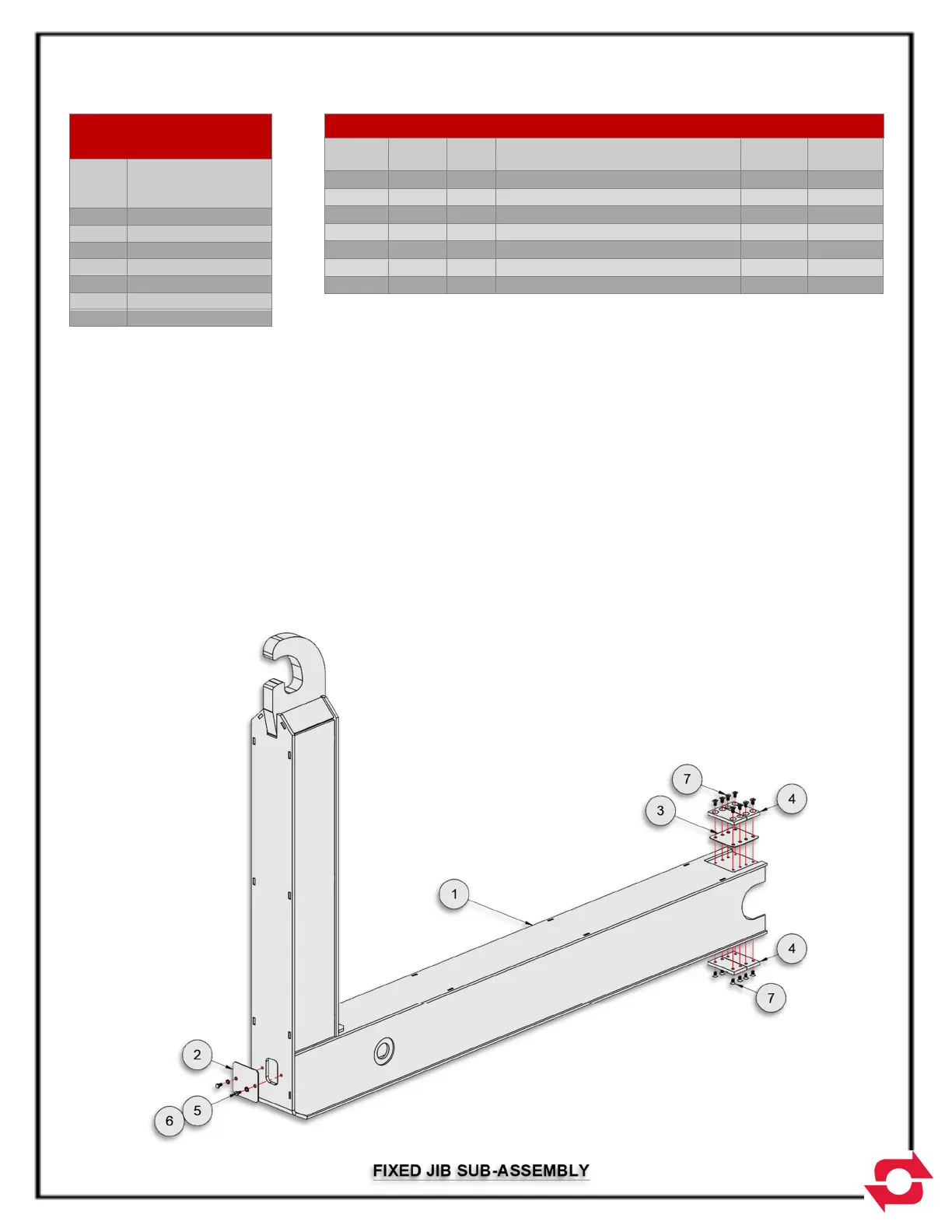

45H14 – FIXED JIB SUB-ASSEMBLY SL-520X
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-lb/all
1 45H15 1 Fixed Jib Wdmt 62 733.57 733.57
2 62H11 1 Cover, Jib 5-1/4x11GAx5-1/4 0.92 0.92
3 77H05 1 Shim 5-1/2 x 16GA x 5-1/2 0.48 0.48
4 80H35 4 Wear Pad, 2-3/4x1/2x5-1/2 0.28 1.12
5 00755 2 Washer, Lock 3/8 0.03 0.06
6 00P03 2 HHCS 3/8-16 UNC x 3/4 Gr8 0.04 0.08
7 02P08 16 FHCS 3/8-16 UNC x 3/4 ZP 0.03 0.48
HEX HEAD CAP SCREW
TORQUE SPECS
BOLT
SIZE
SAE GR 8
W/ LOCK WASHER
(FT-LBS)
3/8 53
7/16 85
1/2 130
5/8 258
3/4 459
7/8 739
1 1108
Note: Apply Loctite 243 (Blue) to
all bolts.
5-7
