swaploader SL-520X - Jib, Cylinder, and Lock Components

SectionV:Parts


5.0.PAR.SL-520X





 


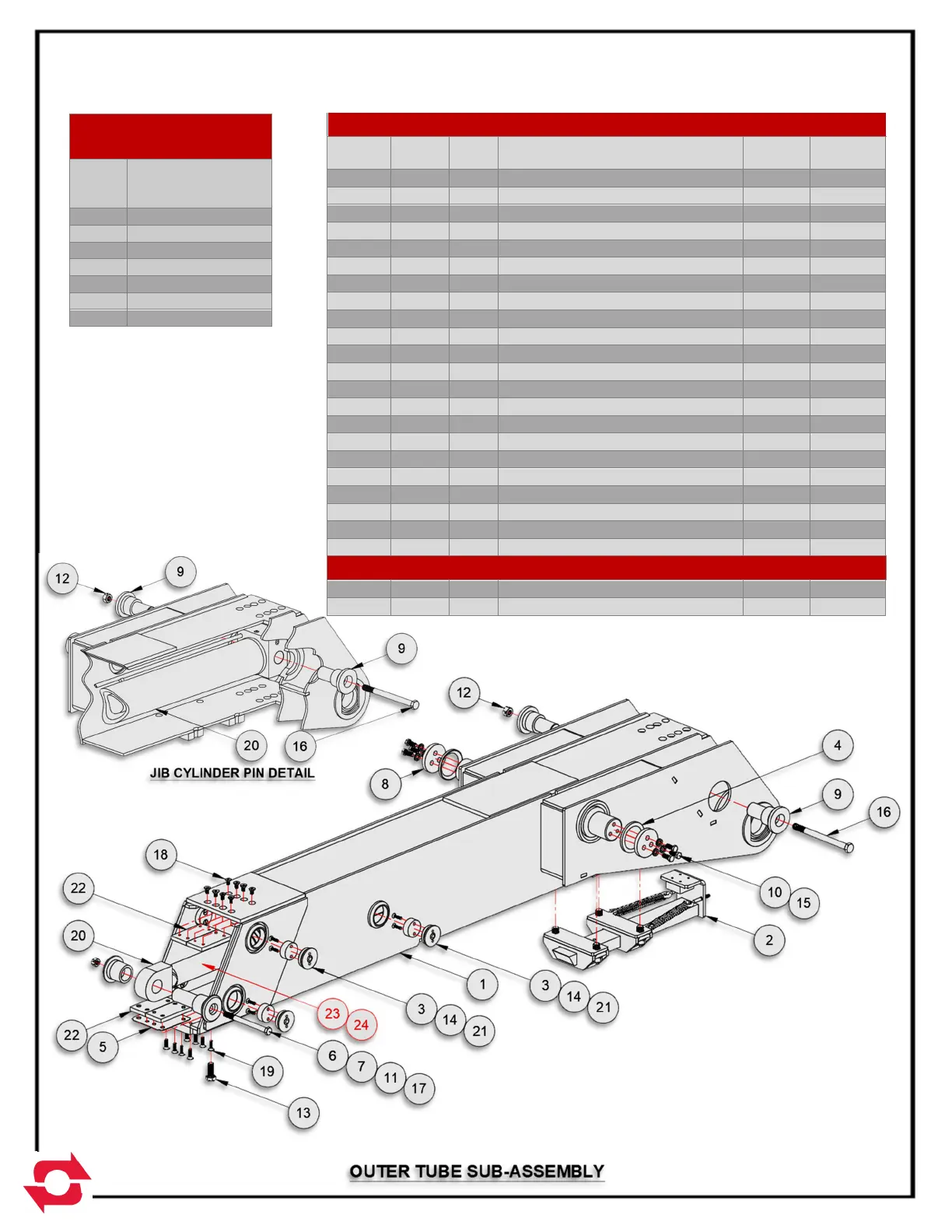

45H08 – OUTER TUBE SUB-ASSEMBLY SL-520X
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-lb/all
1 45H09 1 Outer Tube Weldment 744.90 744.90
2 45H10 1 Pivot Lock Sub-Assembly 58.80 58.80
3 45H32 6 Plug, Wear Pad Mnt 1.05 6.30
4 77H04 2 Spacer, OT 3 x 5/16 0.30 0.60
5 77H05 1 Shim 5-1/2 x 16GA x 5-1/2 0.48 0.48
6 77H07 1 Pin, Jib/Cyl 1-3/4 x 6-11/32 5.91 5.91
7 77H09 1 Cap, Jib/Cyl 3-1/2 x 2-3/16 2.63 2.63
8 85H14 2 Pin Cap, 1/2 x 3-3/4 1.46 2.92
9 86H08 2 Pin, OT/Cyl 1-3/4 x 2-7/8 4.39 8.78
10 00P31 6 HHCS 1/2-13 UNC x 1-1/4 0.10 0.60
11 00P55 1 Nut, Lock 5/8-11 UNC Gr8 0.08 0.08
12 00P72 1 Nut, Lock 3/4-10 UNC Gr8 0.13 0.13
13 00P89 1 HHCS 3/4-10 UNC x 1-3/4 Gr8 0.33 0.33
14 01P16 12 FHCS 5/16-18 UNC x 1-1/4 Br 0.03 0.36
15 01P30 6 Washer, Disc Lock 1/2 Pr 0.02 0.12
16 01P36 1 HHCS 3/4-10 UNC x 9-1/2 Gr8 1.29 1.29
17 01P43 1 HHCS 5/8-11 UNC x 7-12 Gr8 0.71 0.71
18 02P08 8 FHCS 3/8-16 UNC x 3/4 ZP 0.03 0.24
19 02P09 8 FHCS 3/8-16 UNC x 1-1/4 ZP 0.04 0.32
20 23P16 1 Hyd Cyl, 4x2.75x52 332.71 332.71
21 91P40 6 Wear Pad Ø2-1/4x7/8 0.11 0.66
22 91P41 4 Wear Pad 2-3/4x1/2x5-1/2 THD 0.30 1.20
JIB CYLINDER SERVICE PARTS
23 23P43 Seal Kit 0.02
24 23P44 C'Bal Cart, 5000 PSI CBEG-LJN 0.50
HEX HEAD CAP SCREW
TORQUE SPECS
BOLT
SIZE
SAE GR 8
W/ LOCK WASHER
(FT-LBS)
3/8 53
7/16 85
1/2 130
5/8 258
3/4 459
7/8 739
1 1108
Note: Apply Loctite 243 (Blue) to
all bolts.
5-4
