SectionV:Parts

5.0.PAR.SL-520X



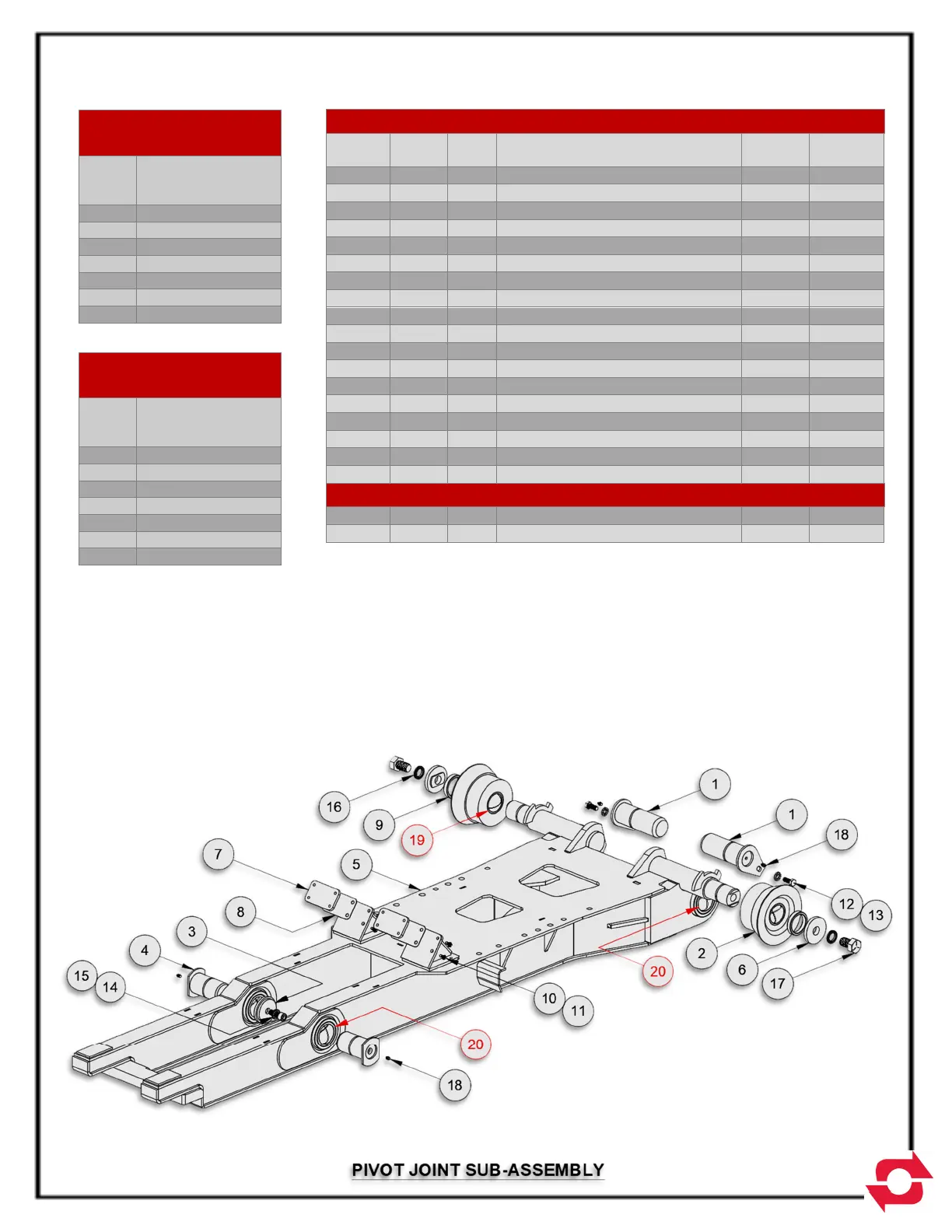

45H16 – PIVOT JOINT SUB-ASSEMBLY SL-520X
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-lb/all
1 40H84 2 Pin, PJ/MF 3 x 8 16.99 33.98
2 40H93 2 Roller Assy, Ø7x 2-1/2 41.78 83.56
3 43H79 2 Pin Cap, 3/4 x 4 1.42 2.84
4 43H80 2 Pin, PJ/OT 3 x 5-3/8 11.01 22.02
5 45H17 1 Pivot Joint Wdmt, SL-520X 735.14 735.14
6 76H80 2 Spacer, Roller 3-1/2 x 11/16 1.77 3.54
7 76H92 2 Top Plate, Tube Stop 1.83 3.66
8 77H06 2 Shim 3-1/4 x 22GA x 5-1/2 0.16 0.32
9 83H10 2 Spacer, Roller 11/16x2-13/16 0.90 1.80
10 00755 8 Washer, Lock 3/8 0.03 0.24
11 00P03 8 HHCS 3/8-16 UNC x 3/4 Gr8 0.04 0.32
12 00P56 2 HHCS 5/8-11 UNC x 1-1/2 Gr8 0.18 0.36
13 01P31 2 Washer, Disc Lock 5/8 Pr 0.03 0.06
14 01P32 2 Washer, Disc Lock 3/4 Pr 0.05 0.10
15 01P52 2 SHCS 3/4-10 UNC x 2 0.20 0.40
16 02P07 2 Washer, Disc Lock 1-1/4 Pr 0.10 0.20
17 14P22 2 HHCS 1-1/4-7 UNC x 2 1.30 2.60
18 90P03 6 Grease Zerk, 1/8-27 NPT Str 0.01 0.06
BUSHINGS
19 84H35 2 Brz Brg, 2.75IDx4.00x3.25OD
20 50P20 4 Brz Brg, 3IDx3-7/16x3-3/4OD
HEX HEAD CAP SCREW
TORQUE SPECS
BOLT
SIZE
SAE GR 8
W/ LOCK WASHER
(FT-LBS)
3/8 53
7/16 85
1/2 130
5/8 258
3/4 459
7/8 739
1 1108
Note: Apply Loctite 243 (Blue) to
all bolts.
SOCKET HEAD CAP
SCREW TORQUE SPECS
BOLT
SIZE
SAE GR 8
W/ LOCK WASHER
(FT-LBS)
3/8 62
7/16 103
1/2 151
5/8 291
3/4 516
7/8 831
1 1246
Note: Apply Loctite 243 (Blue) to
all bolts.
5-3
