SectionIII:Operation
3.2.OPE.RollerAdj
REAR ROLLER SPACING ADJUSTMENT INSTRUCTIONS

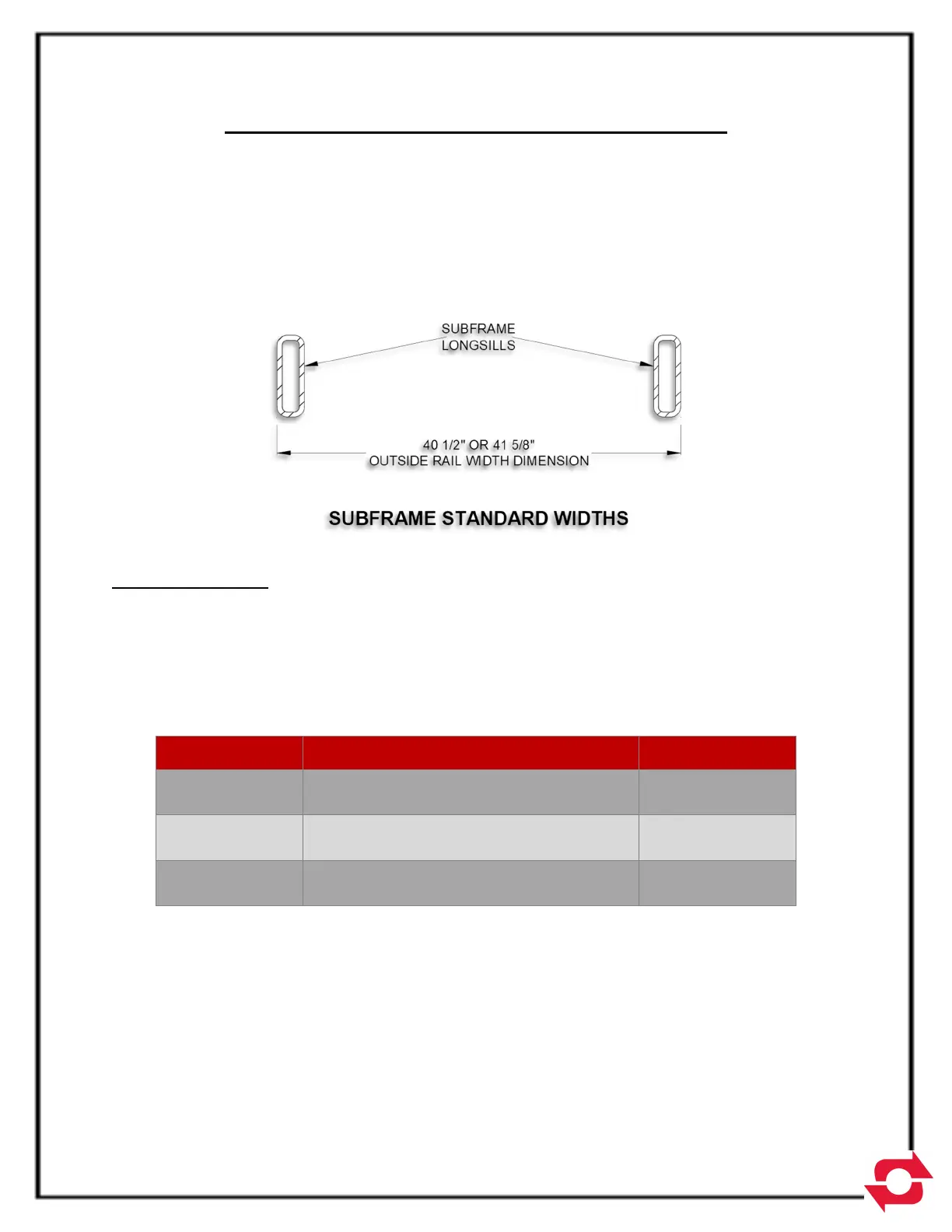

Industry standard for the outside rail width dimension on subframe longsills is either 40 1/2” or
41-5/8” (see illustration below). For most 35 5/8” hook height (100 series) and 53 7/8” hook
height (200/300 series) subframes the outside width dimension of the longsill rails is 41 5/8”. For
most 61 3/4” hook height (400 series) subframes the outside width dimension of the longsill rails
is 40 1/2”.
From this point forward we will refer to the rear rollers setup for 40 1/2” outside width as ‘narrow
spacing’ and rear rollers setup for 41 5/8” outside width as ‘wide spacing’.
HOIST STANDARD:
All SwapLoader hooklift hoists are made so that the rear rollers can be spaced at either the wide
spacing or narrow spacing depending on the subframe design (the only exception is the SL-105
which can only accommodate a ‘wide spacing’ or 41 5/8” outside width). Unless instructed
otherwise SwapLoader will ship hoists with the rear rollers setup per the previously discussed
industry standard for a given hook height of subframe, or as detailed in the chart below.
SUBFRAME HOOK
HEIGHT (SERIES)
HOIST MODELS
STANDARD ROLLER
SPACING
35 5/8”
(100 SERIES)
SL-105, SL-145, SL-160, SL-180, SL-185, SL-212,
SL-214
41 5/8”
(WIDE WIDTH)
53 7/8”
(200 & 300 SERIES)
SL-220, SL-222, SL-240, SL-2418
41 5/8”
(WIDE WIDTH)
61 3/4”
(400 SERIES)
SL-330, SL-400, SL-406, SL-412, SL-518, SL-520,
SL-520X, SL-650
40 1/2”
(NARROW WIDTH)
