SectionIII:Operation
3.2.OPE.RollerAd

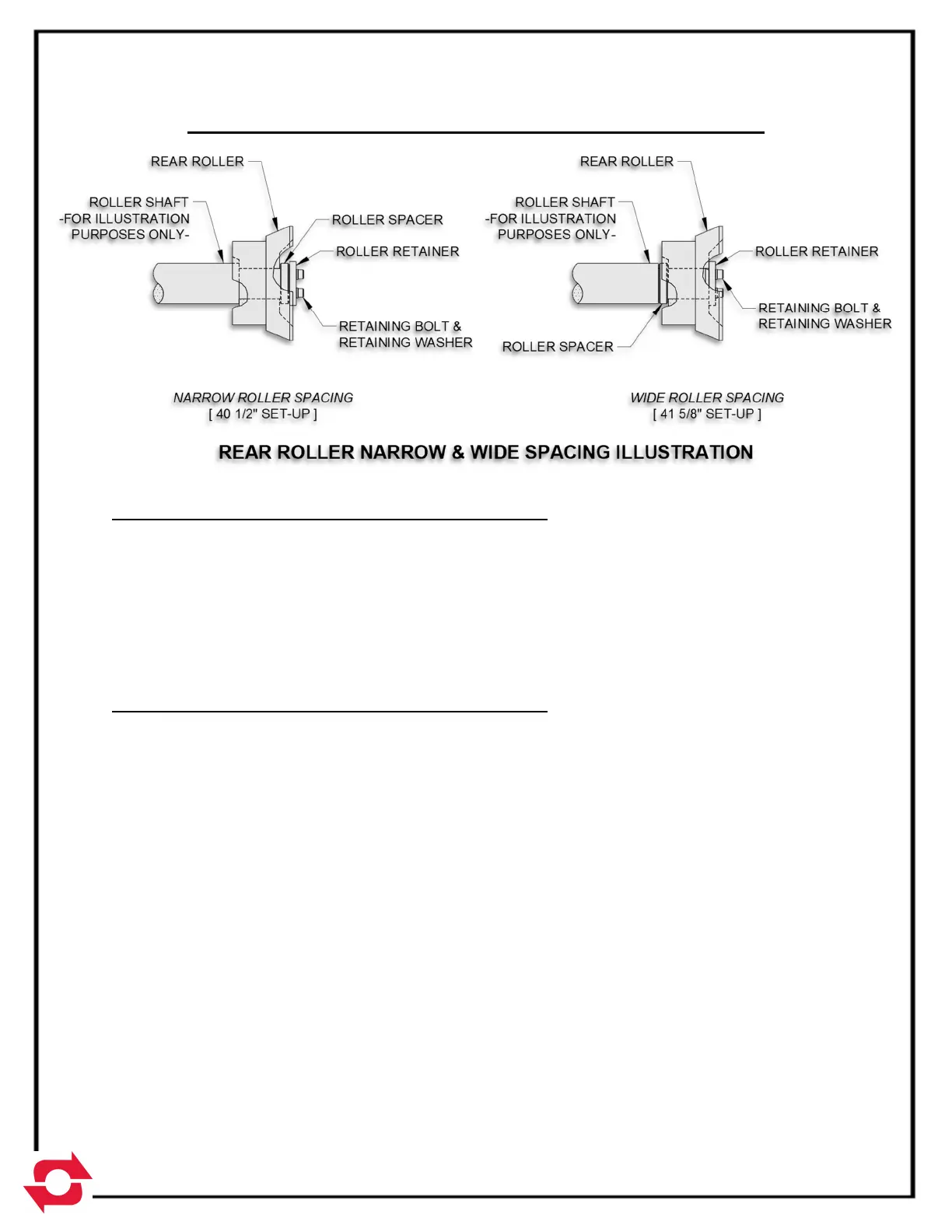

REAR ROLLER SPACING ADJUSTMENT INSTRUCTIONS (cont’d)
NARROW TO WIDE ROLLER SPACING ADJUSTMENT:
To change a hoist from the narrow roller spacing to a wide roller spacing follow these
instructions:
1. Loosen and remove the retaining bolts, washers and roller retainer.
2. Remove the roller spacer and rear roller from the hoist roller shaft.
3. Place the roller spacer on first; then place the rear roller back on the roller shaft.
4. Replace and tighten the retaining bolts, retaining washer and roller retainer.
WIDE TO NARROW ROLLER SPACING ADJUSTMENT:
To change a hoist from the wide roller spacing to a narrow roller spacing follow these
instructions:
1. Loosen and remove the retaining bolts, washers and roller retainer.
2. Remove the rear roller and roller spacer from the hoist roller shaft.
3. Place the rear roller on first; then place the roller spacer back on the roller shaft.
4. Replace and tighten the retaining bolts, washers and roller retainer.
