SectionII:Installation

2.0.INS.SL-520X

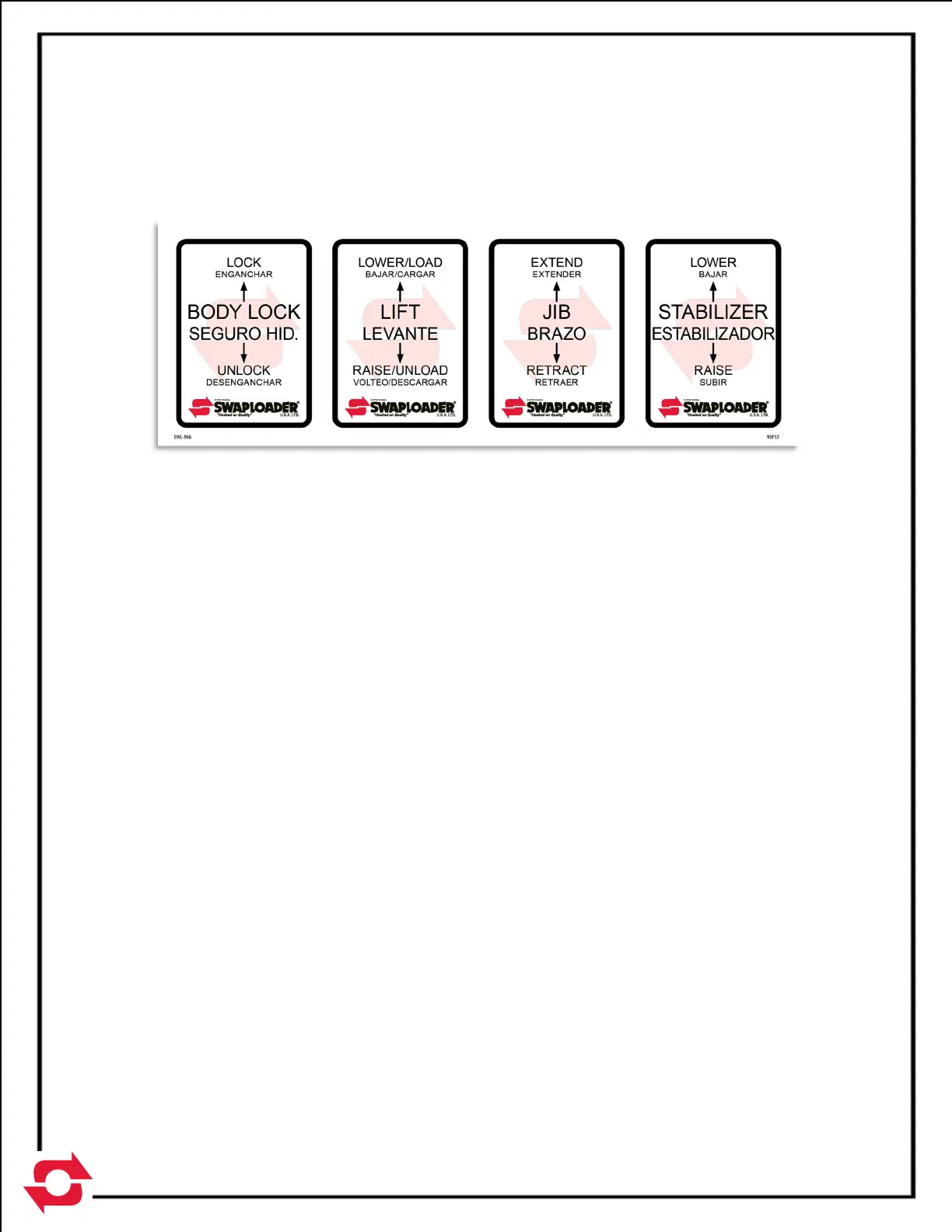

5. After the start procedure has been completed on the hoist, verify that the movement of each
control lever corresponds to the movement of the cylinders per the figure below. Operate the
stabilizer through 5 to 8 cycles to remove the air from the hydraulic cylinders and lines.
2-14
