SectionII:Installation‐Accessories
2.1.INS.ACC.52H11

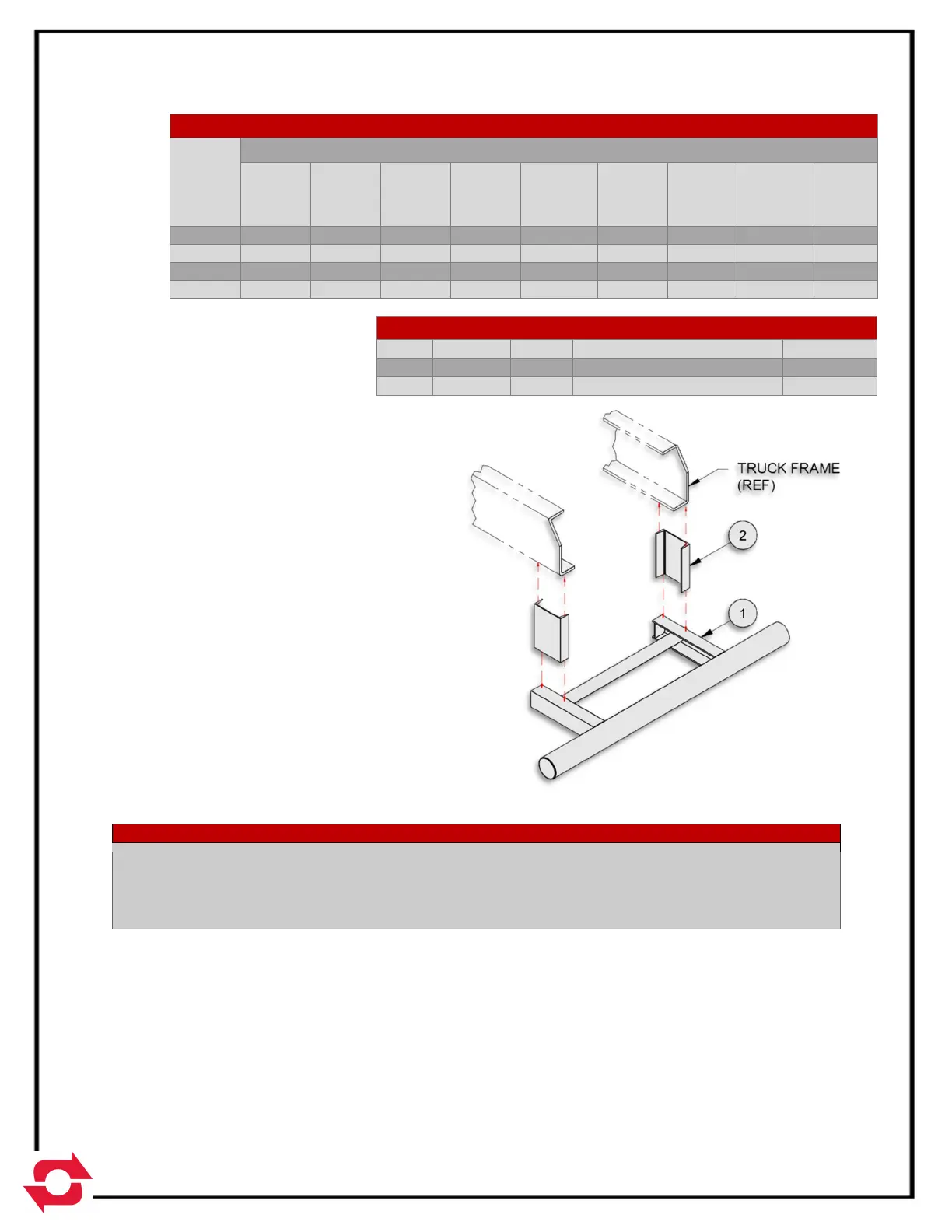

MATERIAL LIST FOR 52H11
ITEM PART # QTY DESCRIPTION WT-lb/ea.
1 52H12 1 Rear Bumper Weldment 95.66
2 63H94 2 Vertical Channel 9.58
Figure
Figure B
NOTE:
1. PRIOR TO ANY WELDING, CONSULT THE TRUCK MANUFACTURE FOR ANY SPECIAL PRECAUTIONS THAT MAY
NEED TO BE TAKEN. TYPICALLY THE BATTERIES MUST BE DISCONNECTED AND THE GROUND LEAD FROM
THE WELDER SHOULD BE AS CLOSE TO THE PART BEING WELDED TO AVOID THE POSSIBILITY OF ARCING
ACROSS BEARINGS, GEARS, ETC.
2. ALL WELDS SHOULD BE DONE UTILIZING A LOW HYDROGEN WELDING PROCESS.
BUMPER LOCATION CHART
DIM. A
DIMENSION B (MAX)
SL-105 SL-145
SL-160
SL-212
SL-214
SL-220
SL-222
SL-240
SL-2418 SL-330
SL-400
SL-412 SL-406
SL-518X
SL-520
SL-520X
SL-650
24 5/8” 13 1/2" 15 3/4" 15 1/4" 17” 14 1/4" 14” 13 1/2" 16 1/2” 18”
22 5/8” 12 1/4" 14 1/2" 14” 15 3/4" 13” 12 3/4" 12” 15”
20 5/8” 11” 13” 12 3/4" 14 1/4" 11 3/4"
18 5/8” 9 3/4" 11 3/4" 11 1/2"
2-16
