CHANGING HOOK HEIGHT: 54” TO 62” JIB HEIGHT ADJUSTMENT PROCEDURE
cont’d

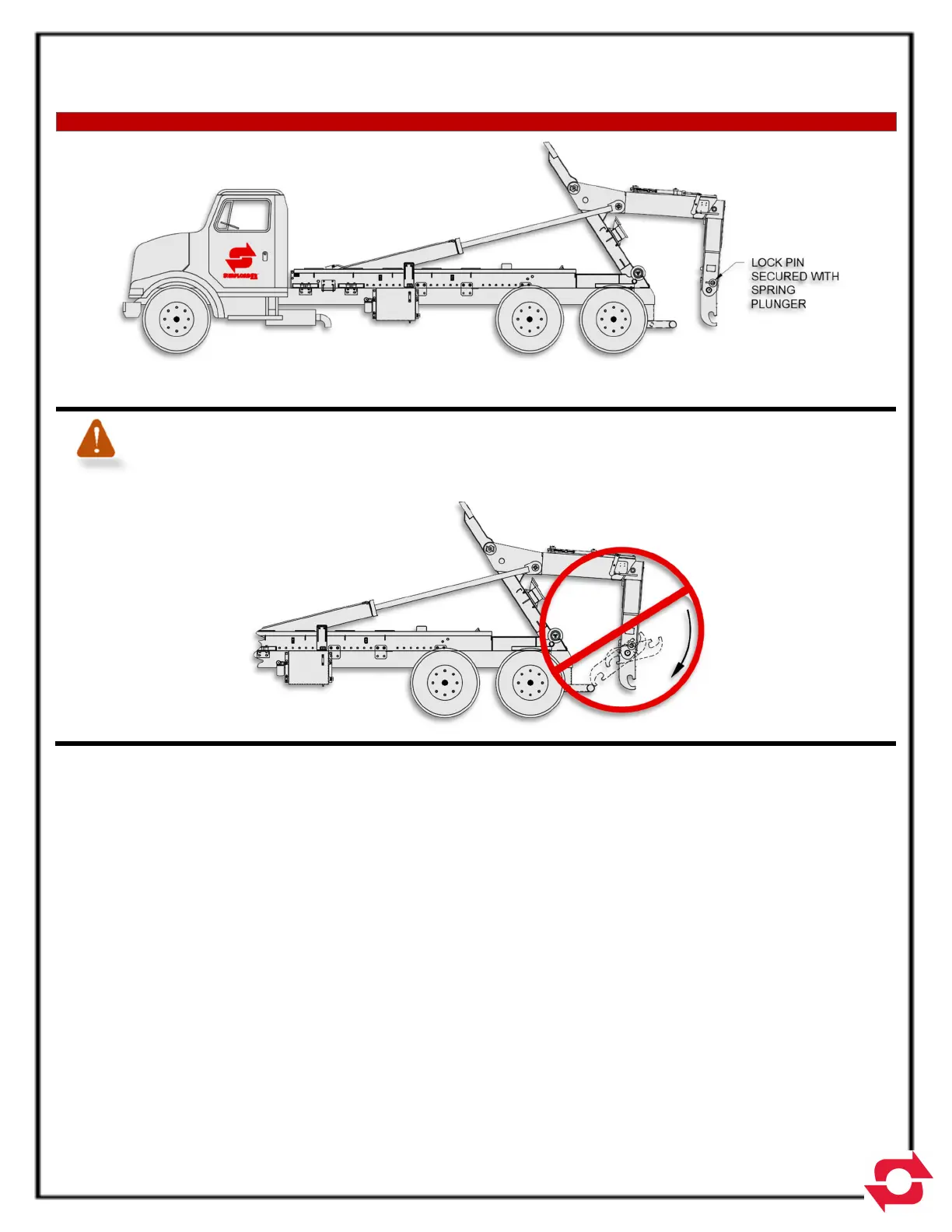

STEP 4. CONTINUE TO TILT TELESCOPIC ARM REARWARD UNTIL THE DUMP CYLINDERS ARE FULLY EXTENDED.
PUSH LOCK PIN BACK IN UNTIL SPRING PLUNGER ENGAGES. ENSURE PIN IS LOCKED IN PLACE.
WARNING:
DO NOT REMOVE LOCK PIN ON THE ADJUSTABLE JIB WHILE JIB IS IN THE 54” HOOK POSITION AND
THE TELESCOPIC ARM IS TILTED REARWARD (AS SHOWN). POSSIBLE PROPERTY DAMAGE AND/OR
PERSONAL INJURY MAY RESULT.
