SectionIII:Operation
3.0.OPE.SL-520X
CHANGING HOOK HEIGHT: 62” TO 54” JIB HEIGHT ADJUSTMENT PROCEDURE
cont’d

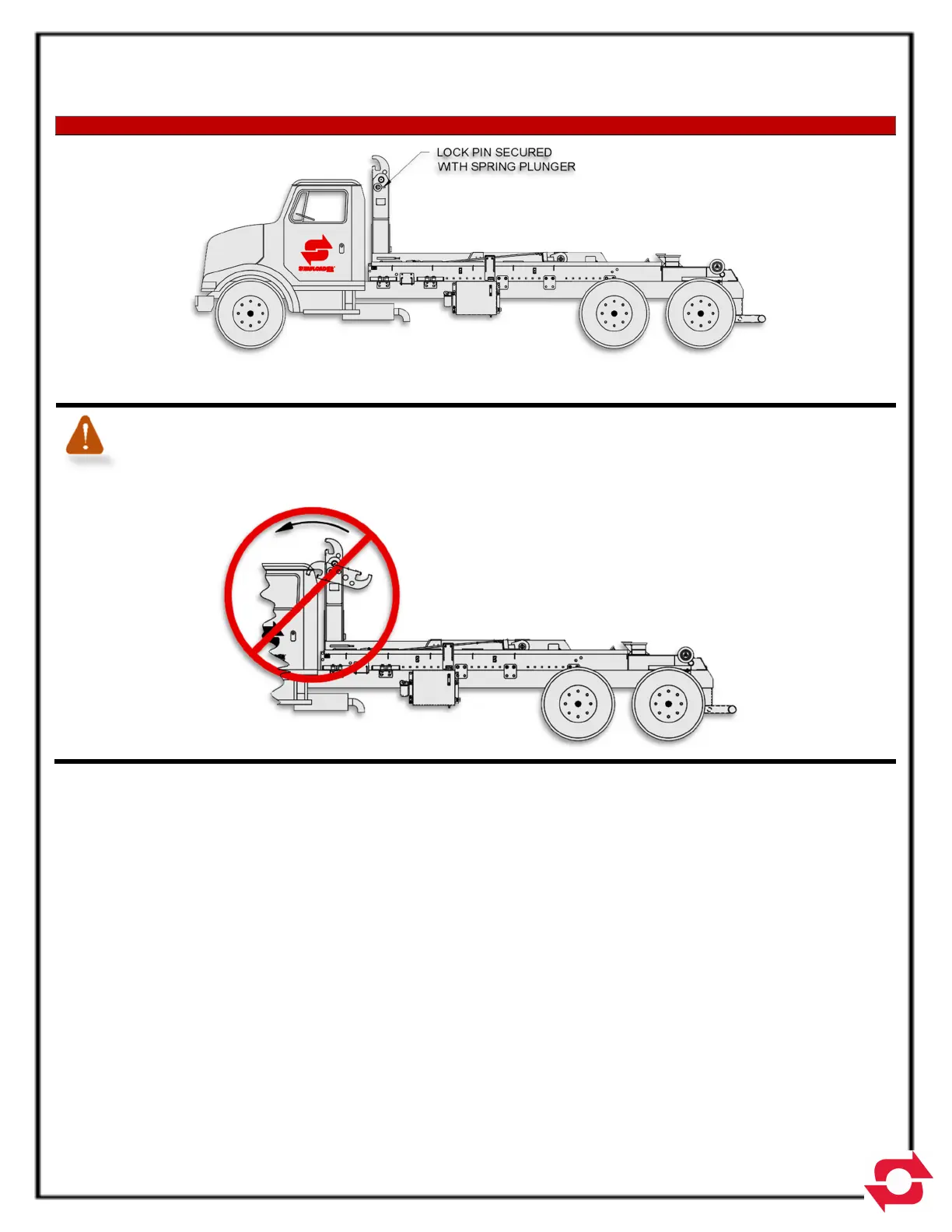

STEP 5. WITH THE TELESCOPIC JIB FULLY EXTENDED IN THE TRANSPORT POSITION (AS SHOWN); PUSH LOCK PIN
BACK IN UNTIL SPRING PLUNGER ENGAGES.
WARNING:
DO NOT REMOVE LOCK PIN ON THE ADJUSTABLE JIB WHILE JIB IS IN THE 62” HOOK POSITION AND
THE TELESCOPIC ARM IN TRANSPORT POSITION (AS SHOWN). POSSIBLE PROPERTY DAMAGE AND/OR
PERSONAL INJURY MAY RESULT.
