swaploader SL-520X - Stabilizer Assembly

VI:Options

6.0.OPT.SL-520X



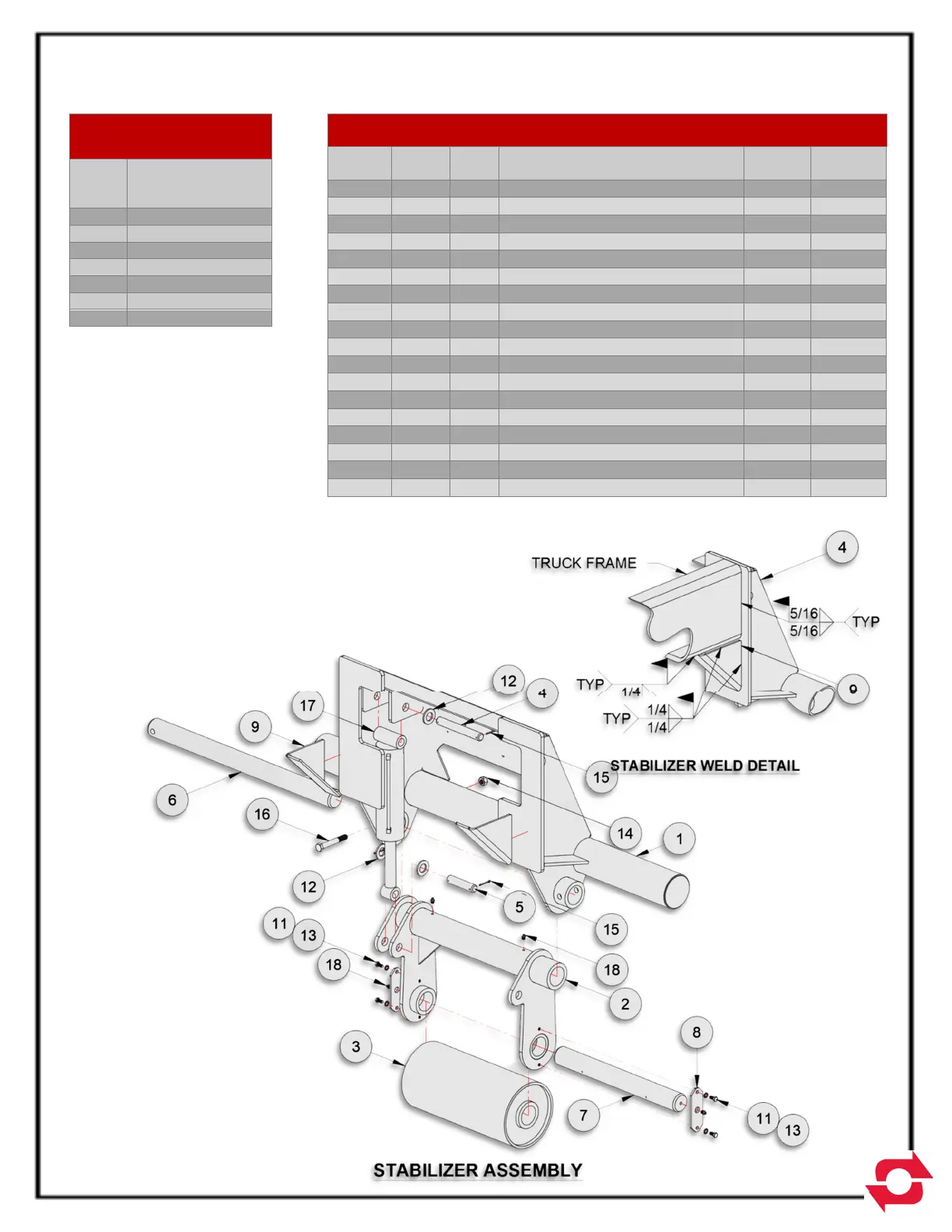

42H62 – STABILIZER ASSEMBLY SL-520X
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-lb/all
1
42H63 1 Stabilizer Mnt Wdmt
229.01 229.01
2
42H64 1 Stabilizer Arm
64.70 64.70
3
42H65 1 Stabilizer Roller Wdmt
78.10 78.10
4
86H65 1 Pin, Stabilizer 1 x 6-3/4
1.60 1.60
5
86H66 1 Pin, Stabilizer 1 x 3-3/4
0.90 0.90
6
86H67 1 Pin, Stabilizer 1 x 32
39.40 39.40
7
86H68 1 Pin, Stabilizer 2-3/8x21-1/4
26.20 26.20
8
86H69 2 End Plate, Stabilizer
0.70 1.40
9
86H70 2 Gusset, Stabilizer
5.45 10.90
*
10
90H83 1 Stabilizer Circuit
21.20 21.20
11
00755 4 Washer, Lock - 3/8 Dia
0.03 0.12
12
00787 4 Washer, Flat - 1 Dia HT
0.19 0.76
13
00P03 4 HHCS 3/8-16 UNC x 3/4 Gr8
0.04 0.16
14
00P55 1 Nut, Lock 5/8-11 UNC Gr8
0.13 0.13
15
00P98 4 Pin, Cotter 5/32 x 1-1/2
0.01 0.04
16
01P39 1 HHCS 5/8-11 UNC x 4-1/2 Gr8
0.49 0.49
17
21P84 1 Hyd Cyl 3x1.375x6
35.00 35.00
18
90P03 4 Zerk, Grease - 1/8 NPT
0.01 0.04
* Item not shown. See Pg. 6-13
HEX HEAD CAP SCREW
TORQUE SPECS
BOLT
SIZE
SAE GR 8
W/ LOCK WASHER
(FT-LBS)
3/8 53
7/16 85
1/2 130
5/8 258
3/4 459
7/8 739
1 1108
Note: Apply Loctite 243 (Blue) to
all bolts.
6-7
