The air handling units can be ordered in the right-hand
version as shown in Fig. 6a or the left-hand version as
shown in Fig. 6b. The air handling units can also consist of
filter and fan only or fan only.
The air handling unit is shown here as a supply air han-
dling unit. If the unit is used as an extract air handling unit,
the components marked with an asterisk change function
and designation (the components are named according to
whether the function is for supply air or extract air).
The arrangement of the components and their desig-
nations
1 OUTDOOR AIR*
(In extract air handling units: Extract air)
2 SUPPLY AIR*
(In extract air handling units: Exhaust air)
3 Supply air fan* with motor and motor control system
(In extract air handling units: Extract air fan with motor and
motor control system)
2.5.6 SILVER C SD separate supply air and extract air handling units, sizes
14-120, with coil heat exchangers

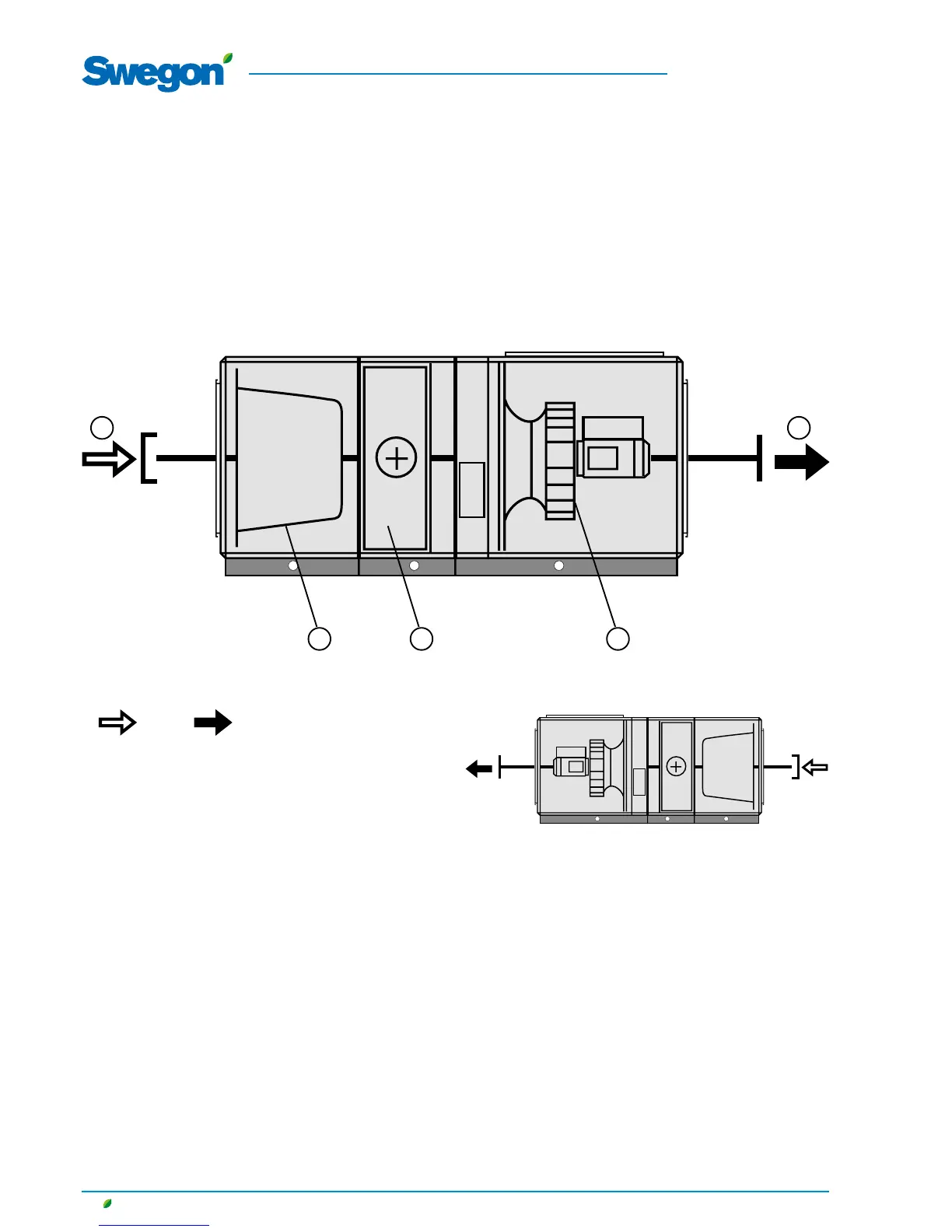

The individual components are each specified below in a simplified and diagrammatical description.
Outdoor air Supply air
Fig. 6a
1 2
345
Fig. 6b
4 Coil heat exchanger, if applicable, supply air*
(In extract air handling units: Coil heat exchanger, extract air)
5 Supply air filter, if applicable*
(In extract air units: Extract air filter)
