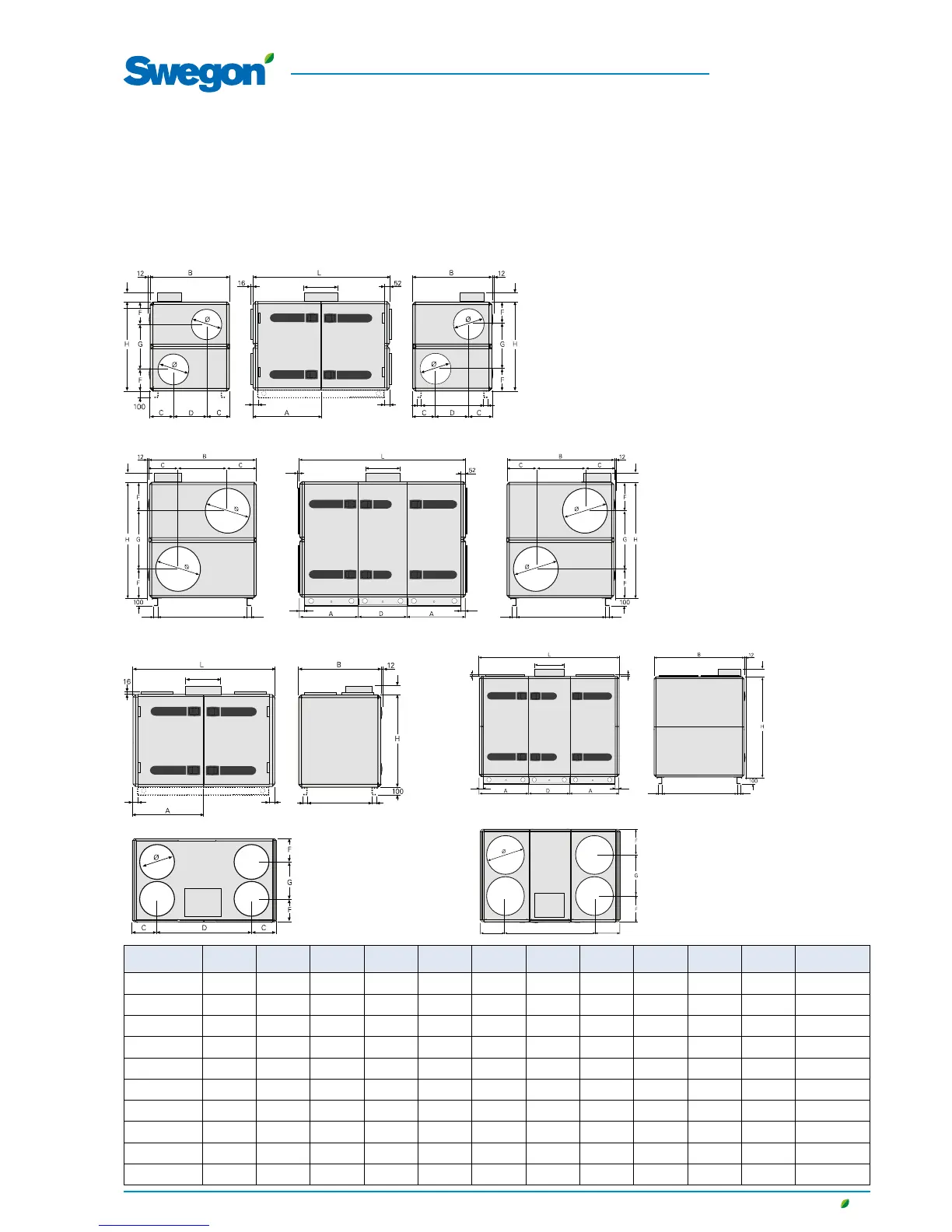

6. Technical data
6.1 Dimensions, SILVER C RX one-piece air handling units with
rotary heat exchanger
SILVER C 04/05, 07/08
SILVER C 11/12
* The air handling unit is supplied without end connection
panel if a duct accessory housed in an insulated casing will
be connected.
* The air handling unit is
supplied without end connec-
tion panel if a duct accessory
housed in an insulated casing
will be connected.
Base beams are optional.
52
50 50
52
16
16
J
CKC
403
108
SILVER
SILVER
SILVER C Top 11/12
Size A B C D F G H J K L Ø Weight, kg
04/05 750 825 240 345 230 460 920 561 – 1500 315
214-243
Top 04/05 750 825 233,5 1033 237,5 350 920 561 – 1500 315
247
07 800 995 277,5 440 271 543 1085 730 – 1600 400 262-301
Top 07 800 995 276 1048 280 435 1085 730 – 1600 400
306
08 800 995 277,5 440 271 543 1085 730 – 1600 400 270-309
Top 08 800 995 276 1048 280 435 1085 730 – 1600 400
310
11 655 1199 324 550 324 647 1295 935 551 1860 500 444-496
Top 11 655 1199 332 550 333 533 1295 935 1196 1860 500 488
12 655 1199 324 550 324 647 1295 935 551 1860 500 466-518
Top 12 655 1199 332 550 333 533 1295 935 1196 1860 500 504
50 50
J
52
52
403
108
SILVER SILVER
SILVER C RX Top 04/05, 07/08
Base beams are optional.
