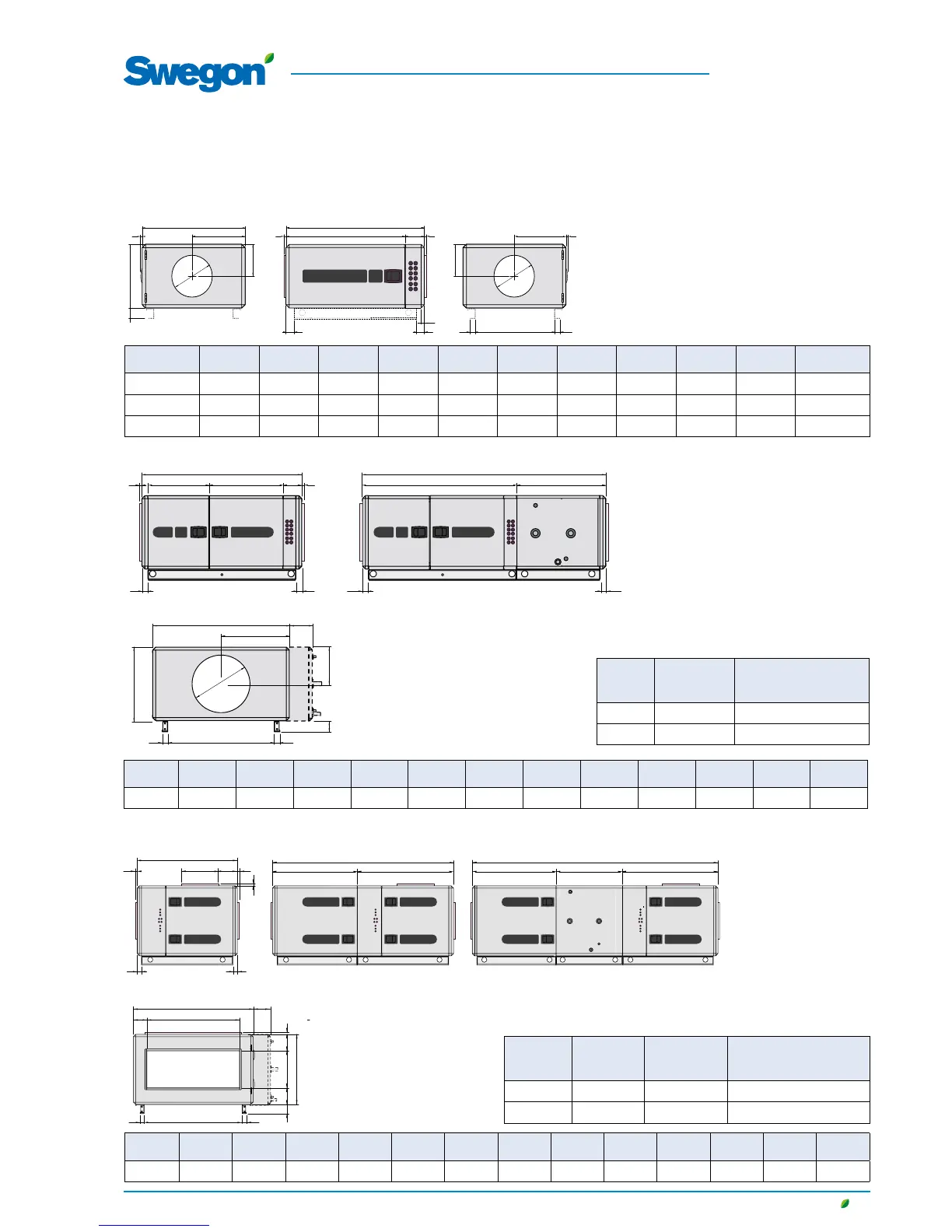

6.4 Dimensions, separate SILVER C SD supply air and extract air
handling units
SILVER C 04/05, 07/08
Size L B H A C D E F G Ø Weight, kg
04/05 1099 825 490 937 162 245 412,5 102 561 315 105-119
07 1174 995 575 1012 162 287,5 497,5 73 730 400 113-133
08 1174 995 575 1012 162 287,5 497,5 73 730 400 117-137
Size L1 L2 B H A D E F G I J Ø
11/12 1404 2092 1199 648 935 740 1352 540 650 599,5 324 500
Size Weight, kg
fan + filter
Weight, kg
fan + filter + coil
11 150-176 321-347
12 161-187 332-358
SILVER C 14/20
Size Weight, kg
fan
Weight, kg
fan + filter
Weight, kg
fan + filter + coil
14 169-188 254-292 450-518
20 187-206 272-310 498-536
Size L1 L2 L3 B H A C D E F G I J
14/20 1040 1875 2615 1400 806 1136 988 740 887 400 1000 200 203
* If a duct accessory housed in an insulated
casing will be connected, the air handling
unit is supplied with an end connection
panel designed for connection to the duct
accessory.
* The air handling unit is supplied
without end connection panel if a duct
accessory housed in an insulated casing
will be connected.
** Width of coil heat exchanger (if
required) = B + 200 mm
Fan
Fan + coil heat exchanger
Fan Fan + filter Fan + filter + coil heat exchanger
* If a duct accessory
housed in an insulated
casing will be con-
nected, the air handling
unit is supplied with an
end connection panel
designed for connection
to the duct accessory.
** Width of coil heat
exchanger (if required)
= B + 200 mm
Base beams are optional.
