Swegon SILVER C RX User Manual

GB.SILVERSK.170901
We reserve the right to alter specifications.
www.swegon.com 5
2.5 The Components of the Air Handling Units
2.5.1 SILVER C RX one-piece air handling units with rotary heat exchanger
The individual components are each specified below in a simplified and diagrammatical description.
SILVER C 04-120: The air handling units can be ordered in
the right-hand version as shown in Fig. 1a or in the left-
hand version as shown in Fig. 1b.
SILVER C 12-120: The air handling unit according to Fig.
1a shows Fan Arrangement1. The unit can also be ordered
according to Fan Arrangement 2. The fans and filters are
then vertically mirror-inverted.
In the left-hand version (Fig. 1b), the components marked
with an asterisk change function and designation (the
components are named according to whether they are for
supply air or extract air).

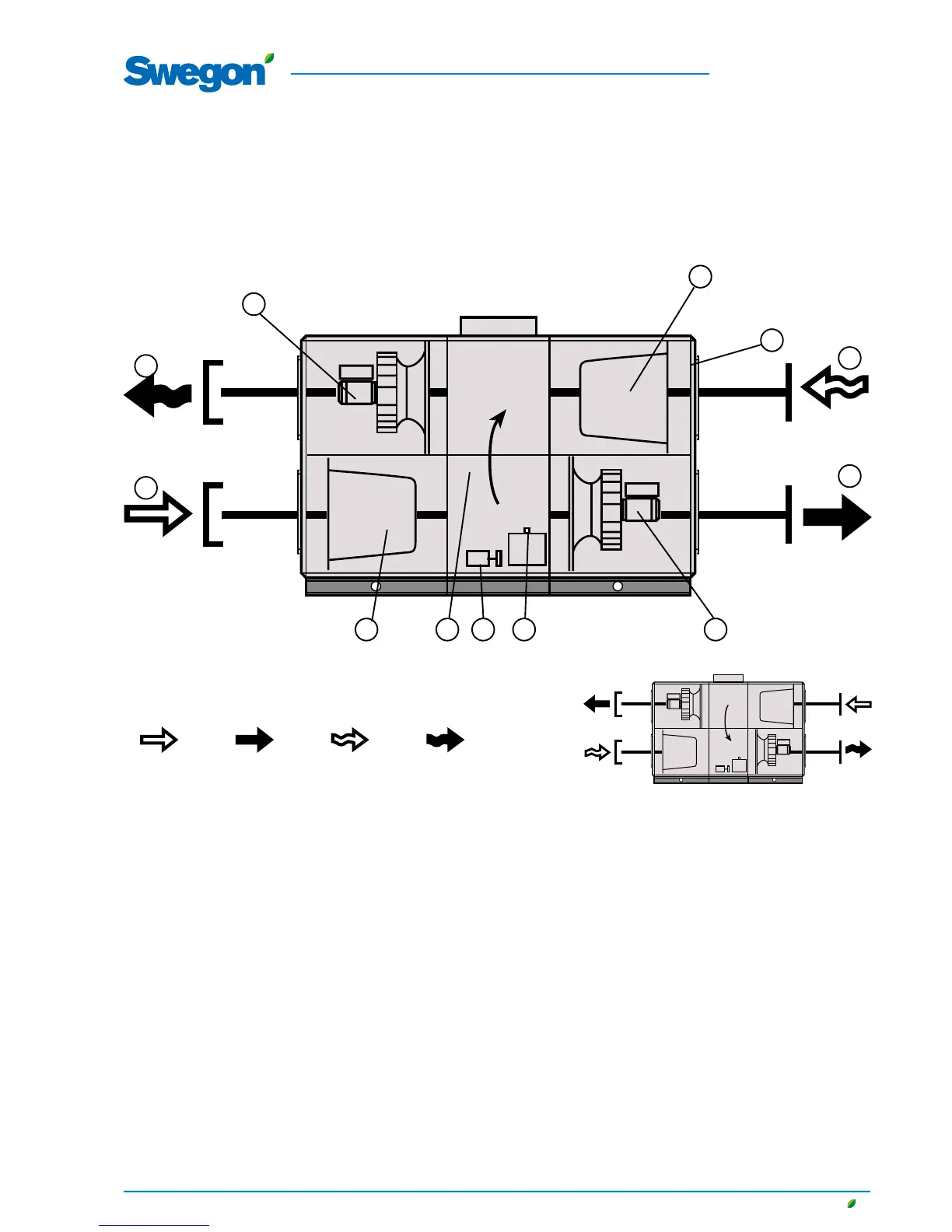

The arrangement of the components and their desig-
nations
1 OUTDOOR AIR* (In left-hand version: Extract air)
2 EXHAUST AIR* (In left-hand version: Supply air)
3 Extract air fan* with motor and motor control system
4 Extract air filter*
5 Commissioning plate (In left-hand unit version - by left-hand
filter section)
6 EXTRACT AIR* (In left-hand version: Outdoor air)
Fig. 1a
Right-hand version
Left-hand version
Fig. 1b
Outdoor air Supply air Extract air Exhaust air
1
2
3
4
5
6
7
9 10 11 128
7 SUPPLY AIR* (In left-hand version: Exhaust air)
8 Supply air filter*
9 Heat exchanger
10 Drive motor in heat exchanger
11 Rotation monitor sensor
12 Supply air fan* with motor and motor control system
